SENNHEISER / 509568

A portable ENG set made by SENNHEISER. You can select 30 channels of B type. It can be used for vocals, instruments, recording, etc. It comes with ME2 omnidirectional lavalier microphone.

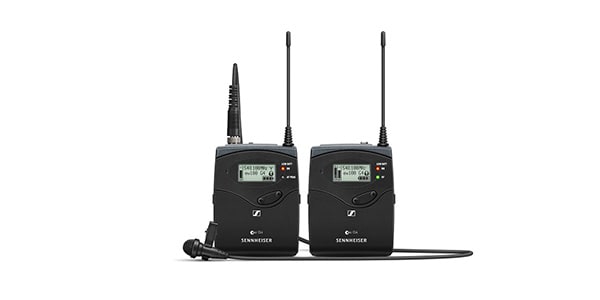

◆Portable ENG set
■Features
- An all-purpose model that can be used for vocals, instruments, and recording
- Portable receiver that can be carried around
- B-type 30ch can be selected
- Up to 8 units can be used simultaneously
- Easy setup with infrared sync between transmitter and receiver
- Equipped with a scan function to avoid radio interference
- Easy-to-use ME 2 omnidirectional lavalier microphone included
- Up to 8 hours of operation with 2 AA alkaline batteries
- Camera shoe mount adapter included
- Plug-on transmitter to make dynamic microphone lines wireless

■Package contents:
EK 100 receiver x 1
SK 100 transmitter x 1
SKP 100 transmitter x 1
ME 2-Ⅱ lavalier microphone x 1
CA 2 camera adapter x 1
CL 1 3.5 mm jack cable x 1
CL 100 XLR conversion cable x 1
6 dry batteries

●Receiver EK 100 G4
Model: EK 100 G4
Modulation: Wideband FM
Frequency range: 806.125-809.750 MHz
Receiving frequencies: 30 frequencies, switched at 125kHz intervals
Receiving method: Adaptive diversity
Intermodulation attenuation: 65 dB or more
Blocking: 70 dB or more
Compander: Sennheiser HDX
Squelch: Low: 5 dBV, Middle: 15 dBμV, High: 25 dBμV
Pilot tone squelch: switchable on/off
Antenna input: -
AF output level (peak deviation, 1kHz): 3.5 mm jack: +11 dBu
AF output adjustment range: 42 dB (adjustable in 6 dB steps)
Signal-to-noise ratio (1mV, peak deviation): 110 dBA or more
Power supply: 2 alkaline batteries or BA 2015 rechargeable battery
Current consumption: 180 mA
Dimensions: approx. 82 x 64 x 24 mm
Weight: approx. 160 g

●Transmitter SK 100 G4
Model: SK 100 G4
Frequency range: 806.125-809.750 MHz
Transmitting frequency: 30 frequencies, switched at 125 kHz intervals
RF output: 10 mW
Compander: Sennheiser HDX
Mute switch: AF/RF mute, disabled, switchable
Remote switch (RMS1) connection: -
Pilot tone squelch: switchable on/off
Input connector: 3.5 mm jack
Input sensitivity adjustment range: 60 dB (adjustable in 3 dB steps)
Signal-to-noise ratio (1 mV, peak deviation): 110 dBA or more
Power supply: 2 1.5 V AA alkaline batteries or BA 2015 Rechargeable battery
Operating time: 8 hours
Dimensions: Approx. 82 x 64 x 24 mm
Weight (including battery): Approx. 160 g

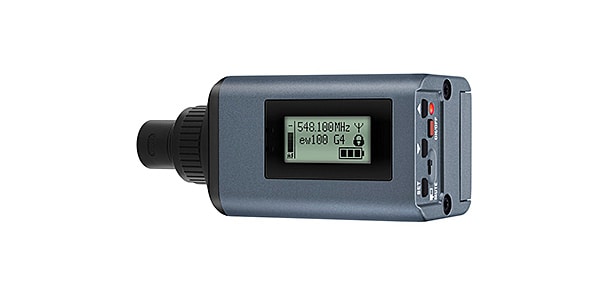

●Transmitter SKP 100 G4
Frequency range: 806.125-809.750 MHz
Transmitting frequency: 30 frequencies, switched at 125 kHz intervals
RF output: 10 mW
Compander: Sennheiser HDX
Mute switch: AF/RF mute, disabled, switchable
Pilot tone squelch: switchable on/off
Input connector: XLR -3F
Input sensitivity adjustment range: 48 dB (adjustable in 3 dB steps)
Signal-to-noise ratio (1 mV, peak deviation): 110 dBA or more
48V phantom power supply: -
Power supply: 2 1.5 V AA alkaline batteries or BA 2015 Rechargeable battery
Operating time: 8 hours
Dimensions: Approx. 105 x 43 x 43 mm
Weight (including battery): Approx. 195 g

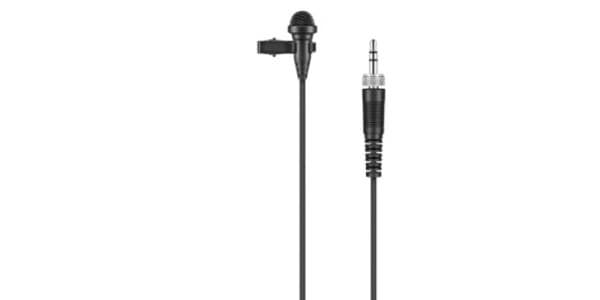

●Lavalier microphone ME 2-Ⅱ
Model number: ME 2-Ⅱ
Transducer principle: Prepolarized condenser
Sensitivity: 20 mV/Pa
Sound pressure level: 130 dB SPL
Pickup pattern: Omnidirectional
Frequency response: 50 - 18,000Hz
Equivalent noise level: 36 dB A-weighted (DIN IEC 651)
Connector: 3.5 mm jack
Cable length: Approx. 1.6 m
Operating voltage: 7.5 V
