SENNHEISER / 509841

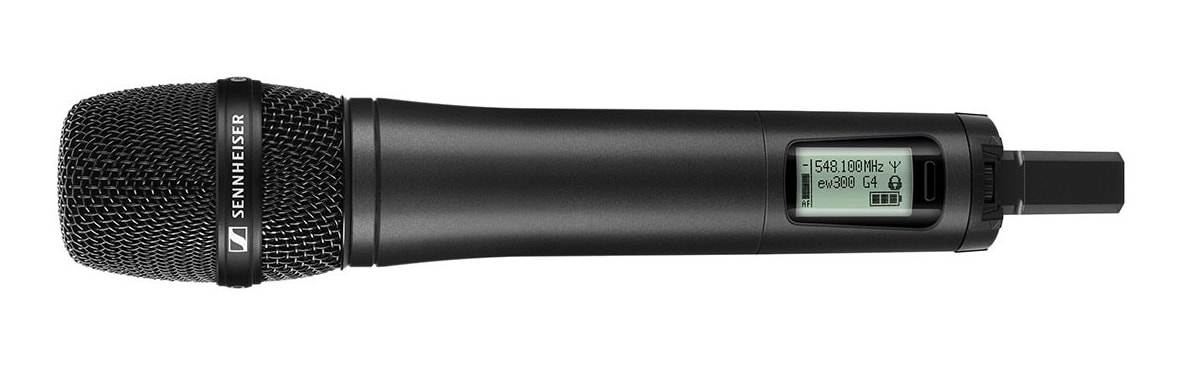

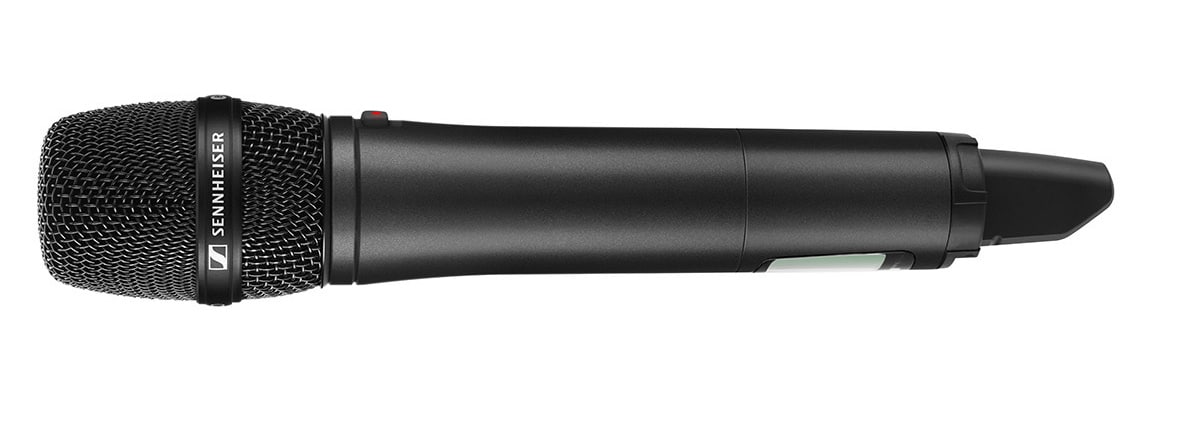

Handheld transmitter for evolution wireless G4 100 series systems. Recommended microphone capsule is e 835. Includes mute switch.

Powerful handheld transmitter with lightweight aluminum housing using the highly acclaimed e 865 capsule (recommended)
Powerful handheld transmitter for evolution wireless G4 300 series systems with lightweight aluminum housing, enhanced bandwidth and transmission power, mute switch, providing outstanding clarity for business and education.

* Head is not included.
■ Main features
- Powerful handheld transmitter with lightweight aluminum housing using the highly acclaimed e 865 capsule (recommended)
- Easy to use and quick to set up
- Integrated network port allows control, monitoring and configuration with SenControl Cockpit and WSM software
- Wide range of products and accessories (microphones, etc.) allow use in any environment.
・Maximum bandwidth of 88 Mhz, up to 32 channels
・Improved RF output power (10/30/50 mW)
・Transmission range: up to 100 meters / 330 feet
・Compatible with wireless speaker system LSP 500 PRO
・RC (remote control) switch available on bodypack transmitter

■Specifications
Frequency band: JB: 806 - 810 MHz
Dimensions: approx. O 50 x 265 mm
Compander system: Sennheiser HDX
Total harmonic distortion (THD): 0.9 %
Weight: approx. 450 g (including battery)
S/N ratio: 115 dBA
RF output power: switchable: low: 10 mW typical, normal: 30 mW typical, high: 50 mW typical
Bandwidth switching: up to 88 MHz
Peak excursion: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: typically 8 h
Modulation method: wideband FM
Power supply: 2 AA batteries (1.5 V) or BA 2015 accupack
Current consumption: at nominal voltage: typically 180 mA
When the transmitter is switched off: less than 25 μA
Power supply 3 V battery / 2.4 V rechargeable battery
Transmission frequency: up to 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each bank with up to 32 factory preset channels, no intermodulation, 6 frequency banks, up to 32 programmable channels
AF transmission range: 80-18,000 Hz
Operating temperature range: -10 °C - +55 °C
Frequency stability: ±15 ppm

■ What is included in the package
SKM 300 G4-S handheld transmitter
MZQ 1 microphone clamp
2 AA batteries
Pouch
Quick guide
Safety instructions
Manufacturer's declaration sheet
