SENNHEISER / 509827

SENNHEISER MMD865 head, handheld, and belt pack 3-piece set. Ideal for meetings, classes, and speeches. Up to 8 units can be used simultaneously. Equipped with a scanning function to avoid radio interference.

◆ Vocal set
Three-piece set including MMD865 head, handheld (transmitting), and belt pack (receiving).

■Features
- For meetings, classes, and speeches. Speech model for facilities

- Professional model that does not compromise on functionality or sound quality

- Half-rack size receiver with B-type 30ch selectable

- Up to 8 units can be used simultaneously

- Easy setup with infrared sync between transmitter and receiver

- Equipped with scan function to avoid radio interference

- Receiver OLED display shows detailed status such as remaining battery level of transmitter

- Receiver headphone monitoring terminal

- Control and monitor multiple systems at once with Control Cockpit software

- Equipped with 865 condenser microphone capsule, ideal for speech

- Handheld transmitter with hand switch

- Lightweight and robust metal housing

- Up to 8 hours of operation with 2 AA alkaline batteries

- Compatible with separately sold BA 2015 rechargeable batteries

■ Package contents:

EM 300-500 receiver x 1

SKM 300-S transmitter x 1

MME 865 microphone capsule x 1

Microphone holder x 1

AC adapter (NT 2-3) x 1

Rod antenna 2
1 GA 3 rack mount kit
2 dry batteries

●Receiver EM 300-500 G4
Model: EM 300-500 G4
Modulation: Wideband FM
Frequency range: 806.125-809.750 MHz
Receiving frequencies: 30 frequencies, switched at 125 kHz intervals
Receiving method: True diversity
Intermodulation attenuation: 70 dB or more
Blocking: 75 dB or more
Compander: Sennheiser HDX
Squelch: 5-25 dBμV (adjustable in 2 dB steps)
Pilot tone squelch: switchable on/off
Antenna input: 2 x BNC connector
AF output level (peak deviation, 1 kHz): 6.3 mm jack: +12 dBu / XLR -3M: +18 dBu
AF output adjustment range: 48 dB (3 dB steps)
Signal-to-noise ratio (1mV, peak deviation): 115 dBA or more
Power supply: 12 V DC
Current consumption: 350 mA
Dimensions: approx. 202 x 212 x 43 mm
Weight: approx. 980 g

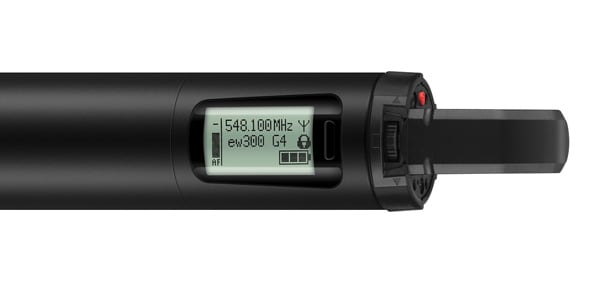

●Transmitter SKM 300 G4-S
Model number: SKM 300 G4-S
Frequency range: 806.125-809.750 MHz
Transmitting frequency: 30 frequencies, switched at 125 kHz intervals
RF output: 10 mW
Compander: Sennheiser HDX
Mute switch: AF/RF mute, PTT, PTM, disabled, switchable
Pilot tone squelch: switchable on/off
Input sensitivity adjustment range: 48 dB (adjustable in 6 dB steps)
Signal-to-noise ratio (1mV, peak deviation): 115 dBA or more
Power supply : 2 1.5 V AA alkaline batteries or BA 2015 rechargeable battery

Operating time: 8 hours (normal)

Dimensions: Approx. ? 50 x 265 mm

Weight (including batteries): Approx. 390 g

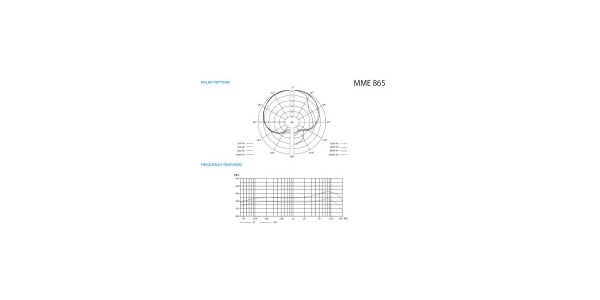

●Microphone head MME 865

Model number: MME 865

Transducer principle: Prepolarized condenser

Sensitivity: 1.6 mV/Pa

Sound pressure level: 152 dB SPL

Pickup pattern: Supercardioid
