SENNHEISER / EW 300 G4-ME2-RC-JB

SENNHEISER製受信機EM 300-500 G4、送信機SK 300 G4-RC、ラベリアマイク ME2-IIの3点セット。B型30chを選択可能なハーフラックサイズ受信機を採用。会議・授業・演説に最適です。最大8台まで同時使用が可能。受信機ヘッドフォンモニタリング端子を搭載しています。

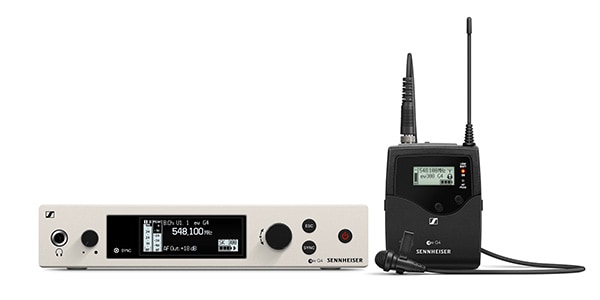

◆ Lavalier set
Lavalier microphone, belt pack (sending/receiving) 1 each 3 piece set.

■ Features
・For meetings, lectures, and speeches. Speech model for equipment
・Professional model that does not compromise on function and sound quality
・Half rack size receiver that can select B type 30ch
・Up to 8 units can be used at the same time
・Easy setup with infrared sink between transmitter and receiver
・Equipped with a scan function to avoid radio wave interference
・The receiver OLED display shows the status such as the battery level of the transmitter in detail.
・Equipped with receiver headphone monitoring terminal
・Batch monitoring and control of multiple systems with Control Cockpit software
・Easy-to-use ME 2 omnidirectional lavalier microphone included
・Up to 8 hours drive with 2 AA alkaline batteries
・Compatible with optional rechargeable battery BA 2015

■ Packing items:
1 EM 300-500 receiver
1 SK 300-RC transmitter
ME 2-II Lavalier Microphone 1
1 AC adapter (NT 2-3)
2 rod antennas
1 GA 3 rack mount kit
2 batteries

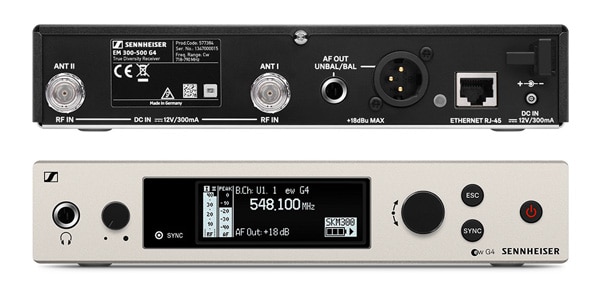

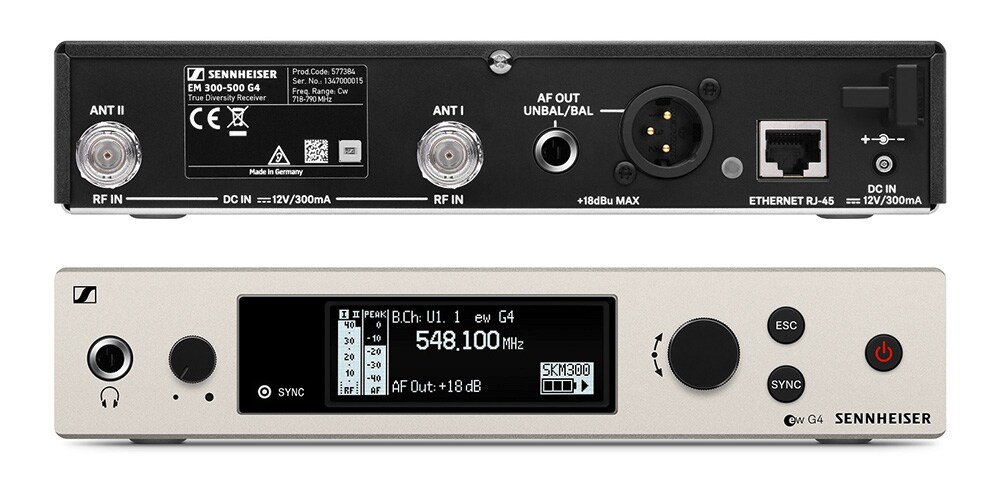

● Receiver EM 300-500 G4
Model: EM 300-500 G4
Modulation: Wideband FM
Frequency range: 806.125? 809.750 MHz
Reception frequency: 30 frequencies, switched at 125kHz intervals
Reception method: True diversity
Intermodulation attenuation: 70 dB or more
Blocking: 75 dB or more
Compander: Sennheiser HDX
Squelch: 5-25 dB μV (adjustable in 2 dB steps)
Pilot tone squelch: switchable on/off
Antenna input: 2 x BNC connector
AF output level (peak deviation, 1kHz): 6.3 mm Jack: +12 dBu/XLR -3M: +18 dBu
AF output adjustment range: 48 dB (adjustable in 3 dB steps)
Signal-to-noise ratio (1 mV, peak deviation): 115 dBA or higher
Power supply: 12 V DC
Current consumption: 350 mA
Dimensions: Approximately 202 x 212 x 43 mm
Weight: Approximately 980 g

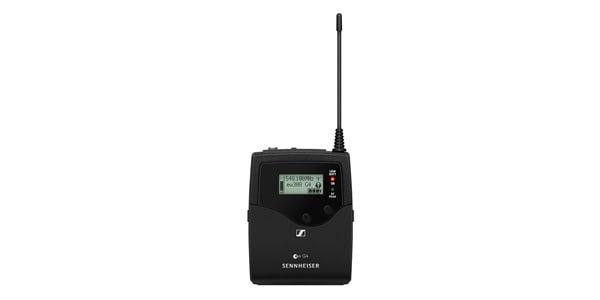

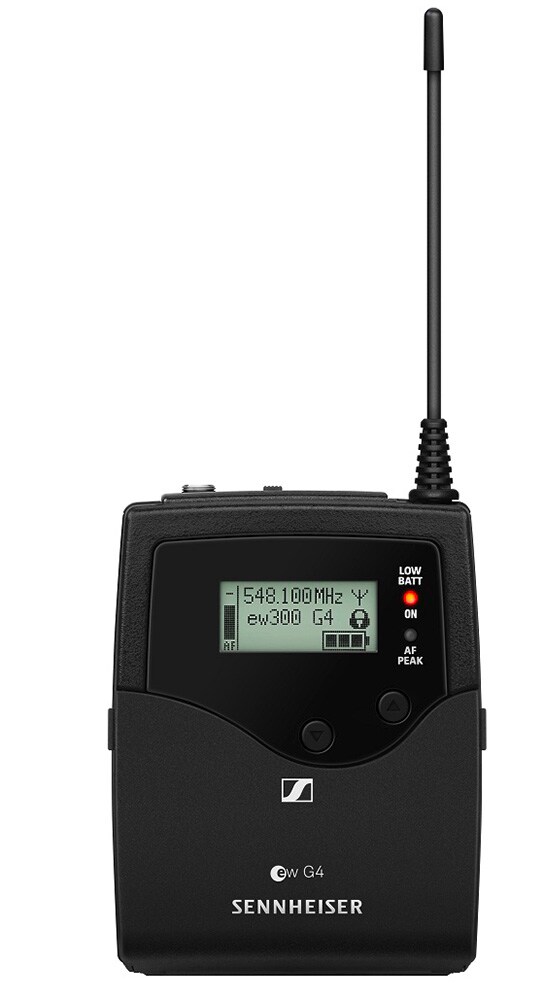

● Transmitter SK 300 G4-RC
Model: SK 300 G4-RC
Frequency range: 806.125? 809.750 MHz
Transmission frequency: 30 frequencies, switched at 125kHz intervals
RF output: 10 mW
Compander: Sennheiser HDX
Mute switch: AF / RF mute, disabled, switchable
Remote switch (RMS1) connection: Supported
Pilot tone squelch: switchable on / off
Input connector: 3.5 mm jack
Input sensitivity adjustment range: 60 dB (adjustable in 3 dB steps)
Signal-to-noise ratio (1 mV, peak deviation): 115 dBA or higher
Power supply: 2 1.5 V AA alkaline batteries or BA 2015 rechargeable battery
Operating time: Usually 8 hours
Dimensions: Approx. 82 x 64 x 24 mm
Mass (including batteries): Approximately 160 g

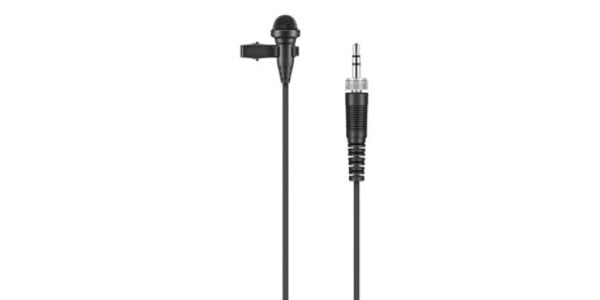

● Lavalier microphone ME2-II
Model: ME 2-II
Transducer Principle: Prepolarized Capacitor
Sensitivity: 20 mV/Pa
Sound pressure level: 130 dB SPL
Pickup pattern: omnidirectional
Frequency characteristics: 50-18,000Hz
Equivalent noise level: 36 dB A-weighted (DIN IEC 651)
Connector: 3.5 mm jack
Cable length: Approximately 1.6 m
Operating voltage: 7.5 V
