SENNHEISER / 509825

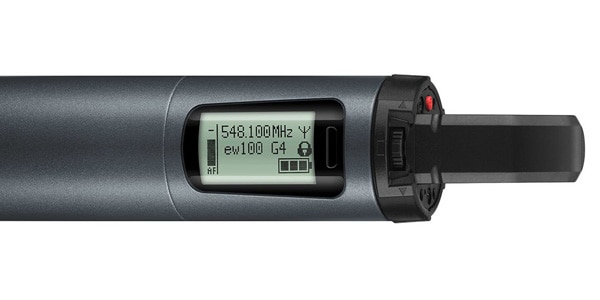

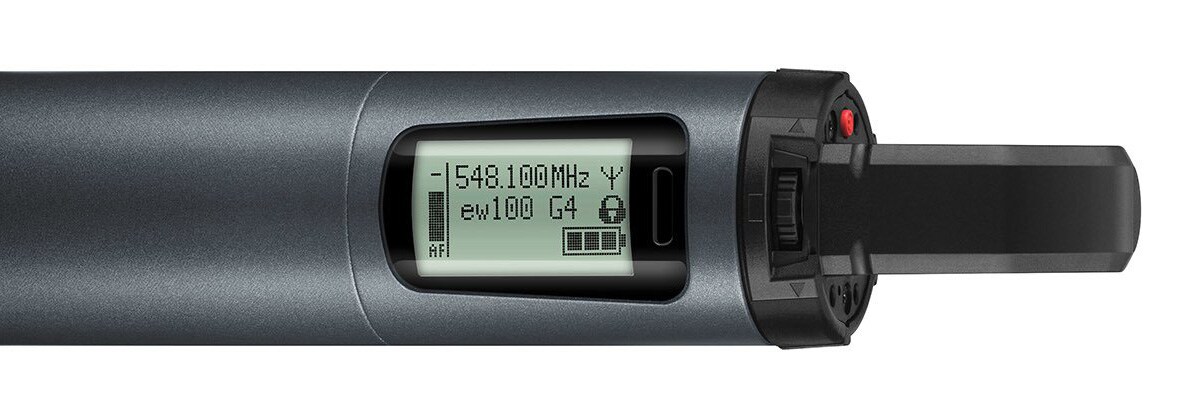

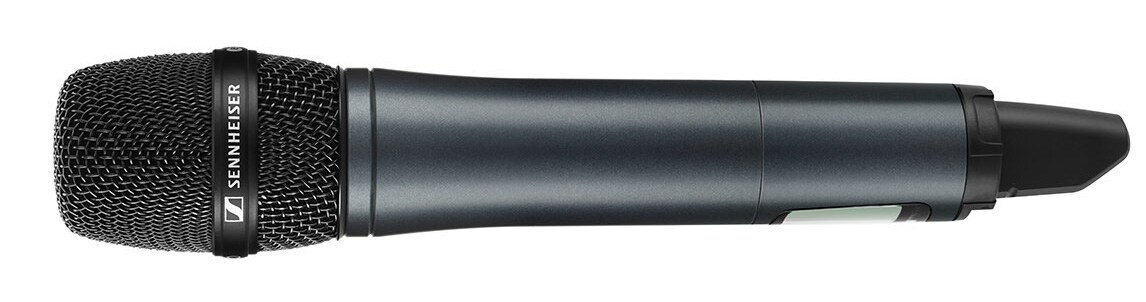

Handheld transmitter for Evolution wireless G4 100 series systems. Fits microphone capsules e 835 / e 845 / e 865 / e 935 / e 945. Up to 8 B-type units can be used simultaneously. No mute switch.

Powerful handheld transmitter integrated into a lightweight aluminum body for evolution wireless G4 100 series systems.
*Microphone head not included.
*Mute switch not included.
Features
- Choose from Sennheiser's popular e 835, e 845, e 865, e 935 and e 945 capsules
- Easy and flexible infrared transmitter-receiver wireless synchronization
- New link function for fast frequency distribution to up to 12 receivers
- Up to 20 compatible channels
- Up to 42 MHz bandwidth (1680 selectable frequencies, fully adjustable in the stable UHF range)
- Transmission range: up to 100 meters / 330 feet
- High RF output power (up to 30mW), depending on national regulations

Specifications
Frequency band: JB: 806 - 810 MHz
Dimensions: approx. φ 50 x 265 mm
Compander system: Sennheiser HDX
Total harmonic distortion (THD): ? 0.9 %
Weight: (including battery) approx. 450 g
S/N ratio: ? 110 dBA
RF output power: max. 30 mW
Bandwidth switching: max. 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: typically 8 h
Modulation method: wideband FM
Power supply: 2 AA batteries (1.5 V) or BA 2015 accupack
Current consumption: typically 180 mA at nominal voltage, with transmitter switched off: less than 25 ?A
Input impedance: 40 kΩ
Max. input voltage: 3 Veff
Power supply: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: up to 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each bank with up to 12 factory preset channels, no intermodulation, 1 frequency bank, up to 12 programmable channels
AF transmission range: 80 - 18,000 Hz
Operating temperature range: -10 °C - +55 °C
Frequency stability: ±15 ppm
