SENNHEISER / 507992

A half-rack size receiver made by SENNHEISER. B-type 30ch is available. Equipped with a scanning function to avoid radio interference. Up to 8 units can be used simultaneously.

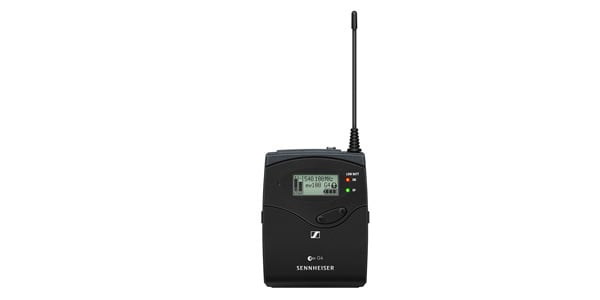

Lightweight camera receiver with aluminum body for evolution wireless G4 series. For audio for interviews and video shooting.

-Equipped with an intuitive OLED display.
-Easy synchronization with transmitter via infrared.
-Up to 8 units can be used simultaneously.
-Reception frequency: 30 frequencies, switching at 125 kHz intervals
-Ethernet connection for Wireless System Manager (WSM) control software for advanced frequency adjustment with multi-channel settings.
-RF output power is fixed at 10 mW.

■Specifications
Frequency range: JB: 806 - 810 MHz
Dimensions: approx. 82 x 64 x 24 mm
Compander system: Sennheiser HDX
Total harmonic distortion (THD + N): ? 0.9 %
Weight (including batteries): approx. 160 g
Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
S/N ratio: ? 110 dBA
Bandwidth switching: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: typically 8 h
Modulation method: wideband FM
Power supply: 2 AA batteries (1.5 V) or BA 2015 accupack
Current consumption: at nominal voltage: typically 180 mA
Receiver switched off: less than 25 ?A
Adjacent channel rejection: ? 65 dB
Intermodulation attenuation: ≤ 65 dB
Power supply: 3V battery/2.4V rechargeable battery
RF sensitivity: < 1.6 μV at 52dBA eff S/N
Squelch: Low: 5 dB?V, Mid: 15 dB?V, High: 25 dB?V
Operating temperature range: -10℃ - +55℃
Receiving principle: Adaptive diversity
Blocking: ≤ 70 dB
