SENNHEISER / EM 100 G4-JB　受信機

SENNHEISER製のワイヤレスレシーバー。受信方式はトゥルーダイバーシティを採用。受信周波数は30周波数、125kHz間隔で切替します。パイロットトーンスケルチはオン/オフの切替ができます。

◆ Receiver EM 100 G4

Model: EM 100 G4
Modulation: Wideband FM
Frequency range: 806.125? 809.750 MHz
Reception frequency: 30 frequencies, switched at 125kHz intervals
Reception method: True diversity
Intermodulation attenuation: 65 dB or more
Blocking: 70 dB or more
Compander: Sennheiser HDX
Squelch: Low: 5 dBV, Middle: 15 dBμV, High: 25 dBμV
Pilot tone squelch: switchable on/off

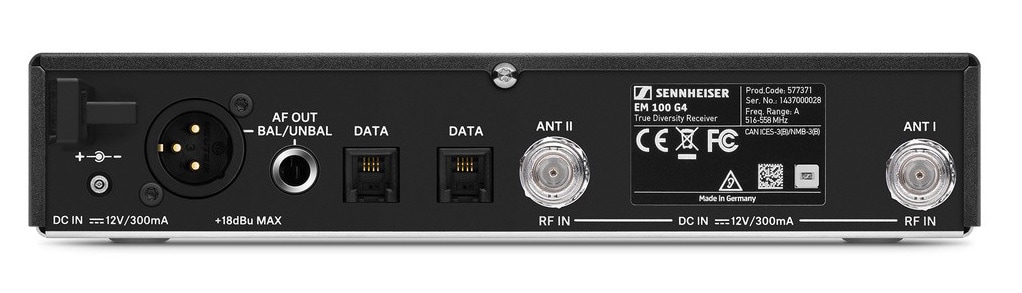

Antenna input: 2 x BNC connector
AF output level (peak deviation, 1kHz): 6.3 mm Jack: +12 dBu/XLR -3M: +18 dBu
AF output adjustment range: 48 dB (adjustable in 3 dB steps)
Signal noise ratio (1 mV, peak deviation): 110 dBA or more
Power supply: 12 V DC
Current consumption: 300 mA
Dimensions: Approximately 190 x 212 x 43 mm
Weight: Approximately 980 g
