RANE / RD-MIX-002

The RANE/DJ Seventy-Two is a two-channel mixer that allows advanced control and performance with Serato DJ software. It features a full-color touch panel, Flex FX that can be used simultaneously with Serato's built-in effects, and eight trigger pads that can trigger multiple functions for the ultimate in expressive performance.

The Rane Seventy-Two redefines the possibilities and conventions of pro, club, and DJ/turntablist DJs.

■DJ Mixer
■2-Channel

■4.3-Inch Color Touch Panel
The Seventy-Two is compatible with the latest Serato DJ software and features a 4.3-inch color touch panel for waveform monitoring, navigation, track selection, and extensive performance fine-tuning.

XY control also allows for control of filters and other effects.

■Flex FX Engine
The Seventy-Two is equipped with two high-performance Flex FX engines. Flex FX can be used simultaneously in combination with Serato DJ's diverse and expressive effects.

Two die-cast aluminum FX toggle switches allow for instant on/off switching of effects. The up and down functions of these toggle switches can also be reversed (always on/on only when held).

■Seamless DJ Changes
The unit is equipped with two USB ports, allowing you to connect a computer and play music simultaneously, enabling seamless set changes even when DJs switch.

■Mag Three Faders
The new, highly tactile and precise ""Mag Three Faders"" allow you to perform scratch performances such as cuts, flares, chaps, clubs, orbits, and transformers. You can also adjust the fader pressure to suit your preferred touch.

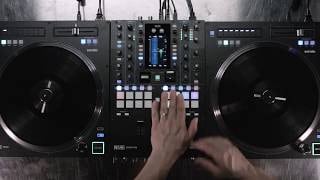

■MPC-Style Performance Pads
The RGB backlit MPC-style pads control multiple performance modes, including cue, pitch play, loop, roll, and sampler, enabling highly expressive performances.

■Serato Pitch 'n Time DJ Plug-in Included
The Seventy-Two includes the Serato Pitch 'n Time DJ expansion plug-in, allowing you to incorporate ""pitch play"" techniques into your mixes.

■Key Features
- Full steel construction: A tough, battle-hardened design
- Three pressure-adjustable MAG THREE faders: Crossfader and channel faders with reverse, fader curve settings, and cut-in functions
- 4.3"" touchscreen for waveform chart navigation, FX control, song selection, and user settings
- Flex FX engine per channel
- Simultaneous use of Serato DJ effect control and internal Flex effects
- Two die-cast aluminum FX toggle switches (reversible top and bottom)
- 11 Flex types, including XY control FX Effects: Echo, Hold Echo, Duck Echo, Reverb, Filter, Phaser, Auto Gate, Flange, Delay, Ping Pong Delay, Beat Breaker

Four Pad FX: Echo, Break, Reverse, Gate

Full control of one or more Serato effects

Microphone Echo

Optional footswitch control

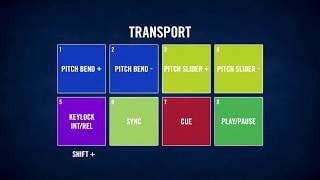

14 Pad Modes: Cue, Pitch Play, Auto Loop, Manual Loop, Roll, Pad FX, Sampler, Fader FX, Flip (requires Serato Flip plug-in), Slicer, Transport, Slicer Loop, Flip, 3 Custom Pad Sets

Two USB ports ensure seamless performance during DJ changes

State-of-the-art sound quality (DA SNR: 114dB) designed by legendary Rane engineers

16 RGB backlit AKAI MPCs Style Pad: Adjustable threshold and aftertouch
- Individual modes for each deck
- Industry first: Assignable Rane TWELVE Battle Controller USB controller
- Two microphones: Neutrik combo jack with on/off, tone, and mic/line switches
- RCA phono and CD outputs on each deck
- RCA session outputs, balanced XLR, main outputs, balanced phono, and booth outputs
- SERATO DJ and DVS compatible: Serato Control Record and Serato Pitch 'n Time plug-ins included

■ Technical Specifications
Digital Audio
Converter: AKM High-Definition Audio; 24-bit PCM, 48 kHz
Digital Signal Processing: 32-bit double-precision floating point
Dynamic Range (A-weighted, unity gain): ADC: 114 dB
DAC: 114 dB
CD Input to Analog Output: 111 dB dB
CD Input to USB Output: 114 dB
USB Input to Analog Output: 114 dB
Inputs
Mic 1/2 (Combo XLR / 1/4"" [6.35 mm] TRS, Mic/Line Switchable): Analog Gain: 30 dB (Mic), 4.75 dB (Line)
Maximum Input: 0.126 Vrms (Mic), 2.3 Vrms (Line)
Gain Trim: Off to +20 dB (unity at center)

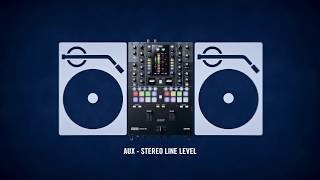

Aux Input 1/2 (RCA Stereo Pair): Maximum Input: 4 Vrms
Dynamic Range (A-weighted): 114 dB
CD/Phono Input 1/2 (RCA Stereo Pair, Switchable): CD: Line
Maximum Input: 4 Vrms
Dynamic Range (A-weighted): 114 dB
Phono: RIAA
RIAA Curve: +0.1/-0.2 dB
Gain (@ 1 kHz): 30 dB
Maximum Input (@ 1 kHz): 126 mV
Session Input (RCA Stereo Pair): Maximum Input: 4 Vrms
Dynamic Range (A-weighted): 114 dB
Output
Main Output (XLR): Frequency Response: 20 Hz to 20 kHz (± 0.2 dB)
Maximum Output: 8 Vrms
THD+N (@ 1 kHz, 4 Vrms): 0.002%
Booth Output (1/4 inch/6.35 mm TRS): Frequency Response: 20 Hz to 20 kHz (± 0.2 dB)
Maximum Output: 8 Vrms
THD+N (@ 1 kHz, 4 Vrms): 0.002%
Session Output (RCA Stereo Pair): Frequency Response: 20 Hz to 20 kHz (± 0.2 dB)
Maximum Output: 4 Vrms
THD+N (@ 1 kHz, 2 Vrms): 0.002%
Headphone Output (1/4""/6.35 mm and 1/8""/3.5 mm TRS): Maximum Output Voltage: 4 V (no load)
THD+N (@ 1 kHz, 2 Vrms): 0.003%
Output Power: 96 mW (50 ohms)
Controls: On/Off, Muting
General
Display: Capacitive multi-touch full-color display
2.1"" x 3.7"" / 54 x 95 mm (W x D)
4.3"" / 109 mm (Diagonal)
Pads: 16 velocity-sensitive multi-color backlit pads (8 per deck, 10 modes each)
Faders: MAG Three adjustable-tension faders (2 channel/line faders, 1 crossfader) x 3
Connectors: 2 XLR outputs (main)
2 1/4"" (6.35mm) TRS outputs (booth)
4 RCA stereo input pairs (deck 1-2)
2 XLR/1/4"" (6.35mm) TRS inputs (mic 1-2)
1 RCA stereo input pair (session)
1 RCA stereo output pair (session)
1 1/4"" (6.35mm) TRS output (headphones)
1 1/8"" (3.5mm) TRS output (headphones)
1 1/4"" (6.35mm) TRS input (footswitch)
2 USB Type-A ports (deck 1-2 USB controller)
2 USB Type-B ports
1 IEC power cable input
Power: Connection: IEC
Voltage: 100-240V, 50/ 60Hz
Power Consumption: 30 W
Dimensions: (W x D x H) 285 x 445 x 105 mm
Weight: 5.6 kg
