NOBUNAGA LABS / NLAUZN

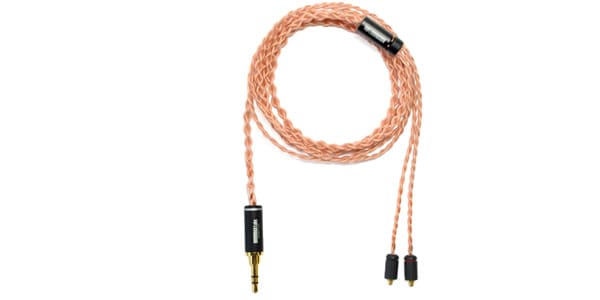

NOBUNAGA LABS Yuzen is a high-quality MMCX cable with excellent transmission capabilities that maximizes the potential of connected audio devices and earphones. It uses high-purity oxygen-free copper wire and is compatible with 3.5mm stereo mini plugs.

■The conductor's positive and negative twist directions are symmetrical, making the flow of electrical signals as smooth as possible. This suppresses the increase in electrical resistance between conductors, enabling the transmission of a wide range of sound from low to high frequencies.

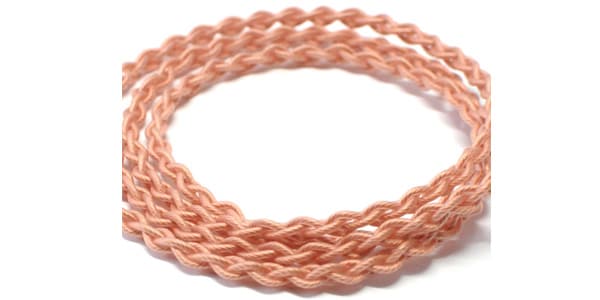

■133 ultra-fine, high-purity, oxygen-free copper strands of 0.06 mm per core are used to reduce conductor resistance and improve electrical conductivity. This achieves a natural, dynamic mid-low range.
■The conductor is perfectly round, dramatically improving the flexibility and durability of the conductor itself. It can transmit signals stably even when bent or exposed to sudden temperature changes.
■Supports balanced connections that maximize the performance of connected devices. By using independent amplifiers for the left and right sides of the player, crosstalk is suppressed to the maximum extent. This enables even more accurate positioning and spatial expression.
■The cables are hand-woven one by one, and the braid pitch of the cables is equalized to achieve an ideal design that does not change the transmission characteristics. By eliminating the solder joint process (joint processing) at the branching part, which causes electrical resistance, the cable's original characteristics are fully demonstrated.

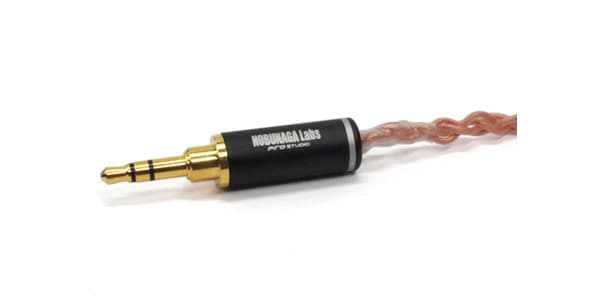

■The 3.5mm stereo mini plug is 24K gold-plated up to the contact part. This provides a stable connection environment and efficient conductivity.
■The shell part is treated with patented super direct touch processing, and the processing that sticks to the hand makes it easy and safe to attach and remove the plug.
■NOBUNAGA Labs' original matte black design emphasizes a simple yet luxurious feel.

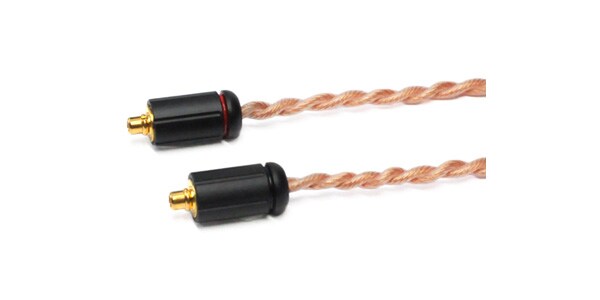

■The mmcx connector part is 24K gold-plated to reduce contact resistance and provide high electrical conductivity. The inside of the shell is molded to minimize problems when attaching and removing.
■The shell part uses NOBUNAGA Labs' original slit design. Black and red lines are printed in the grooves so that they will not fade even after long-term use. (L side is black, R side is red)

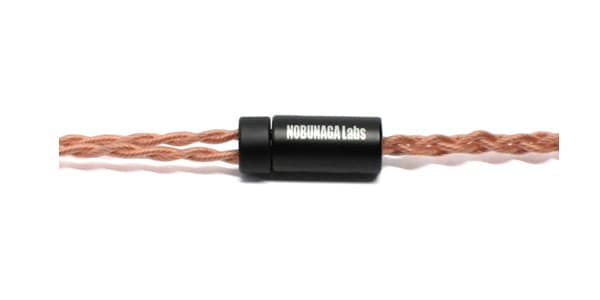

■The Y branch part and cable slider are treated with black aluminum anodizing, emphasizing a simple yet luxurious feel. A cable slider is used to ensure secure attachment even when using on the move.

■ A unique cryo-processing process at -156°C for 72 hours is performed to remove distortion in the molecular arrangement, suppressing electrical resistance and reducing noise and distortion. This enables clear, three-dimensional spatial expression and information-rich sound with an excellent S/N ratio.

■Cable: High-purity oxygen-free copper 4-core
■Cable length: 120cm
■Ear hook: No wire
■Cable slider: With slider
■Plug: 3.5mm 3-pole straight plug (NLP-PRO-TP3.5)
■Earphone side plug: MMCX connector (NLP-MMCX-DIY)
■Impedance: 0.09Ω or less
■Cryo treatment: -156℃/72 hours
■Warranty: 3 months

■MMCX connector side: SHURE/SE215, final/E5000・E4000, JVC/HA-FD01・FD02, SATOLEX/DH303-A1(Tumuri)
*Other operation confirmed list is updated from time to time on the WiseTech website
