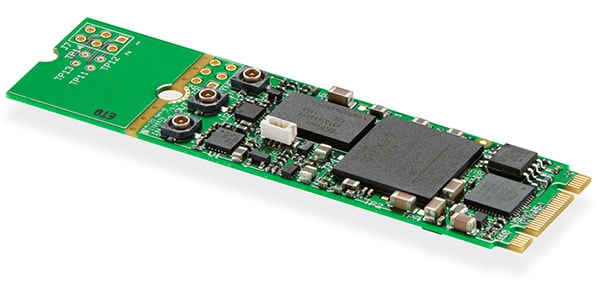

Blackmagic Design / DeckLink SDI Micro

3G-SDI card

■3G-SDI compatible card
■SD video formats: 525i59.94 NTSC, 625i50 PAL
■HD video formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50 , 1080i59.94, 1080i60
■SDI video sampling: 4:2:2, 4:4:4
■SDI color accuracy: 8/10/12-bit RGB 4:4:4 (all formats up to 1080p30), 8/10-bit YUV 4:2:2 (all formats)
■SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, ITU-R BT.601, ITU-R BT.656
