BOSS / WL-T

Transmitter for WL-20 or WL-20L. Can be used as a spare.

BOSS / WL-T

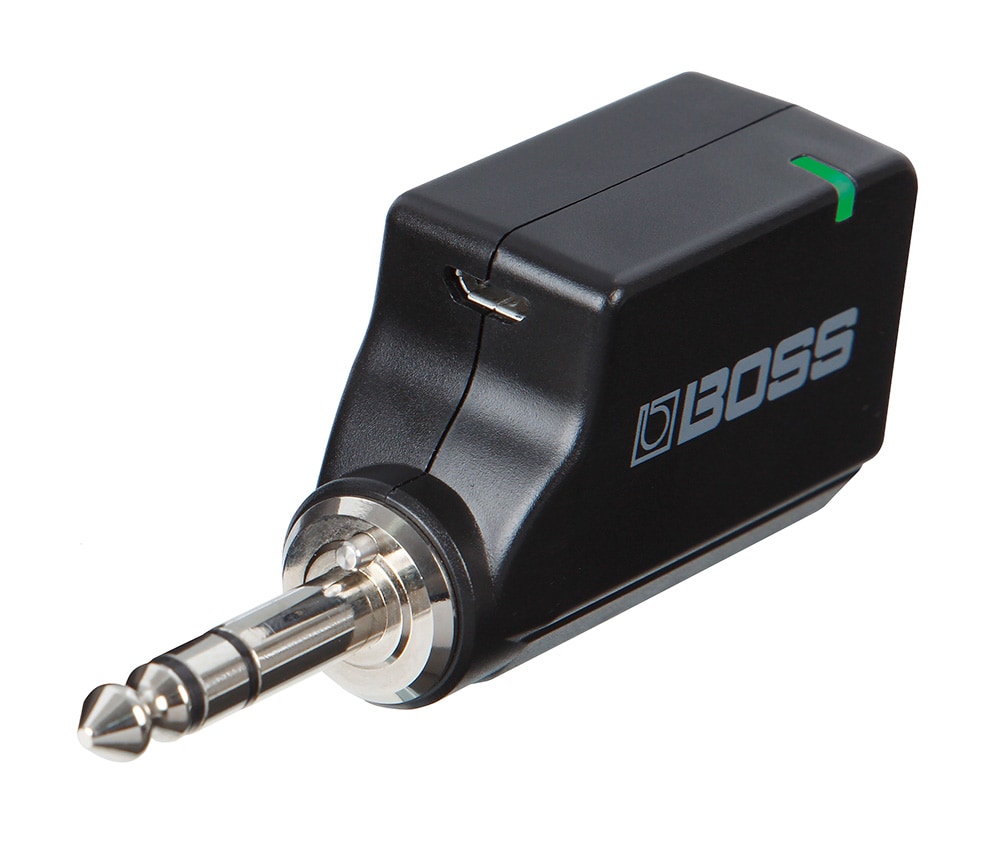

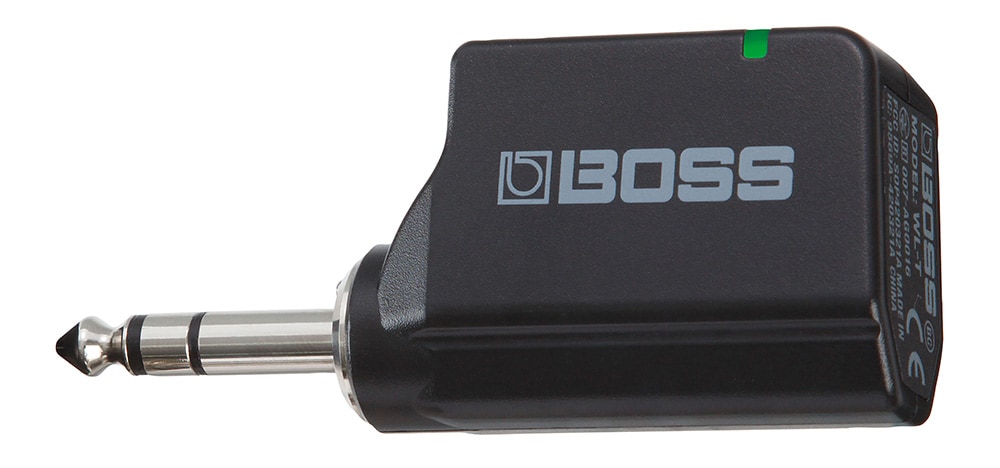

■ Wireless WL series transmitter for guitar/bass
■ Transmitter only
■ Specifications
・ Nominal input level: -10dBu (1MΩ)
・ Indicator: BATTERY
・ Connection terminal Input terminal: TRS standard type
　　　　　　　　　　　　　　 DC IN 5V terminal: USB micro B type
・ Power supply: Rechargeable lithium-ion battery, obtained from DC IN 5V terminal
・ Current consumption: 350mA
・ Battery charging time: Approximately 3 hours
・ Continuous use time: Approximately 12 hours
・ External dimensions: 87 (width) x 22 (depth) x 36 (height) mm
・ Weight: 43g
※ 0dBu = 0.775Vrms

※ Not compatible with the following guitars.

● Specifications are limited for the following types of devices.
・Devices with standard stereo output terminals (standard TRS type)
※ Only the signal from the L side (Tip side) is output.

● Not compatible with the following types of guitars.

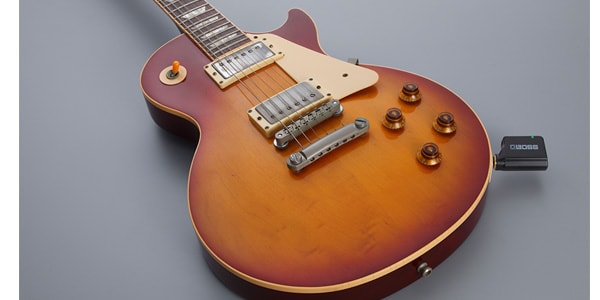

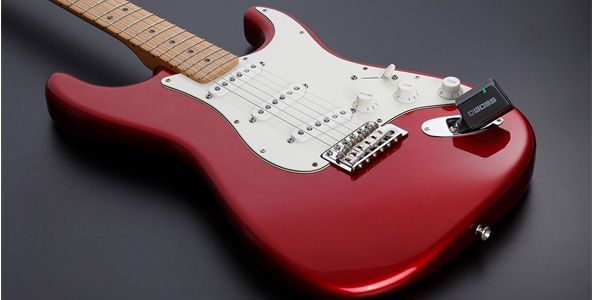

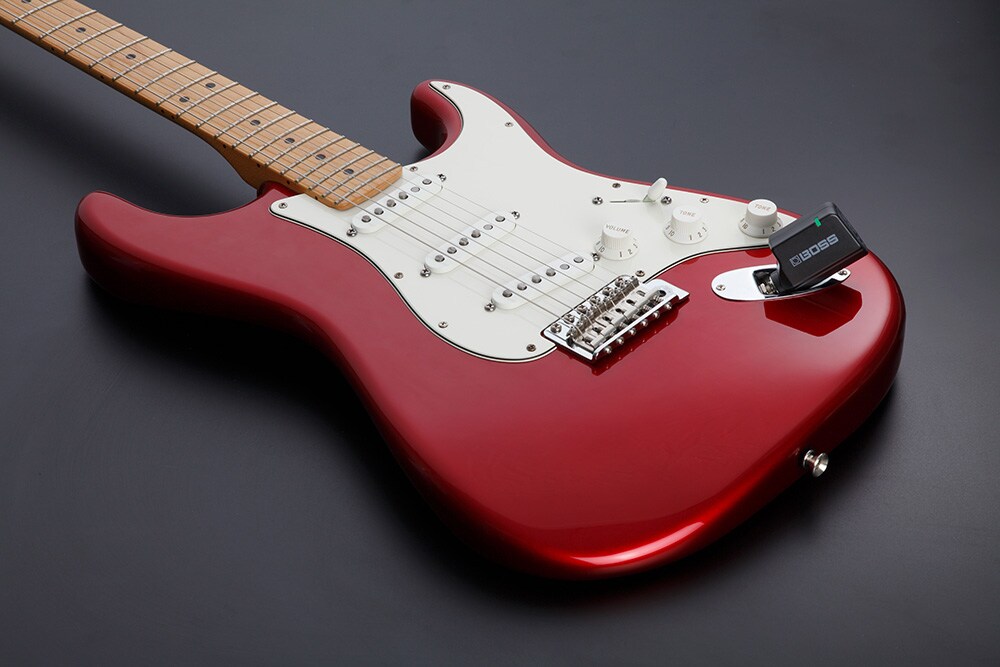

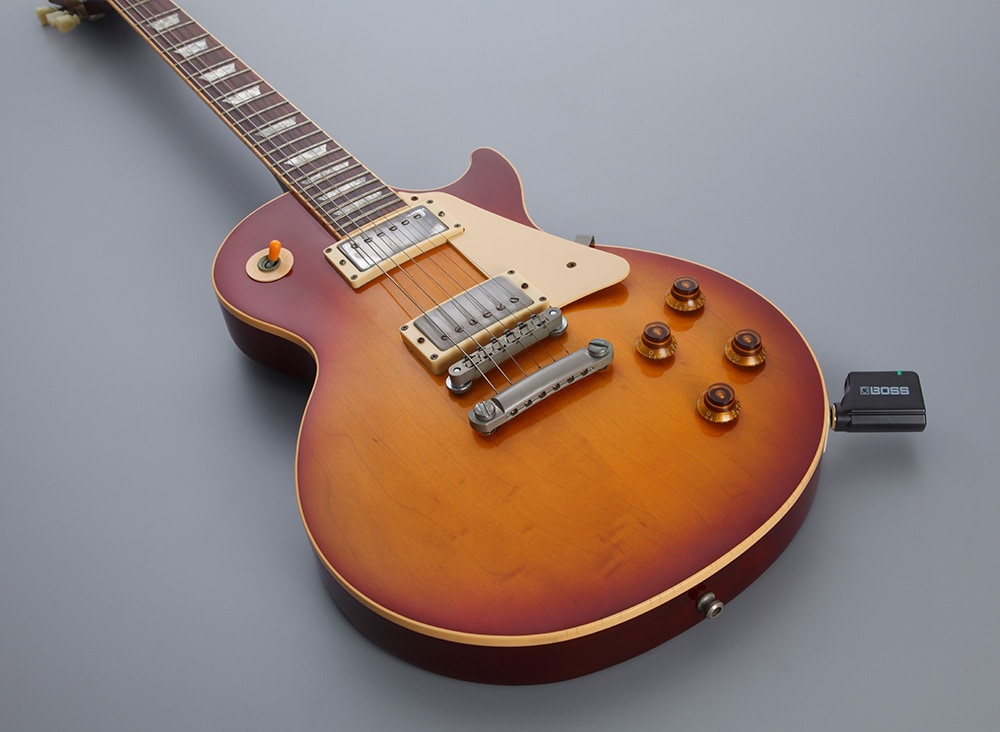

・Guitars that do not have enough space (cylindrical space with a diameter of 18.5 mm and a depth of 5 mm) to attach the transmitter to the mounting jack

・Guitars with special electrical wiring specifications

- Some guitars with active pickups (※1)

- YAMAHA silent guitars (※2)

(※1) In the active circuit of a guitar, the general wiring method for the TRS jack output is Tip = audio, Sleeve = ground, and Ring is for battery ground. In rare cases, there are guitars where the Ring and Sleeve are wired in reverse, in which case the active circuit of the guitar will not work properly.

(※2) It will not work due to the electrical wiring specifications.
