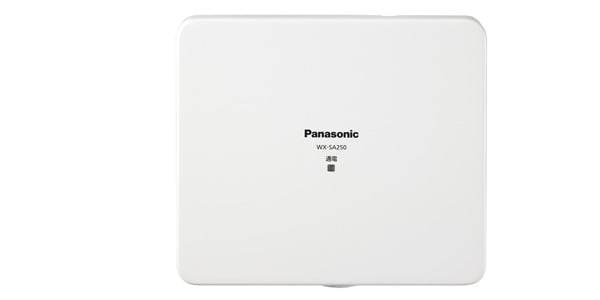

PANASONIC / WX-SA250

Wireless antenna for the 1.9GHz digital wireless microphone system, X-SR200A series. Diversity reception method is used. Can be attached to ceilings, walls, and microphone stands. Suitable for outdoor installation, and can be installed under the eaves where it is not exposed to direct rain.

■Wireless antenna
■Frequency: 1895.616 MHz to 1904.256 MHz
■Power supply: Connector (RJ-45) Cable used (CAT5/CAT5e/CAT6 straight cable) Power supply source (wireless receiver (WX-SR202, WX-SR204) antenna power supply unit (WX-SA001))
■Wireless: Antenna (built-in antenna), reception method (diversity reception)
■Microphone reception: 16 channels
■Antenna field selection: 3-step switching (set with wireless receiver (WX-SR202, WX-SR204), operation support software, or antenna power supply unit (WX-SA001))
■Weight: Approximately 400 g
■Dimensions: Approximately 185 mm (width) x 160 mm (height) x 32 mm (depth)
■Finish: SA resin sail white (approximate color of Munsell N9.3)
■Ambient temperature during use: -10 ℃ to +50 ℃
■Installation: Ceiling, wall mount, microphone stand
Waterproof performance: JIS protection class 4 (splash-proof)
■Accessories: Instruction manual, ceiling mounting bracket, ceiling mounting screw (M4 x 35 mm), wood screw (4.1 mm x 25 mm), conversion screw (PF1/2 → W3/8), warranty, fixing bracket, main body mounting screw (M3 x 8 mm), cable tie
