DPA / 4099-DC-1-101-U

The d:vote CORE4099 series is a brushed-up version of the d:vote4099 series. It is a highly sensitive condenser microphone. DPA's unique CORE technology reduces distortion. It delivers clear and detailed sound. As with previous models, a wireless conversion adapter is available to support wireless systems from various manufacturers. Comes with the UC4099 microphone clip for woodwind instruments. It uses a hook-and-loop fastener to fit instruments of various shapes.

■Woodwind instrument set

Set contents

●4099-DC-1 (high sensitivity microphone) x 1
Specifications
■Directivity: Supercardioid
■Cartridge: Prepolarized condenser type
■Frequency response: 80Hz-15kHz (2dB soft boost @ 10 to 12kHz)
■Sensitivity (±3dB): -44dB re 1V/Pa
■Equivalent noise level (A-weighted): 23dB SPL
■Total harmonic distortion (THD): 1% or less (131dB SPL, peak)
■Dynamic range (typical): 108dB
■Maximum sound pressure level: 142dB
■Output impedance: MicroDot: 30 to 40 Ω, DAD6001 or DAD4099: 100 Ω
■Cable extension distance: Maximum 300m (when using DAD6001 or DAD4099)
■Power supply: Phantom DC48V ± 4V (when using DAD4099, DAD6001), DC5 to 50V (when using wireless adapter)
■Connector: MicroDot
■Size: φ 5.4 × 45mm
■Weight: 27g
■Color: Black
■Cable length: 1.8m
■Gooseneck length: 140mm

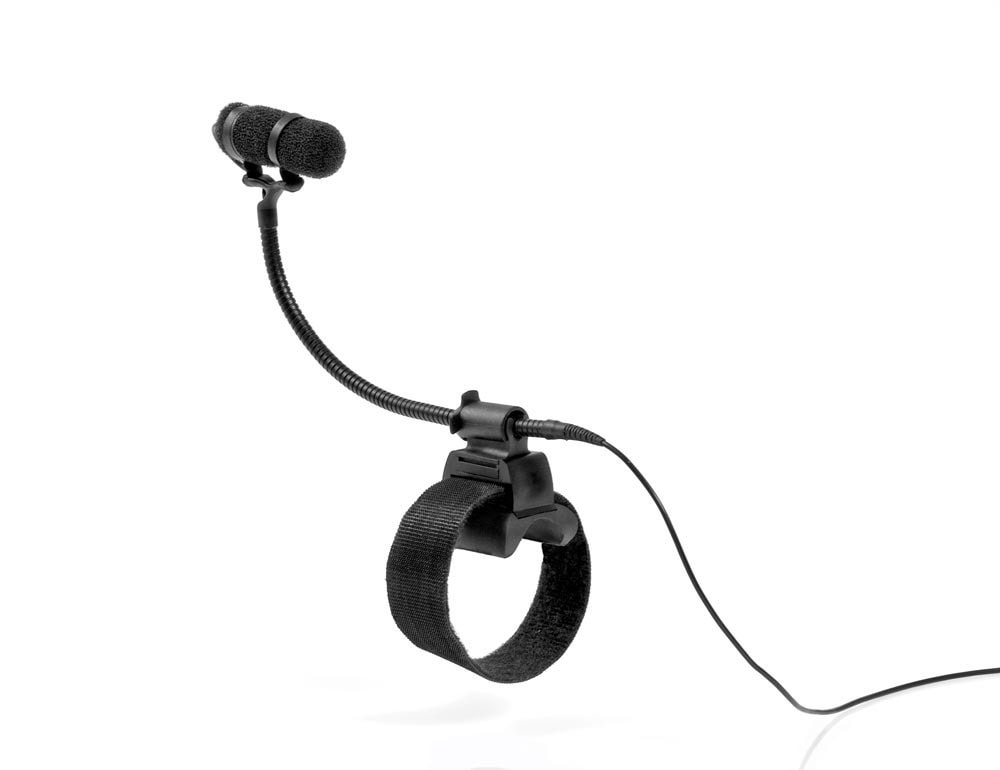

●UC4099 (woodwind instrument clip) × 1
●DAD6001-BC (conversion adapter) × 1
●CM1618B00 (1.8m standard cable) × 1
●Carrying case
