CLASSIC PRO / MR-24VL (MR-24+ACT-24TC)

The CWS24VL is a wireless system for violin. It can be used by attaching the included microphone to the transmitter. This wireless set has a wide dynamic range and excellent frequency characteristics that are unique to digital, and can reproduce the delicate nuances created by the player without any loss.

The CWS24 series is a wireless system for instruments that allows guitarists and bassists to perform on stage without being tied down by cables. The receiver is made of sturdy metal that can withstand harsh environments such as tours. Its compact design allows it to be incorporated into a pedal board. The LCD screen is backlit and easy to see, so it can be checked even in the dark.

■Features
-License-free 2.4GHz band
-One-touch channel setting that allows you to transfer receiver settings to the transmitter by simply pressing the ACT button
-Up to 8 systems can be operated simultaneously in the same space
-True diversity method achieves stable reception.
-The receiver is equipped with a large, easy-to-read LCD display. Made of sturdy metal.
-Compact design allows it to be incorporated into a pedal board
-Built-in antenna
-Compatible with 9-12V and both center positive and negative polarity, even with adapters other than the one included
-Equipped with a balanced XLR output. Can be connected directly to a PA system.
-Equipped with a micro SD slot for firmware updates.・Equipped with cable tone function (0 - 30m)
・Includes a microphone that can be attached directly to stringed instruments such as violins (with clip)

■Specifications
・CWR24 (Receiver)
Transmitting frequency: 2.4HGHz
Frequency response: 20-20KHz
Audio sampling: 24-bit / 44.1 kHz Rate
Frequency stability: ±0.005%
THD: > 0.1%, @ 1 kHz
Latency: 3.9ms
Sensitivity: -95 dBm
Signal-to-noise ratio: 118 dB(A)
Output level: -10 to +20 dB
Output terminals: XLR & 6.3 mm (1/4 "") x 3
Antenna: Built-in
Usage environment: -10 to +60℃
Adapter: 9-12V DC / 300mA
Dimensions: 110 x 50 x 130mm / 850g

・CWT240 (Instrument transmitter)
Transmission frequency: 2.4Ghz ISM band
Bandwidth: 83Mhz
Channel setting: ACT Sync
Dimensions: 68 x 287 x 47 mm
Weight: 104g

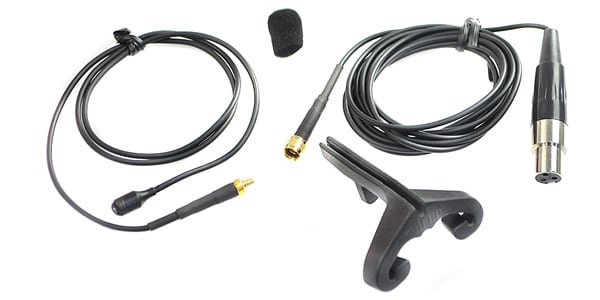

Set contents: Receiver (CWR-24), instrument transmitter (CWT240), dedicated microphone (CWAVM), transmitter connection cable, windscreen, microphone mounting bracket, battery charger (BC1), lithium battery for transmitter (ICR18500), adapter (1 each for receiver and battery charger)
