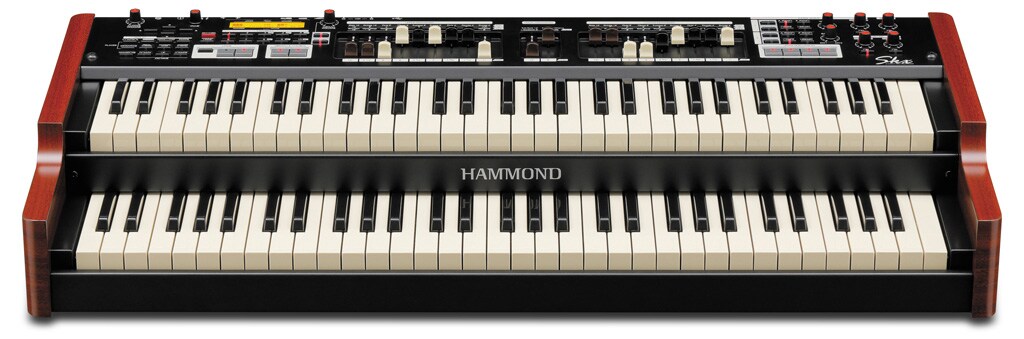

HAMMOND / SKX

Equipped with three sets of drawbars, the SKX is a portable, full-fledged stage keyboard that combines traditional organ style with Leslie rotary sounds in a compact body!

◎Equipped with Three Sets of Drawbars
Many organists desire a physically controlled, independent drawbar set for the Upper/Lower/Pedal. The SKX's three sets of drawbars provide the same feel as a traditional classic Hammond organ, allowing you to recreate its style and playing technique. Furthermore, while vintage organ sets, including Leslies, can weigh over 200 kg, the SKX's lightweight 17 kg body features simulated rotary sound*. The SKX is easily portable and allows you to showcase authentic organ sounds anywhere.
*A separate amplifier and speaker are required for performance. ◎Two Independent Extra Voice Sections
The SKX features two separate Extra Voice sections. This allows you to assign different tones to the Upper and Lower keyboards, or layer two different tones on either keyboard. This allows you to maximize the potential of dual keyboards, whether you're using strings with the left hand and piano with the right hand for pop, or piano and brass for blues. In addition, the balance between each tone can be flexibly controlled with the MIX BALANCE knob, and the overall volume balance of the extra voices can be flexibly controlled with the VOLUME knob.
◎Even easier to use and understand. Usability has been further improved.
The SKX can be easily transported and prepared for each environment, whether at home, at a live performance, or on stage. Your favorites can be assigned to the 100 favorite buttons on the control panel from the 100 user patches and preset patches, allowing you to recall them with a single touch. Furthermore, the bank function allows you to register and recall up to 100 patches with simple operations. The storage space for the tone library, which can be downloaded from the website, has also been expanded, making it possible to add even more tones.
■Keyboard: 61 keys x 2
■Power Consumption: AC Adapter (12V) 10W
■Sound Source
[Organ Section] VASE III Sound Source x 2 (Digital Tone Wheel, Transistor Organ, Pipe Organ)
Manuals (excluding Pipe Organ): 61 polyphony
Pedalboard (excluding Pipe Organ): 8 polyphony
Pipe Organ: 63 polyphony
[Extra Voice Section] VASE III Sound Source: 63 polyphony
■Organ Section
[Drawbars] 9 upper rows, 9 lower rows, 2 pedal rows
[Organ Type] Manuals: 6 (B-Type1, B-Type2, Mellow, Vx, Farf, Pipe)
Pedalboard: 7 (Normal, Muted, Synth1, Synth2, Finger, Pick, Slap)
[Percussion] Buttons: On, Volume Soft, Decay Fast, Third Harmony Nick
[Controls] Upper On, Lower On
■Extra Voice
[Number of Sections] Manual: 2 sections
[Instruments] 6 groups (A.Piano, E.Piano, Keyboard, Wind, Other, Library) Library only can be upgraded
[Controls] Upper On, Lower On
■Effects
[Vibrato & Chorus] Button: Upper On, Lower On
[Overdrive] Digital: 4 Programs
Control: On, Amount
[Multi-Effects]: 8 Programs (Organ/Extra Voice Independent)
Control: On, Amount
[Equalizer]: Organ: Bass, Mid (Sweep), Treble, Tone
Extra Voice: Bass, Mid (Sweep), Treble
[Built-in Leslie]: 2 Rotors, Digital Leslie
Buttons: Bypass, Stop, Fast
[Reverb]: 11 Digital Programs
Control: On, Depth
[Master Equalizer]: 11 Controls
Control: Bass, Mid, Treble
■Key Map
[Buttons]: Manual Bass, Lower to Pedal, Octave Up, Octave Down, Lower, Transpose
■Patch
[Capacity]: 100 User Patches, 100 Preset Patches, Manual
[Favorites]: 10 Banks, 10 Numbers
[Patch Load]: Drawbar Registration, Drawbar Parameters, Extra Voice, Internal Zone, External Zone, Organ Effects, Animation, Extra Effects, Reverb
■Controllers
[Volume] Master Volume, Organ Volume, Extra Voice Volume, Extra Voice Balance
[Switches] Power On/Off
■Music Player
[File Format]
WAV (44.1kHz, 16-bit, Stereo)
MP3 (44.1kHz, 128kbps, Stereo)
■Storage: USB Flash Drive
■Display: 20 characters x 2 lines
■MID
[Templates] 4 templates
[External Zones] 3 zones, assignable keyboard
■External Connectors
[MIDI] IN/OUT
[Audio] Line Out L, R, Headphones
[Leslie] 11-pin, 1 or 3 channel compatible
[Other] Footswitch, Damper Pedal, EXP Pedal, DC IN (12V)
■Dimensions: W94.4 x D45.4 x H17cm
■Weight: 16.9kg
■Accessories: AC adapter (AD3-1250-2P) AC100-240V 50/60Hz
