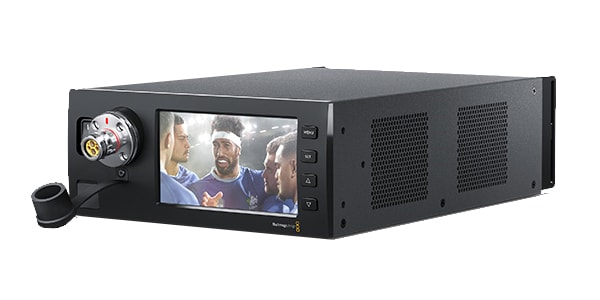

Blackmagic Design / Blackmagic Studio Fiber Converter

Cameras up to 2 km away can be remotely controlled from studios or field vehicles using SMPTE fiber cables.

■ Studio Fiber Converter

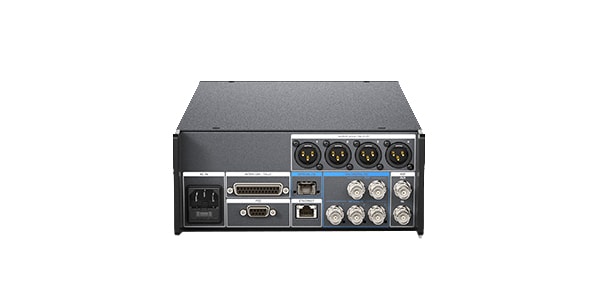

Connections:
■ Optical fiber input: SMPTE hybrid optical fiber (SMPTE 304 female connector) x1
■ SDI video input: 12G-SDI return feed (program, camera control, tally, genlock, intercom with return 1) x3
■ SDI video output: Up to 60p SD/HD/Ultra HD compatible 12G-SDI x2
■ Talkback audio: SDI channels 15 and 16 (production), analog input/output via 25-pin connector (production/engineer)
■ Balanced XLR audio output: 4x analog audio output for camera
■ Optical fiber output: Optical I/O (via 10 Gb-E) x1 (currently not supported)
■ Computer interface: USB-C x1
■ Size: 210.3(W)x88.4(H)x371.9(D) 2.8kg
*Power cable is sold separately.
