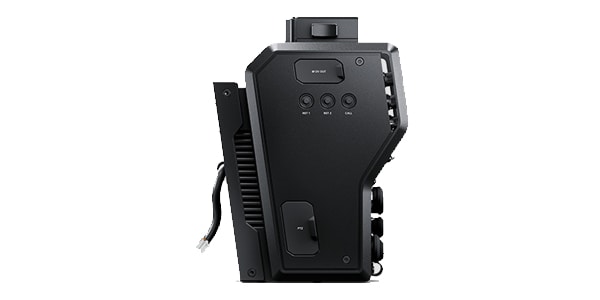

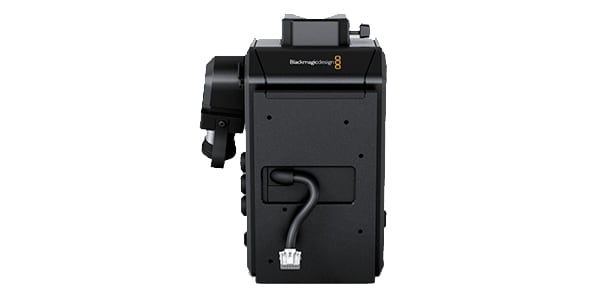

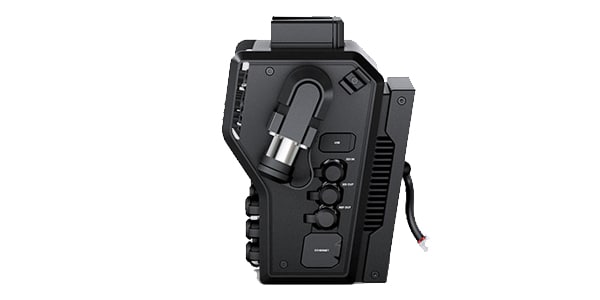

Blackmagic Design / Blackmagic Camera Fiber Converter

Camera Fiber Converter

■ Fiber converter for camera
Connections:
■ Optical fiber input: SMPTE hybrid optical fiber (SMPTE 304 male connector) x1
■ SDI video input: 12G-SDI x1 (camera feed)
■ SDI video output: 3G-SDI x1 (camera return feed), 3G-SDI x3 (return SDI output)
■ Talkback audio: 5-pin XLR x2 for 3-Way audio mixer compatible headset for each output, tracker output x1
■ Analog audio input: AES, 3 pin XLR input x2 for line/mic. Supports phantom power
■ Computer interface: USB-C connector x1
format
■ HD video format: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
■ Ultra HD video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60
■ SDI standard: SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M
■ Audio sampling: TV standard sample rate (48kHz/24bit A/D conversion)
■ Video sampling: 4:2:2
■ Color accuracy: 10-bit
■ Color space: REC 709, REC 2020
■ Supported multi-rate: SDI can be switched between HD, 3G-SDI, 6G-SDI, and 12G-SDI.
■ Size: 138(W)x191(H)x140(D)mm 2.2kg
