DirectOut Technologies / MADI.MONI

DirectOut Technologies / MADI.MONI is a battery-powered, portable MADI tester and monitor equipped with a 3.5mm headphone jack, allowing you to monitor any channel.

■MADI Monitor/Analyzer

12 LEDs allow you to check the format (sample rate, frame mode, channel format) and signal quality (amplitude, jitter) of the input MADI signal.

Specifications

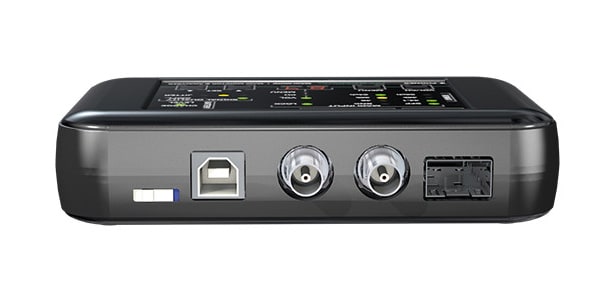

MADI Port (I/O):
1 x coaxial BNC, 75 Ω
1 x SFP (SFP module not included)

USB Port: USB 2.0 (B) for charging/firmware updates

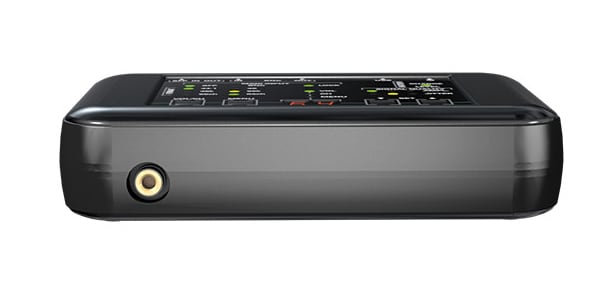

Headphone Output: 3.5 mm TRS jack, mono/stereo
Sample Rate: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12.5%)
MADI Format (I/O):
48k Frame, 96k Frame, S/MUX
56/64 Channel

Power Supply: Battery-powered - Charges via USB
Dimensions: W120 mm x H28 mm x D90 mm
Weight: Approx. 0.2 kg
