TASCAM / US-2X2-CU

■Audio/MIDI Interface
■Includes Cubase LE
*For operating environment requirements for the included Cubase LE software, please refer to the manufacturer's website.

This 2-input, 2-output USB audio MIDI interface is targeted specifically at music production professionals, especially beginners, and focuses on ease of use and understanding, allowing you to record high-quality audio immediately.

The microphone preamps, which are crucial for sound quality, feature Ultra-HDDA preamps boasting an EIN rating of -125dBu. Designed for ease of connection with condenser microphones as well as dynamic microphones, the interface can be used for a wide range of applications, from vocal recording to stereo recording of piano and acoustic guitar. The eye-catching, cutting-edge design was created by a German designer who has worked on many well-known music production devices. The slightly angled design provides stress-free desktop recording.

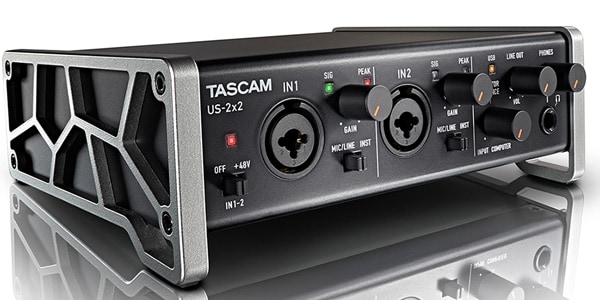

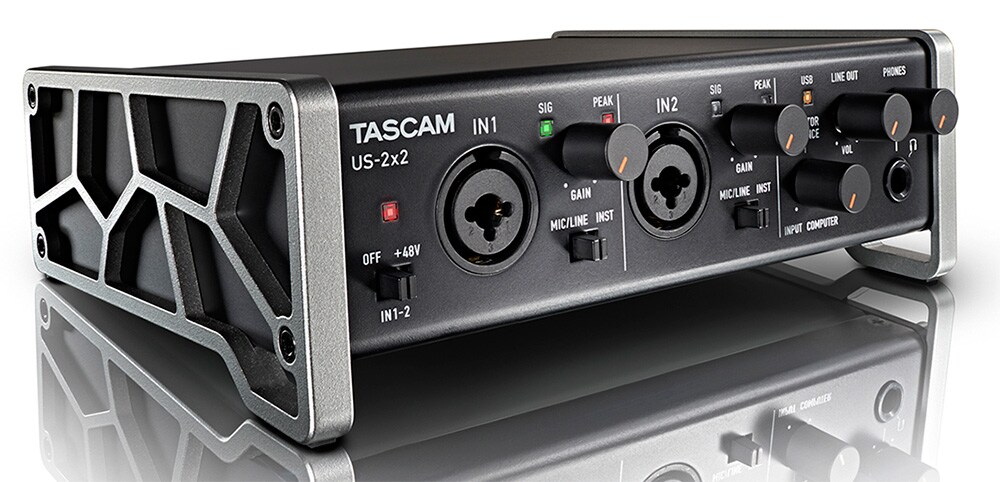

Two Ultra-HDDA mic preamps, two XLR/TRS combo jack inputs, two TRS analog output terminals, one headphone output, USB bus powered for mobile recording (only when connected to a PC), Ultra-HDDA (High Definition Discrete) with EIN -125dBu Equipped with a 3.0 Architecture (R&D Architecture) microphone preamp
Supports high-resolution recording up to 24-bit/96kHz
Compatible with Windows and Macintosh
Connects to a computer via USB 2.0
Compatible with iOS devices such as iPad (requires Apple's Lightning-USB Camera Adapter)
+48V phantom power supply
Supports direct guitar input
Zero-latency, direct monitoring

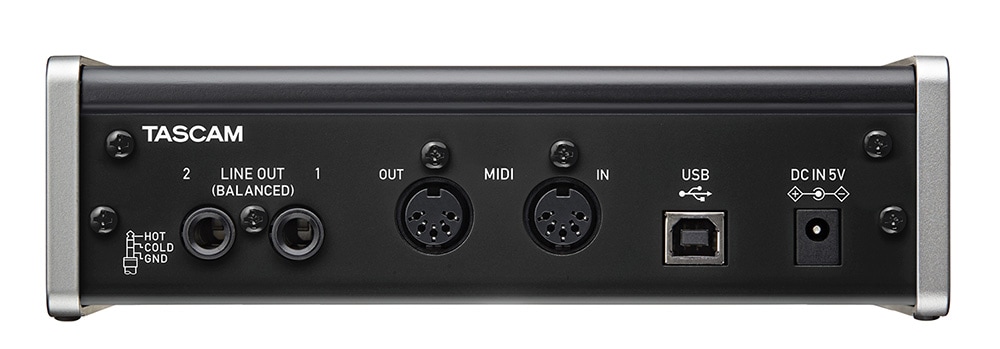

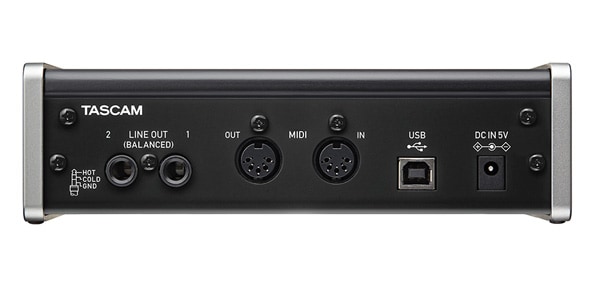

TRS analog balanced output terminals for connecting powered monitors
Standard phono jack headphone output terminal
Independent volume control for line output and headphone output
MIDI input and output terminals for connecting MIDI keyboards, etc.
Selectable output source from the settings panel
Selectable stereo or mono direct monitoring of input sound
Input mute function eliminates noise when no input is connected
Compatible with USB Audio Compliance 2.0
Includes Cubase LE (license card included)
Tested with major DAWs (SONAR, Pro Tools, Cubase, Live, Studio One, Garage Band)

Specifications

・Sampling Frequency/Bit Depth 44.1k/48k/88.2k/96k Hz, 16/24-bit
- Analog Audio Input: Microphone Input/Instrument Input/Line Input (IN 1-2 switchable)
- Analog Audio Output: Line Output/Standard TRS Jack, Headphone Output/Standard Stereo Jack
- MIDI IN/OUT
- USB: USB Type B
- Power: Supplied via USB from computer. *When using with an iOS device, a separately sold AC adapter (TASCAM PS-P520) is required.
Dimensions/Weight: 186 (W) x 65 (H) x 160 (D) mm, 1.1 kg
Accessories: USB cable (1.5 m), bundled software (license card included), instruction manual, warranty card

■ Operating Requirements

Windows
Supported OS: Windows 7: 32-bit SP1 or later, 64-bit SP1 or later, Windows 8.0: 32-bit, 64-bit, Windows 8.1: 32-bit, 64-bit, Windows 10: 32-bit, 64-bit
Compatible Computer: Windows-compatible computer with USB 2.0
CPU: Dual-core processor, 2 GHz or higher (x86)
Memory: 2 GB or more
Compatible Drivers: ASIO 2.0, WDM (MME)

Macintosh
Supported OS: OS X Mountain Lion (10.8), OS X Mavericks (10.9), OS X Yosemite (10.10), OS X El Capitan (10.11)
Compatible Computer: Apple Macintosh series with USB 2.0
CPU: Dual-core processor 2GHz or higher
Memory: 2GB or more
Compatible Drivers: Core Audio, Core MIDI

iOS Device
Compatible OS: iOS 7, iOS 8
