PRESONUS / Quantum 2 USB Audio Interface

This is a 22-in, 24-out Thunderbolt audio/MIDI interface that offers the fastest ultra-low latency ever. Comes with a reassuring 3-year Sound House warranty!

■Audio Interface

Ideal for any recording environment, the Quantum 2 achieves ultra-low latency of less than 1ms by sending and receiving signals directly from your DAW, eliminating the need for traditional hardware DSP monitoring. It delivers superior audio quality, combining cutting-edge 24-bit 192kHz converters with 120dB dynamic range and recallable XMAX mic preamps. In addition to functioning as a standalone 22-in/24-out audio/MIDI interface, you can also daisy-chain four Quantum 2s via Thunderbolt 2 to create a larger system with up to 80 inputs and 80 outputs.

■Key Features

- Thunderbolt 2 ultra-low latency audio/MIDI interface (Quantum 2: up to 22x24)
- PreSonus' fastest interface ever, connects directly to a DAW without DSP or hardware monitoring
- Daisy chain up to four Quantum units for large-scale systems
- Assignable output level control
- LED meter (Quantum 2: 6 x 8 segments, 4 inputs/2 outputs)

■ Includes the Studio Magic 2018 Plug-in Suite
Registered users of eligible PreSonus hardware receive the free Studio Magic Plug-in Suite, featuring collaborations with Plugin Alliance, Lexicon, Klanghelm, Output, and Arturia! Seven plugins are included: SPL Attacker, Maag Audio EQ2, and Brainworx bx_opto from Plugin Alliance, MPX-i Reverb from Lexicon, SDRR 2 from Klanghelm, Movement from Output, and Analog Lab Lite from Arturia.

■ System Requirements

Mac
OS X 10.11.6 or later
Intel Core i5 processor or higher
4GB or more of RAM (8GB or more recommended)

Windows
Windows 10 64-bit
Intel Core i5 processor or higher
4GB or more of RAM (8GB or more recommended)

iOS - UC Surface
iOS 9.3 or later
iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2™

Android - UC Surface
Android™ 5.0 (Lollipop) or later
Android smartphone or tablet

For the latest system requirements, please refer to the domestic distributor product page.

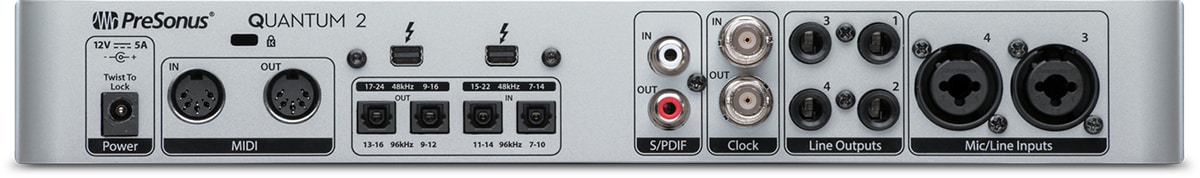

Specifications
Analog Inputs: 2 x Mic/Inst, 2 x Mic/Line, Independent Phantom Power, Recallable XMAX Mic Pre
Analog Outputs: 4 x Line (DC Coupled), 1 x Headphone with Volume Control
Digital I/O: 2 x ADAT (8 Channels), SPDIF (2 Channels), BNC Word Clock In/Out, MIDI In/Out
Thunderbolt: 2 x Thunderbolt 2 (Thunderbolt 1, 3* Compatible) *Requires Thunderbolt 2 Adapter
Other: Speaker A/B Switch
Software: Studio One Artist, UC Surface Remote Control Software, Studio Magic Plug-in Suite
Power Supply: 12 VDC/5A AC Adapter (Includes Locking)
Dimensions and Weight: W317 x D178 x H44 mm, 2.27 kg

Package Contents
Quantum 2
Studio One Artist License (User Registration Required)
Studio Magic Plug-in Suite (user registration required)
- Printed Japanese Owner's Guide
- Rubber feet
- 12 VDC External Power Supply (PSE certified)
*The Thunderbolt cable is not included and must be purchased separately.
