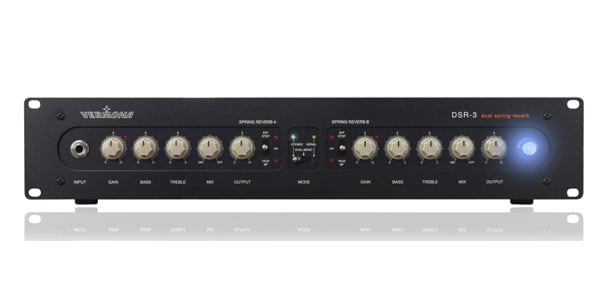

VERMONA / DSR-3

Equipped with carefully selected, high-quality reverb tanks from AccuBell (formerly Accutronics). A dual-spring reverb unit that provides a ""raw spring reverb sound,"" not a simulation.

■Stereo Reverb

The Vermona Engineering ""DSR-3"" is a dual-spring reverb for stereo sound sources. Like the company's other spring reverb-equipped products?the ReTube Verb, Retroverb Lancet, and VSR3?it features high-quality reverb tanks manufactured by AccuBell (formerly Accutronics), providing a ""real spring reverb sound"" rather than simulation. Each spring is carefully selected and matched to achieve a perfect stereo sound. In addition to stereo use, it also features a DUAL MONO mode for monophonic 2-channel use and a SERIAL mode for experimental reverb sounds, making it a versatile reverb unit for many applications.


■Main Features


? High-quality stereo spring reverb


? Mode switching allows for two single reverbs and a long-tail reverb


? Each channel features two equalization controls, ""BASS"" and ""TREBLE,"" tailored to the spring's frequency characteristics

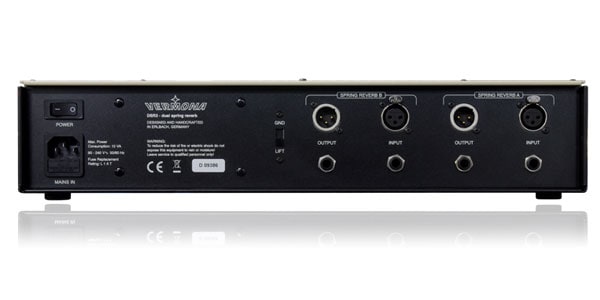

? Features unbalanced TS phone input/output as well as balanced XLR jack input/output




Can also be used as a first-class DI box


◎The DSR-3 features three operating modes, operating independently or in interaction, easily switchable with a single switch.


STEREO

Used with stereo sound sources. Perfect channel matching ensures that the settings of one reverb channel affect both.


DUAL MONO

Used with two independent monophonic sound sources. Each channel can be used as an independent spring reverb.


SERIAL

An experimental reverb effect. By connecting the output of one reverb channel to the input of the other channel, you can create a long-tail reverb sound.

■Specifications

Input/Output

? Max. Input Sensivity: -14 dBu

? Max. Input Level: +20 dBu

? Output Impedance

TS Front: 1 MΩ

TS Rear: 100 kΩ

XLR: 10 kΩ

? Max. Output Level: +20 dBu

? Output Impedance: 600 Ω

? Signal-to-Noise XLR

Direct: 90 dB

Effect: 65 dB

EQ

? Bass: 40 Hz / ±13 dB

? Treble: 7 kHz / ±22 dB

Power Supply Specifications

? Power Consumption: 10VAC

? Power Supply: 90-240V, 50/60Hz

? Dimensions: 19-inch rack 2U size, 255mm depth

? Weight: 6.8kg
