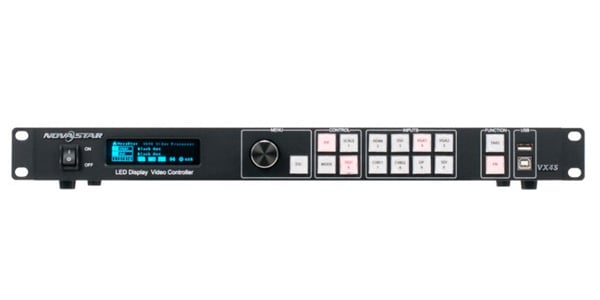

AMERICAN DJ / VX4S

LED display controller that can handle signals in various formats such as DP / HDMI / VGA / DVI / CVBS / SDI. The rear RJ45 output controls 260 million LEDs.

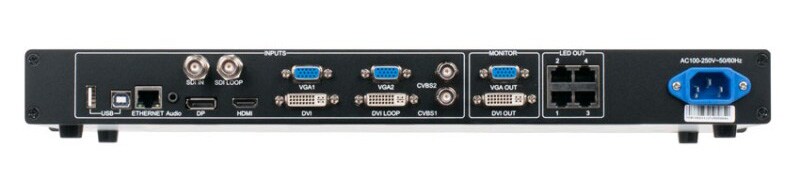

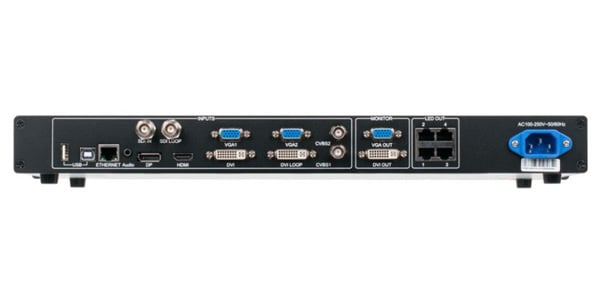

■ RJ45 LAN input x 1
■ RJ45 LAN output x 4
■ USB Type A x 2
■ USB Type B x 2
■ 3.5mm audio input
■ Video input: DP x1 / HDMI x1 / VGA x2 / DVI x2 / CVBS x2 / SDI x1
■ Video output: DVI Loop x1 / DVI x1 / VGA x1 / SDI Loop x1
■ Dimensions: 483 x 275 x 45 mm
■ Weight: 2.55 kg
