SHURE / GLXD14R/WL85

Variations

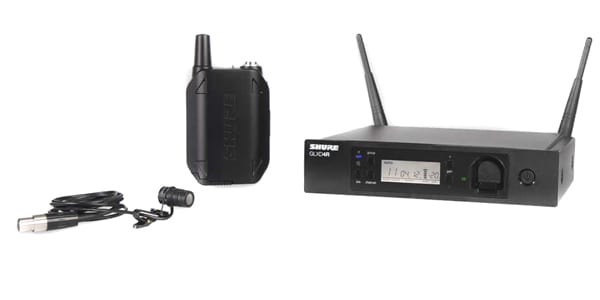

SHURE製ラベリアマイクロホンWL185、ボディパック型送信機GLXD1、ラックマウント受信機GLXD4Rのセット。プレゼンテーションやスピーチに最適です。

＜GLX1D transmitter＞
■ Use power supply: 3.7V lithium ion
■ Housing: Die-cast metal, black powder coating
■ Input impedance: 900kΩ
■ RF output power: 10 mW E.I.R.P.max.
■ Connector: 4-pin male mini connector (TA4M)
■ Antenna type: Built-in single pole
■ Size: 90.4 x 64.5 x 22.9mm

＜GLXD4R receiver＞
■ Gain adjustment range: -18dB ~ 42dB 1dB step
■ Output: XLR output (balance) 6.35mm output (impedance balance)
■ Impedance: XLR output 100Ω 6.35mm output 100Ω
■ Maximum audio output level:
XLR connector (600kΩ load) + 1dBV
6.35mm phone jack (3kΩ load) + 8.5dBV
■ Impedance: 50Ω
■ Antenna type: 1/2 wavelength sleeve dipole
■ Maximum input level: -20dBm
■ Steel
■ Weight: 907.2g

＜Microphone WL185＞
■ Wireless microphone, lavalier type
■ Directivity: Unidirectional
■ Frequency characteristics: 50Hz-17kHz
■ Maximum sound pressure level: 130.5dB SPL
■ Connector: Switchcraft TA4F
■ Dimensions: φ12 x length 22mm (microphone only)
■ Weight: 26 g (not including clip)
■ Cable length: 1.2m
