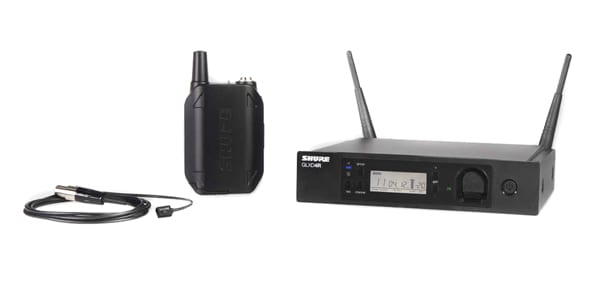

SHURE / GLXD14R/WL93

SHURE(シュアー）のワイヤレスシステム、WL93 、GLXD1、GLXD4R

＜GLX1D transmitter＞
■ Power supply: 3.7V lithium ion
■ Housing: Die-cast metal, black powder coating
■ Input impedance: 900kΩ
■ RF output power: 10 mW E.I.R.P.max.
■ Connector: 4-pin male mini connector (TA4M)
■ Antenna type: Built-in single pole
■ Size: 90.4 x 64.5 x 22.9mm

＜GLXD4R receiver＞
■ Gain adjustment range: -18dB ~ 42dB 1dB step
■ Output: XLR output (balance) 6.35mm output (impedance balance)
■ Impedance: XLR output 100Ω 6.35mm output 100Ω
■ Maximum audio output level:
XLR connector (600kΩ load) + 1dBV
6.35mm phone jack (3kΩ load) + 8.5dBV
■ Impedance: 50Ω
■ Antenna type: 1/2 wavelength sleeve dipole
■ Maximum input level: -20dBm
■ Steel
■ Weight: 907.2g

＜Microphone WL93＞
■ Wireless microphone, lavalier type
■ Directivity characteristics: Omni-directional
■ Frequency characteristics: 50Hz-20kHz
■ Maximum sound pressure level: 120dB SPL
■ Connector: Switchcraft TA4F
■ Dimensions: width 6 x height 4 x depth 9mm (microphone only)
■ Weight: 16g
■ Cable length: 1.2m
■ Black (WL93), Beige (WL93T)
