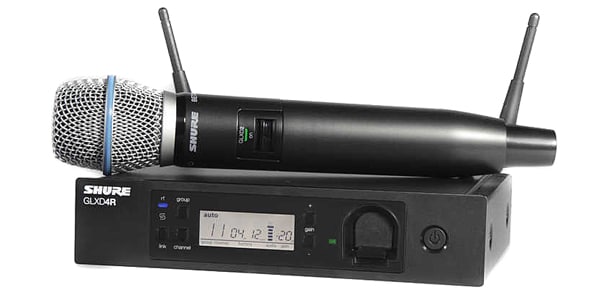

SHURE / GLXD24R/B87A

SHURE製のハンドヘルドワイヤレスシステム。ラックマウント受信機GLXD4R、ハンドヘルド型送信機GLXD2/BETA87Aのセット。スーパーカーディオイドコンデンサーマイクロホンカプセル搭載し、暖かく精確なサウンドを生み出します。

■ Tuning bandwidth: 2400-2483.5Mhz
■ Range: 60m (depending on the situation)
■ Transmitter mode: frequency hopping
■ Dynamic range: 120dB, A weight
■ RF sensitivity: -88dBm, standard
■ THD: 0.2%, standard
■ RF transmission output: 10mW E.I.R.P.max.
■ Battery life: Up to 16 hours

＜GLXD2 / BETA87 handheld transmitter＞
■ Maximum input level: 147dB SPL
■ Molded plastic
■ Power supply: 3.7V rechargeable lithium ion
■ RF transmission output: 10mW E.I.R.P maximum
■ Dimensions: 51 x 252 x 37 mm
■ Weight: 221g (excluding battery)

＜GLXD4R receiver＞
■ Gain adjustment range: -18dB ~ 42dB 1dB step
■ Output: XLR output (balance) 6.35mm output (impedance balance)
■ Impedance: XLR output 100Ω 6.35mm output 100Ω
■ Maximum audio output level:
XLR connector (600kΩ load) + 1dBV
6.35mm phone jack (3kΩ load) + 8.5dBV
■ Impedance: 50Ω
■ Antenna type: 1/2 wavelength sleeve dipole
■ Maximum input level: -20dBm
■ Steel
■ Weight: 907.2g

＜Set contents＞
・GLXD4R rack mount receiver
・BETA 87A super cardioid condenser microphone capsule installed
・GLXD2 / BETA878 handheld transmitter
・Microphone clip
・SB902 lithium ion rechargeable battery
・USB charging cable
・Detachable antennas x2
・Rack mount hardware,
・User Guide
