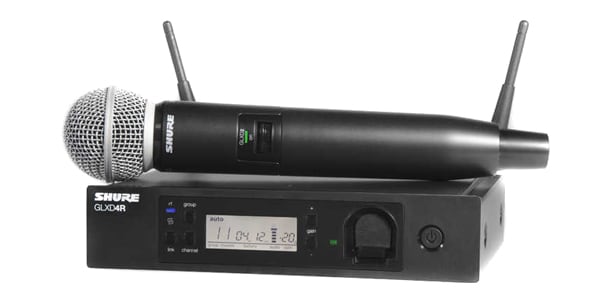

SHURE / GLXD24R/SM58

SHURE製のハンドヘルドワイヤレスシステム。ラックマウント受信機GLXD4R、ハンドヘルド型送信機GLXD2/SM58のセット。デジタルオーディオの明瞭性とシームレスな動作を提供。SM58マイクロホンカプセルにより、暖かでクリアなボーカルサウンドを再現します。

■ Tuning bandwidth: 2400-2483.5Mhz
■ Range: 60m (depending on the situation)
■ Transmitter mode: frequency hopping
■ Dynamic range: 120dB, A weight
■ RF sensitivity: -88dBm, standard
■ THD: 0.2%, standard
■ RF transmission output: 10mW E.I.R.P.max.
■ Battery life: Up to 16 hours

＜GLXD2 / SM58 handheld transmitter＞
■ Maximum input level: 147dB SPL
■ Molded plastic
■ Power supply: 3.7V rechargeable lithium ion
■ RF transmission output: 10mW E.I.R.P maximum
■ Dimensions: 51 x 252 x 37 mm
■ Weight: 221g (excluding battery)

＜GLXD4R receiver＞
■ Gain adjustment range: -18dB ~ 42dB 1dB step
■ Output: XLR output (balance) 6.35mm output (impedance balance)
■ Impedance: XLR output 100Ω 6.35mm output 100Ω
■ Maximum audio output level:
・XLR connector (600kΩ load) + 1dBV
・6.35mm phone jack (3kΩ load) + 8.5dBV
■ Impedance: 50Ω
■ Antenna type: 1/2 wavelength sleeve dipole
■ Maximum input level: -20dBm
■ Steel
■ Dimensions: 42.0 × 197.0 × 163.0 mm
■ Weight: 907.2g

＜Set contents＞
GLXD4R rack mount receiver, SM58 dynamic microphone capsule mounted, GLXD2 / SM58 handheld transmitter, microphone clip, SB902 lithium ion rechargeable battery, USB charging cable, detachable antennas x2, rack mount hardware, user guide
