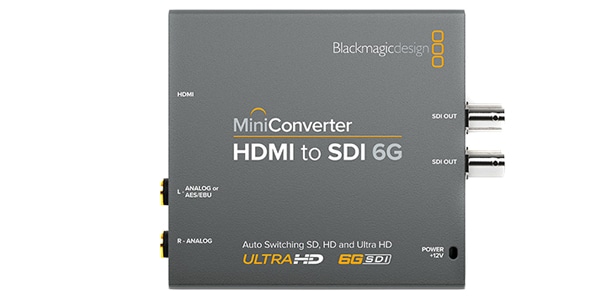

Blackmagic Design / Mini Converter - HDMI to SDI 6G

All the functions you need to convert HDMI to SD/HD/Ultra HD SDI video! Equipped with an independent audio interface, you can embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. The perfect solution for converting HDMI consumer cameras and computers to broadcast quality SDI!

■ HDMI/SDI converter
Connections:
■ SDI video output: SDI video output x2 ■ SD/HD/6G-SDI HDMI video input automatically matched
■ HDMI video input: HDMI type A input
■ Analog audio input: 2 channels of professional balanced analog audio (standard 1/4 inch jack terminal)
■ Digital audio input: 4ch AES/EBU digital audio
■ Corresponding multi-rate: SD/HD/6G-SDI automatic detection
■ Update and configuration: USB
■ Reclocking: Compatible
format
■ SD video format: 525i59.94 NTSC, 625i50 PAL
■ HD video format: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
■ Ultra HD video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
■ 4K video format: 4K DCI p24
■ SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A/Level B, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601
■ SDI video rate: SDI video interface can be switched between SD/HD/Ultra HD/DCI 4K
■ SDI video sampling: 4:2:2
■ SDI audio sampling: TV standard sample rate (48kHz/24bit)
■ SDI color accuracy: 4:2:2
■ SDI color space: YUV
■ SDI automatic switching: SD/HD/6G-SDI is automatically detected
■ HDMI video format: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,, 1080i50, 1080i59.94, 1080i60
■ HDMI color space: YUV, RGB
■ HDMI color accuracy: 4:2:2, 4:4:4
■ 114.25mm x 92.27mm 23.0mm 244g
