Blackmagic Design / ATEM 2 M/E Broadcast Panel

Live production switcher control panel

■ Control panel for ATEM live production switcher

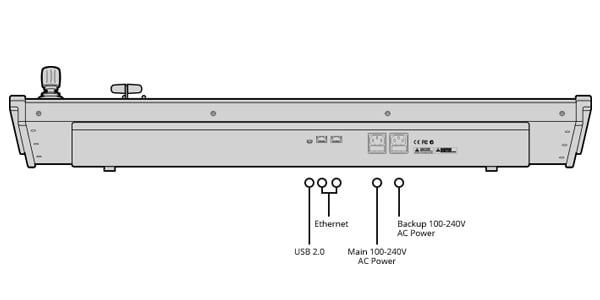

Connections:
■ Ethernet: 2 x 10/100/1000 BaseT (control panel/loop output for computer addition)
■ Software update: USB x1 for firmware update
Product Specifications
■ Direct cross points: 20
■ Shift/crosspoint: 40
■ Crosspoint button type: 3-color LED
■ Crosspoint label: High contrast RGB bitmap
■ Next transition selection: BKG, Key 1-Key 2 (each M/E column)
■ On-air indicator: 8
■ Power status indicator: 4
■ DSK transition selection: Auto, cut, tie/preview
■ Preview transition: 2
■ Transition rate display: 2
■ LED menu display: 2
■ Menu control: LCD bitmap button x 24
■ Macro dedicated button: 10
■ "Multi Control" buttons: 6
■ Destination bus: 2
■ Source selection bus: 2
■ Fader bar: 2
■ 3-axis joystick: 1
■ Numeric keypad: 1
■ 947mm x 437mm 15.25kg
*Power cable is sold separately.
