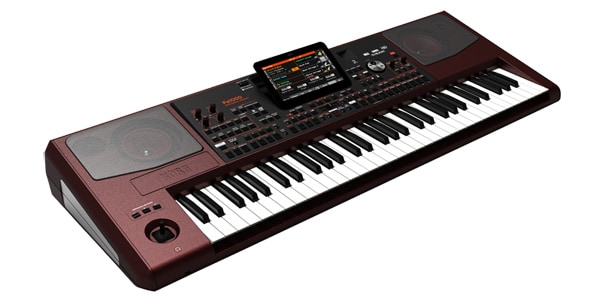

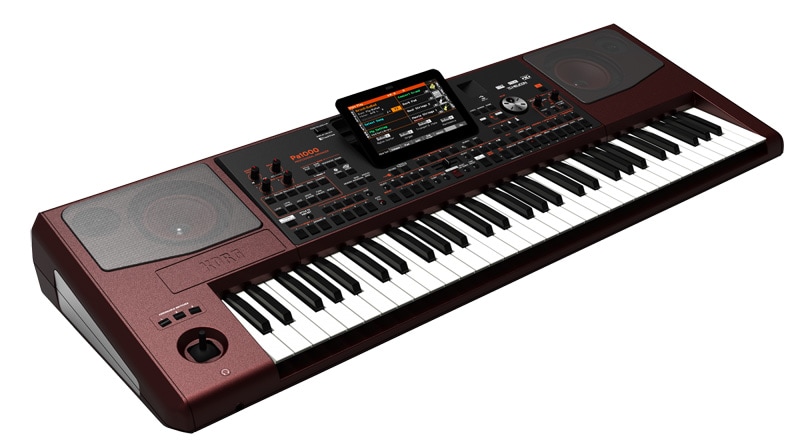

KORG / Pa1000　作曲向けキーボード

"Arranger Workstation"

■ Specifications
Keyboard: 61 semi-weighted keyboard (C2-C7) velocity with after touch

System: Upgradable OS, multitasking, loadable during playback
Sound source: EDS-X (Enhanced Definition Synthesis-eXpanded)
Resonance filter, 3-band EQ installed

Polyphony: 128 voices, 128 oscillators

Effect
Style/Song: 2 insert effects, 2 master effects (148 types)
Keyboard sound: 1 insert effect, 2 master effects (148 types)
Mastering effect: Limiter, Master EQ
Voice Processor: EQ, Compressor, Gate, 3 Voice Harmonizer (or Double), 2 x FX. Harmonizer, Double: Technology by TC-Helicon
Preset: Factory 30 or above, User 64
For Guitar: 3 x FX. Presets: Factory 45, User 64

Sound/drum kit
Factory: Includes over 1,750 sounds, two multi-layer stereo pianos with damper and enclosure resonance, GM/XG and 107 drum kit
User: 512, 256 drum kit
Digital Drawbar: 9 footage, percussion, key on/off, leakage, rotary speaker effects DNC (Defined Nuance Control) technology, full editing of natural ambience drum sounds and drum kits

Sampling
User PCM sample memory: 300 MB compressed (equivalent to 600 MB linear data)
Can read KORG, WAV, AIFF, and SoundFont formats
Can be saved in KORG, WAV, AIFF format
Full editing, time slice, sampling

Style
Factory: 430+, freely reconfigurable set
Users: 1,152, including users and direct banks
8 accompaniment tracks, 4 keyboard sets, 4 pads for each style, style settings for each style (sound and arranger parameters)
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style/pad recording with step recording, track and event editing
Style Creator Bot (MIDI song to style conversion)

Style Controls: 3 intros, 4 variations, 4 fills, breaks, 3 endings, sync start, sync stop, tap tempo/reset, bass inversion, auto fill, manual bass, memory, style mute , Drum mapping, snare & kick designation, style and keyboard set modes

Chord sequencer
Chord sequence recorder and player in style playback mode
Code sequences can be stored in styles and SongBook entries
Editing functions: Delete, Style/Copy from SongBook, Import/Export to SMF

Keyboard set library
Remember keyboard sound settings
Factory: Over 300 keyboard sets, freely reconfigurable
Users: 864, including users and direct banks
Dedicated keyboard set "My Settings"

KAOSS FX
Automatic MIDI FX generator
Over 65 factory presets

Song play: XDS crossfade dual sequencer player (with crossfader control)
Supported formats: MID, KAR, MP3+Lyrics (English only), MP3+G
Two players with independent selection, start/stop, home, rewind, and fast forward controls
Lyrics, score, and chord data can be displayed on screen or on an external video monitor
Markers with add, delete, edit and loop functions
Juke box function

MP3 Player/Recorder: 2 MP3 Players and MP3 Recorder
Transpose (+6 / -5 semitones), tempo change (±30%)
Vocal remover
Sounds such as styles, MIDI songs, MP3 songs, keyboard sounds, pads, mics, guitars, effects, and KAOSS effects can be recorded as MP3 files

Sequencer: Quick record (backing sequence), multi-track and step record functions
Full-featured sequencer, 16 tracks, up to 200,000 events, SMF (MID) native format

SongBook: Fully programmable music database with automatic selection of styles, MIDI songs (MID and KAR files), MP3 songs, style play and song play modes
User-defined set list with entries selectable from the control panel
Filters and sorting options

compatibility
Korg Pa Series: Style, Performance/Keyboard Set, Program/Sound, Song, SongBook Entries, Pad
Korg i series: style

pad
4 assignable pads + stop button
Pad record function

Control
Master Volume, Fade In/Out, Keyboard Accent/Song Balance, Ensemble, Octave Transpose, Master Transpose, Quarter Tones & Arabic Scales, Joystick, Audio In that can be saved to internal keyboard set Volume, mic FX level, harmony/double on/off, mic/guitar preset, audio in mute, 2 assignable knobs, 3 assignable switches, tempo +/-, tempo lock, metronome On/off, dial, search, shift, chord scan (lower, upper), split, track select, record scale control
Virtual quarter tone sub-scale keypad, 4x scale presets

Controller input
Damper pedal (optional DS-1H pedal supports half pedal)
Assignable pedal/switch

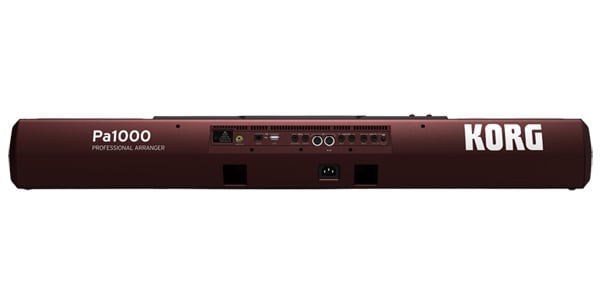

Audio input
Line (L/R): 1/4” jack, +20dBm, 12kOhm
Mic/Guitar (L): 1/4” jack with gain control (0- +40dB)
12kOhm (microphone) / 500kOhm (guitar)

Audio output
L/R: 1/4” jack, +21dBm, 0.003% THD+N@+18dBm
Headphone output: 1/4” jack, 16-200Ohms (50Ohms recommended)

Speaker system
Amplifier: 2x33 W
Speaker: 2x100mm woofer, 2x25mm dome tweeter

MIDI
IN, OUT standard MIDI connector
USB to MIDI using the USB port
8 user definable MIDI settings

USB
Type A (HOST for memory and controller) x 2 (front/rear)
Type B (DEVICE, personal computer and tablet) x 1 (rear) 2.0 High-Speed ​​connection (480Mbit/s)
storage

Internal memory: 960 MB
USB external drive (sold separately)
microSD card (sold separately), rear panel slot, with plastic cover

Display

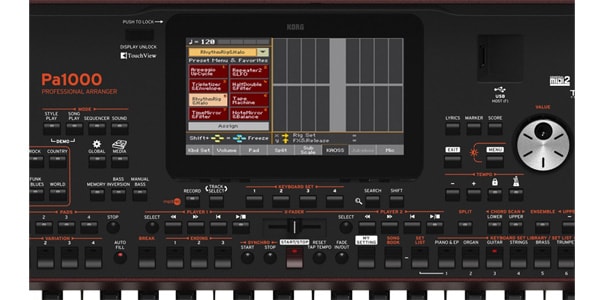

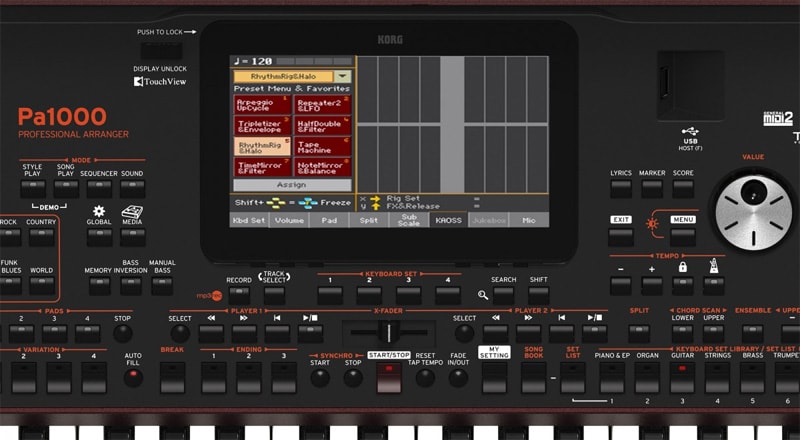

7-inch Wide Capacitive Color TouchView™ TFT Display-Manual Tilt System

Video output
RCA connector

Clock
Internal system clock

power consumption
100-240V, 50/60Hz, 25W (standard time) / 0.3W (standby)
Dimensions (W x D x H)

1,030 x 378.3 x 133 mm (excluding music stand. Height with music stand: 355.8 mm)

Mass
10.75 kg

Accessories
AC power cable, music stand, quick guide manual
