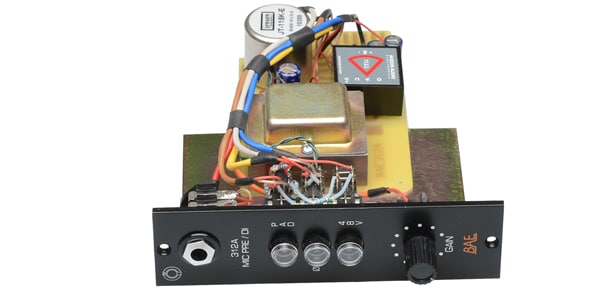

BAE / 312A Module

312A 500 series module. The 312A is a high-speed, punchy sound, ideal for drums and percussion.

■ Microphone preamplifier

■ Main features

・ Compact 500 series module
・ Avedis 1122 operational amplifier installed
・ Equipped with high-quality Jensen transformer for input and output
・ The switch uses a long-life gold contact
・ HiZ input for guitar and synthesizer
・ Separate front panel switches for phantom power

* A 500 series chassis is required and sold separately.

■ Specs

Number of channels: 1
Frequency response: 5Hz-75kHz (-3dB)
Equipped with phantom power
DI input impedance: 250kΩ
Output impedance: 75Ω
Common mode rejection ratio: 110dB / 60Hz
Input noise: -120 dBu Unweighted 300kHz Bandwidth
Maximum output level: +27.1 dBu @ 600Ω
Dimensions: 1.5W x 5.5L x 6D (500 series module size)
Weight: 0.45kg
