BAE / 10DCF

A single channel compressor that provides a sound with a fat, punchy character.

■ Main features

・ Discrete class A transformer circuit
・ Dynamics control by independent compressor and limiter mechanism
・ Intuitive layout gain reduction using illuminated meters
・ High-quality step-type Elma switch to increase dial accuracy
・ True bypass specification
・ Includes the same external power supply as used in other BAE units. Up to two units can be used with one power supply.

■ Specs

Type: Compressor / Limiter
Number of channels: 1

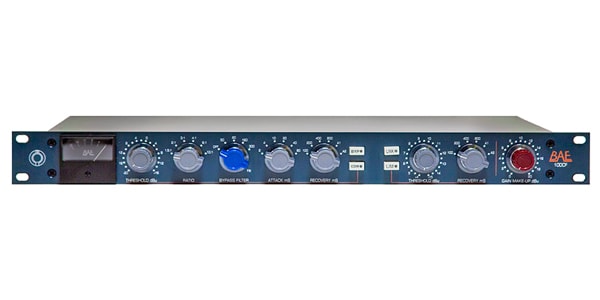

Controls: Threshold, Ratio / Bypass Filter, Attack, Recovery, Gain Make up
Threshold: -20dB to + 20dB
RATIO: 1.5: 1 to 10: 1
Frequency response: 5Hz-45kHz

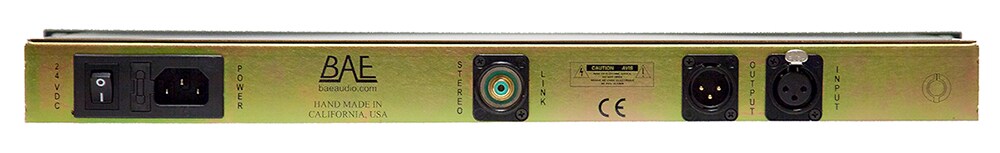

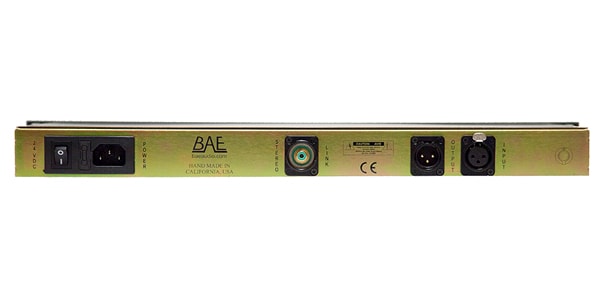

Input: 1xXLR
Output: 1xXLR, 1xRCA (stereo link)
Size: 1U
Power supply: External power supply included
