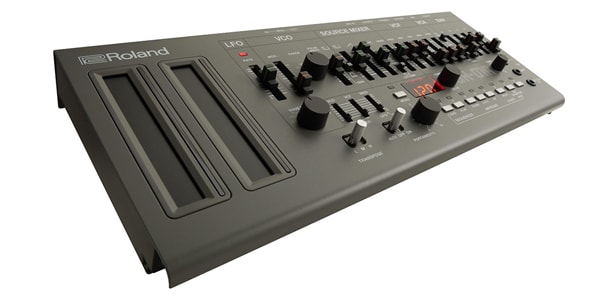

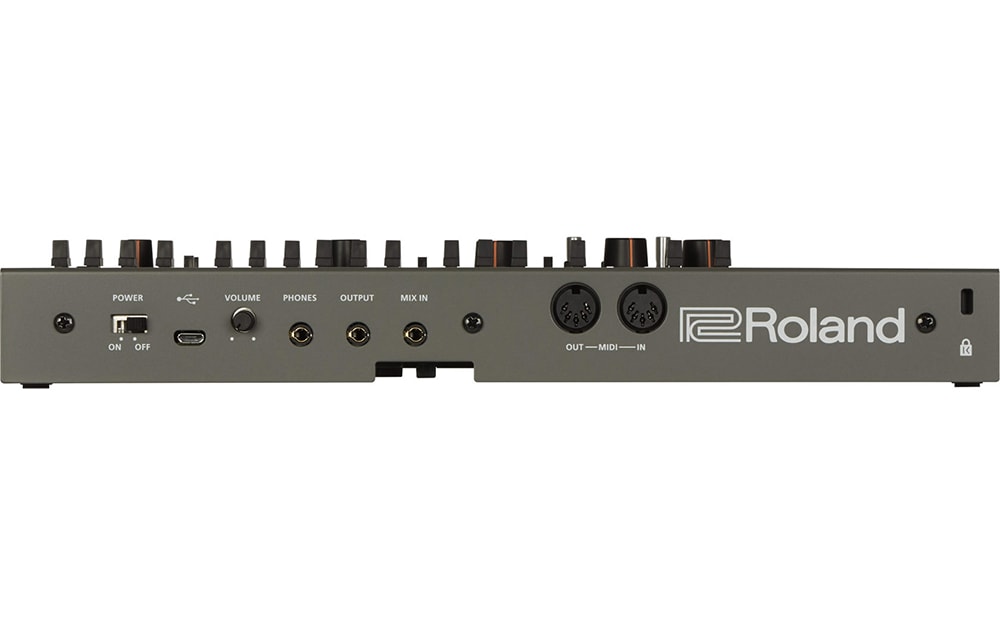

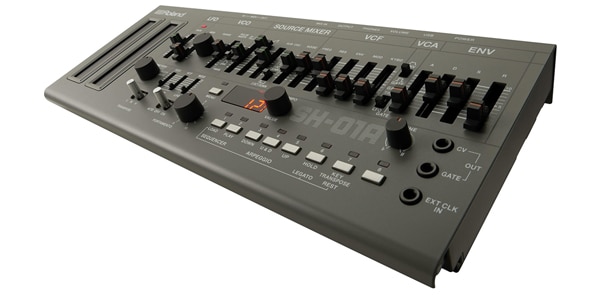

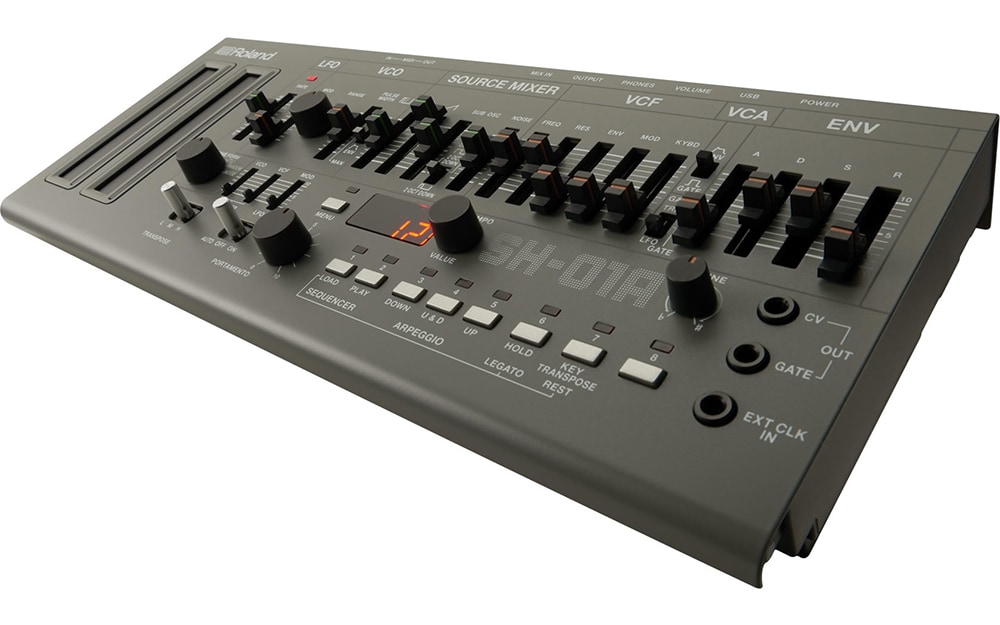

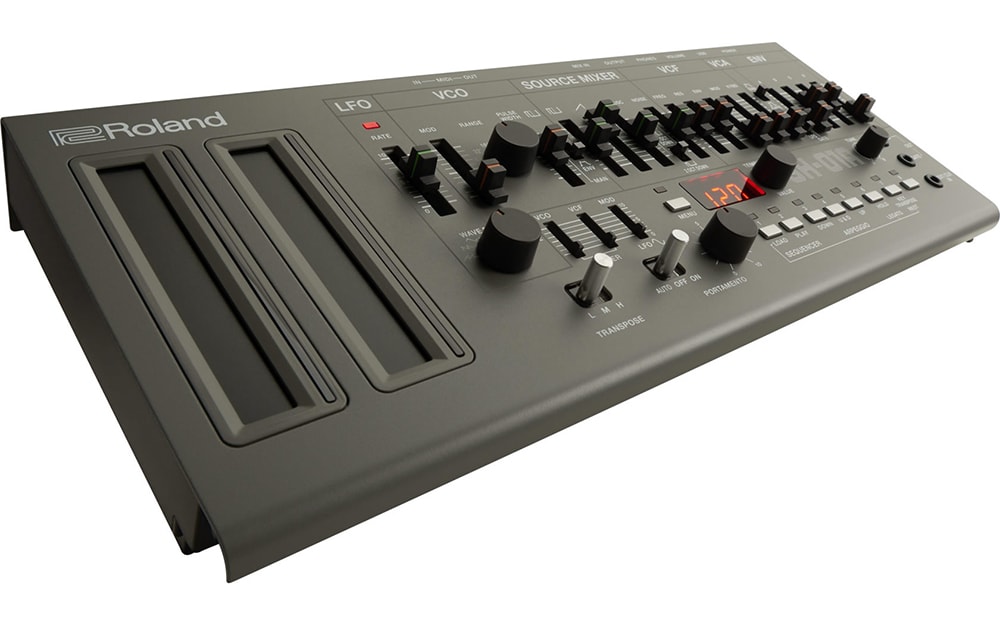

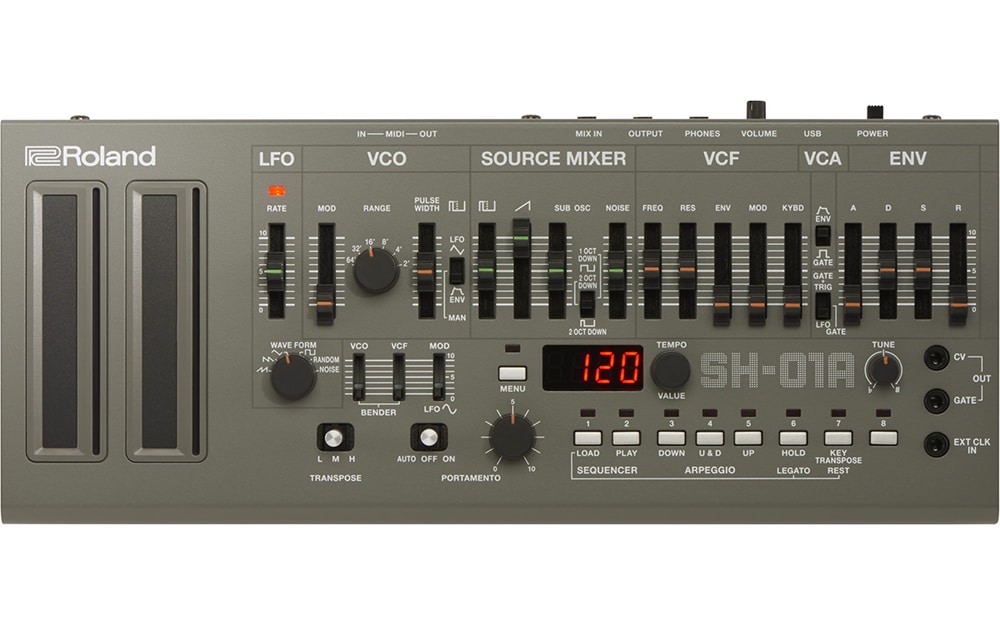

ROLAND / SH-01A　[アナログモデリングシンセ]Boutiqueシリーズ

A small sound source module modeled after the famous "Roland / SH-101". The SH-101, which was also a textbook for analog synthesizer sound making, is powered up to a compact 4-voice sound source with the same sound. Since it also supports MIDI and CV, it can be linked with other devices.

■ Analog synthesizer
■ Main specifications
Sound source section Maximum polyphony: 4 notes
Assign mode: MONO/UNISON/POLY/CHORD
User memory sound patch: 64
Sequencer pattern: 64
Controller VOLUME knob
Ribbon controller C1, C2

LFO section:
RATE indicator, slider
WAVE FORM selection knob

VCO section:
MOD depth slider
RANGE selection knob
PULSE WIDTH slider
LFO/MAN/ENV selection switch

SOURCE MIXER section:
PULSE level slider
SAW level slider
SUB OSC level slider
SUB OSC level slider
NOISE level slider

VCF section:
FREQ: Cutoff frequency slider
RES: Resonance slider
ENV: Envelope depth slider
MOD: Modulation depth slider
KYBD: Key Follow Slider

VCA section:
ENV/GATE selection switch

ENV section:
GATE+TRIG/GATE/LFO selection switch
A: Attack time slider
D: Decay time slider
S: Sustain level slider
R: Release time slider

Controller section:
TRANSPOSE selection switch (L/M/H)
VCO BENDER sense slider
VCF BENDER sense slider
LFO MOD slider
PORTAMENTO selection switch (AUTO/OFF/ON)
PORTAMENTO time knob

MENU switch/indicator

SEQUENCER/ARPEGGIO section:
1/LOAD switch/indicator
2/PLAY switch/indicator
3/DOWN switch/indicator
4/U&D switch/indicator
5/UP switch/indicator
6/HOLD switch/indicator
7/KEY TRANSPOSE switch/indicator
8 switch/indicator

Power switch
Power supply: Rechargeable nickel metal hydride battery (AA) x 4
4 alkaline batteries (AA)
USB bus power supply
Current consumption: 500mA (USB bus power supply)
Battery life during continuous use Rechargeable nickel metal hydride battery (AA): Approx. 6 hours
*Depending on battery specifications, capacity, and usage conditions.
Accessories: instruction manual
Safety notice leaflet
4 alkaline batteries (AA)
Separately sold keyboard unit: K-25m
Boutique Dock: DK-01

External dimensions/mass Width (W) 300 mm Depth (D) 128 mm Height (H) 46 mm Mass (including batteries) 965g
