VOX / VOX Continental 73 combo keyboard

A stage keyboard with elaborate modeling of three vintage organs

Number of keys: 73 keys
Keyboard type: semi-weighted, waterfall
Velocity: ○


[Maximum polyphony]
Modeling Tonewheel Organ Sound Source: 128 Voices
Modeling Transistor Organ Sound Source: 100 Voices
Modeling electric piano sound source: 100 voices
High-definition piano sound source: 60 dual stereo notes (up to 240 voices)
Modeling analog synth sound source: 36 voices
PCM sound source: 64 stereo notes (up to 128 voices)
PCM memory capacity: Approximately 10.5GB (48kHz, 16-bit, linear PCM conversion)
Preset variations: 150
Scene: 16 (4 x 4)
Up to 100 sets can be stored on a USB storage device

* The maximum polyphony varies depending on the oscillator settings such as stereo multisample and velocity crossfade.


[Model type]
・ CX-3 (HAMMOND series)
・ VOX (VOX series)
・ COMPACT (Farfisa series)

Drawbar
Percussion ON / OFF
Split function
Vibrato / Chorus ON / OFF
Rotary speaker ON / OFF


[Model type]
・ TINE (Rhodes series)
・ REED (Wurlitzer system)
・ FM (DX series)


[Model type]
・ GRAND
・ UPRIGHT
・ E.GRAND (CP system)


・ KEY
・ BRASS
・ STRINGS
・ LEAD
・ SYNTH
・ OTHER


CHORUS
PHASER
FLANGER
COMP
DRIVE
WAH (pedal controllable)


[DELAY]
1. DELAY
2. CROSS
3. TAPE
4. MOD DLY

[REVERB]
1. HALL1
2. HALL2
3. ROOM1
4. ROOM2
5. SPRING


[EQ]
9-band stereo input / output

[VALVE DRIVE]
Vacuum tube Nutube 6P1

[DYNAMICS]
Controls how the volume and timbre change by touching the keyboard


[Bend lever]
ORGAN: Rotary Slow / Fast
E.PIANO: Tremolo on / off
KEY / LAYER: Pitch bend

[Touch sensor (capacitance method)]
ORGAN: Drawbar
KEY / LAYER: Tone control
EQ: 9-band graphic equalizer


Frequency characteristics: 20Hz-22kHz ± 1.0dB 10kΩ load
THD + N: 20 Hz to 22 kHz 0.005% (standard) 10 kΩ load
S / N ratio: 105 dB (standard)


OUTPUT L / MONO, R (mono standard, XLR)
Headphones (stereo standard)


DAMPER: For sustain pedals
ROTOR SPEED: For foot switch
CONTROL: For expression pedals


MIDI: IN, OUT
USB A: For saving / loading scene data (USB-Type A)
USB B: MIDI interface 1 (16 ch) in / 1 (16 ch) out (USB-Type B)
Compliant with USB standard Ver. 2.0, high speed (480 Mbps compatible)


Power: AC adapter power terminal (DC 15 V)
Power consumption: 16W


Width: 110.3 cm
Depth: 35 cm
Height: 8.6 cm
Weight: 8.4kg


AC adapter
Power cord

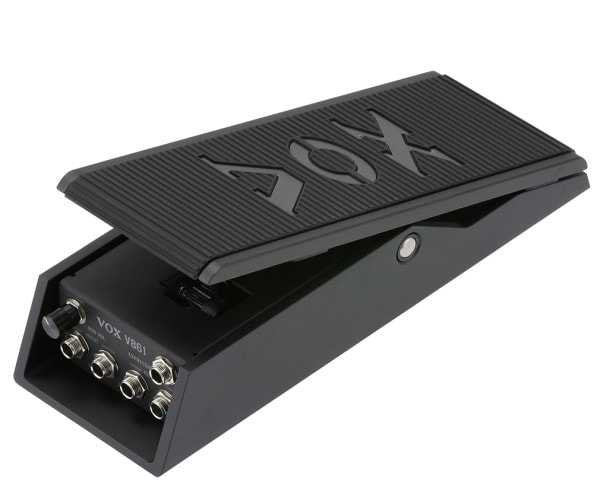

Volume / Expression Pedal (V861)


[Genuine soft case]
SC-Continental 73 (for 73 keys)

[Damper pedal]
Korg DS-1H

[Pedal switch]
Korg PS-1
Korg PS-3
