A DESIGNS / REDDI

A high-quality tube direct box that has received high praise from engineers.

■Direct Box

REDDI delivers high-quality sound at a reasonable price, earning praise from testing recording engineers as ""the best tube DI."" With its wide frequency response and ample gain range, REDDI boasts exceptionally clear sound compared to competing models. It's ideal as an interface for professional electronic instruments such as bass guitars, electric guitars, and synthesizers.



REDDI Direct Box


REDDI delivers high-quality sound at a reasonable price, earning praise from recording engineers who have tested it, calling it ""the best tube DI."" Its wide frequency response and generous gain range make it exceptionally clear compared to other models. It's perfect as an interface for professional equipment for electronic instruments such as bass guitars, electric guitars, and synthesizers. ■Main Features

* All-tube design

* Inspired by Ampeg B-15
* 6NI-P vacuum tubes

* Level controllable

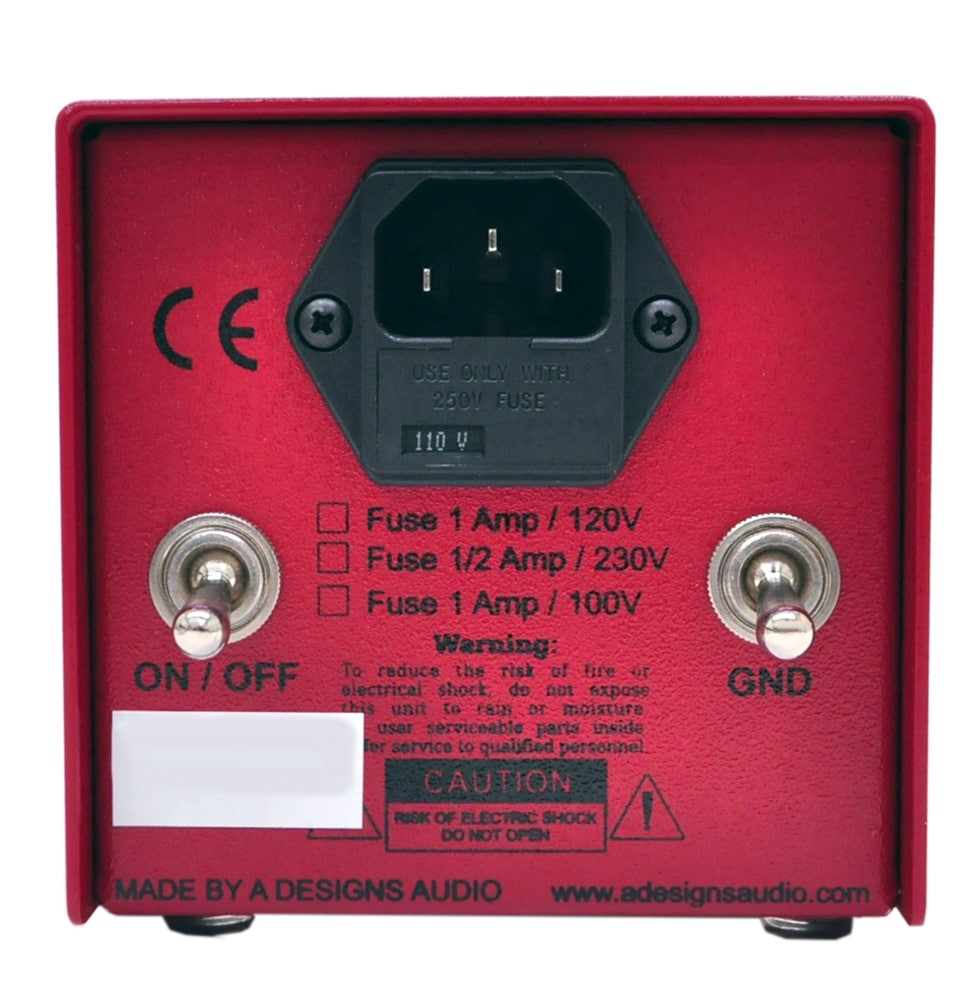

* Ground lift switch

* Zero feedback loop

* Original output transformer

* Clear and extended high-end characteristics

* Warm, transparent, high-quality sound

* 6.3mm phone jack thru output

* High-brightness blue LED for power indicator

* Neutrik XLR and 6.3mm phone jack input terminals

* XLR output terminal

■Specifications

Input impedance: 1.4kΩ

Gain range: 16dB

Noise (EIN): -128dB

Input terminals: XLR connector/6.3mm phone jack

Instrument input impedance (6.3mm): 100kΩ or higher

Output terminals: XLR

Output impedance: 600Ω

Maximum output level: +22dBu

Output: Low impedance, transformer-type floating balanced

Frequency response: 20Hz-60kHz

Distortion (THD): 0.08@1kHz

Power supply capacity: 100/120/230 VAC, 42W

Dimensions: 89W x 89H x 368D (mm)

Weight: 4.54kg
