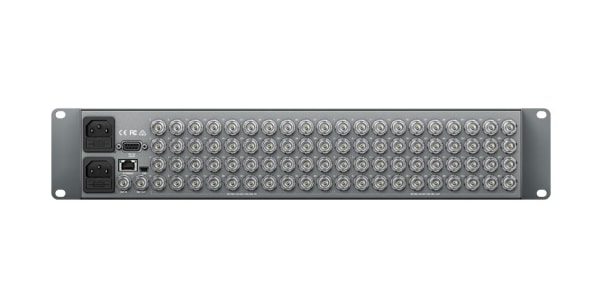

Blackmagic Design / Smart Videohub 12G 40x40

A 12G-SDI video router that supports all SD / HD / Ultra HD SDI formats at the same time!

■ Video router
■ Supports all SD / HD / Ultra HD SDI formats at the same time
■ SDI video input: 10-bit (SD-SDI, HD-SDI, 12G-SDI) x 40
■ SDI video output: 10-bit (SD-SDI, HD-SDI, 12G-SDI) x 40
■ SDI rate: 270Mb, 1.5G, 3G, 6G, 12G
■ Video input resynchronization: Not supported
■ SDI Reclocking: All SDI outputs
■ Reference input: Trivalent sync or black burst
■ Reference output: Reference termination loop output
■ Control panel connection: Ethernet
■ Serial control connection: DB-9 RS-422
■ Supported multi-rate: SD / HD / 12G-SDI is automatically detected. Supports simultaneous routing of 4K / HD / SD video
■ Update: USB
■ 482mm X 88mm X160mm 4.5kg
*Power cable is sold separately.
