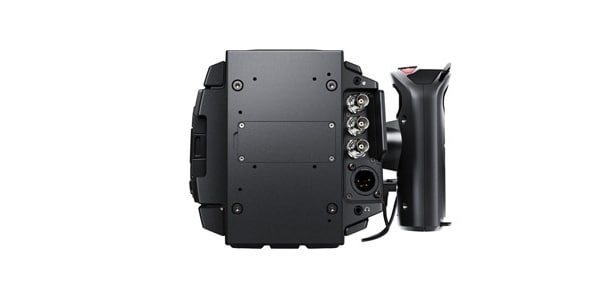

Blackmagic Design / Blackmagic URSA Mini Pro 4.6K

Image quality of 4.6K and the functions and controls of conventional broadcast cameras. A digital film camera for professional use.

■ Digital film camera
■ Effective sensor size: 25.34mm x 14.25mm (Super 35)
■Lens mount: EF mount included. Optional PL/B4 lens mount interchangeable
■ Lens control: Electronic control via EF mount pin or 12-pin broadcast connector (compatible lens)
■ Dynamic range: 15 stops
■ Shooting resolution: 4608 x 2592, 4608 x 1920 (4.6K 2.40:1), 4096 x 2304 (4K 16:9), 4096 x 2160 (4K DCI), 3840 x 2160 (Ultra HD), 3072 x 2560 (3K Anamorphic), 2048 x 1152 (2K 16:9), 2048x1080 (2K DCI), 1920 x 1080
■ Frame rate: Maximum frame rate depends on the selected resolution and codec. Supports project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps. Off-speed frame rate up to 60p at 4.6K and 120p at 2K window
■ Built-in ND filter: 4 position ND filter wheel (clear, 2 stop, 4 stop, 6 stop ND filter)
■Focus: Focus button turns on the peaking function, and compatible lenses can autofocus
■ Iris control
■ Screen size: 4 inches
■ Screen type: Capacitive LCD touch screen
■ Metadata support: Automatically add lens data from PL lenses compatible with electronic EF, B4, and i/Technology. Automatically records camera settings and slate data such as project/scene numbers, takes, and memos
■ Controls: Touch screen menu with 4 inch screen. Control push button, two configurable shortcut keys
■ Time code clock: High precision time code clock 1 frame error every 19 hours
■ Total video input: SDI x 1
■ Total video output: SDI x 1, SDI monitoring x 1
■ SDI rate: 1.5G, 3G, 6G, 12G
■ Analog audio input: XLR analog x 2 (mic/line/AES audio can be switched). Phantom power support
■ Analog audio output: 3.5mm headphone jack x1. Support iPhone microphone for talkback
■Microphone: Integrated stereo microphone
■ Built-in speaker: Mono speaker x 1
■ SD video format: Not supported
■ HD video format: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
■ Ultra HD video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■ SDI standard: SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
■ SDI audio sampling: 48 kHz, 24-bit
■ Compatible codecs: CinemaDNG RAW, CinemaDNG RAW 3:1, CinemaDNG RAW 4:1, Apple ProRes 4444 XQ QuickTime, ProRes 4444 QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.
■202mm x 209mm x146.8mm 2.31kg
