Blackmagic Design / Teranex Mini - HDMI to Optical 12G

HDMI/SDI, SMPTE optical fiber converter

■ HDMI/SDI, SMPTE optical fiber converter

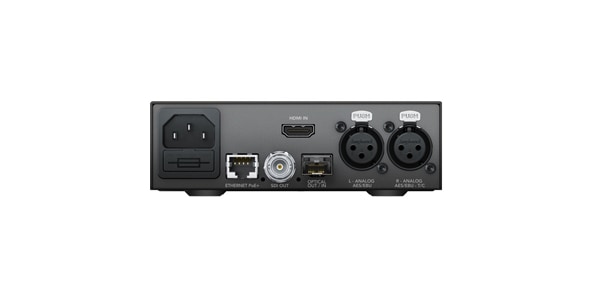

■ HDMI: One HDMI 2.0 connector (A type terminal). 2160p60 compatible
■ Optical fiber connection: LC terminal, 1310nm wavelength, single mode
■ Optical fiber video output: SD/HD/12G-SDI HDMI video input is automatically matched
■ SDI video output: SD/HD/12G-SDI HDMI video input is automatically matched
■ Analog audio input: 2 channels of professional balanced analog audio (XLR terminal) Right XLR can be set for time code input
■ AES/EBU audio input: 4 channels of professional 110Ω balanced digital audio (XLR terminal) Right XLR can be set for timecode input
■ Embedded audio: 16 channels
■ Supported multi-rate: SD/HD/2K/4K automatic switching
■ Updates and configurations: USB and Ethernet
■Reclocking: Supported
Optical output format
■ Compatible SD format: 525i59.94 NTSC, 625i50 PAL
■ Compatible HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
■ Compatible 2K formats: 1080p23.98, 1080p24, 1080p25
■ Compatible Ultra HD formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■ Compatible 4K formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
■ SDI standard: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE 297M (optical fiber SDI), SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
■ SDI video rate: SDI video interface can be switched between SD, HD, Level B 3G-SDI, 6G-■ SDI and 12G-SDI
HDMI input format
■ Compatible SD format: 525i59.94 NTSC, 625i50 PAL
■ Compatible HD formats: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
■ Compatible Ultra HD formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■ Compatible 4K formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
■ 140mmx170mmx44mm 580G
*Power cable is sold separately.
