Blackmagic Design / Optical to HDMI 12G

Convert SDI and SMPTE fiber optics to HDMI and send video and embedded audio over 3G, 6G and 12G-SDI fiber optics over any distance!

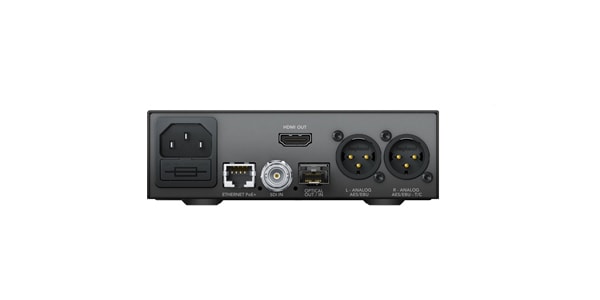

■ Optical fiber connection: LC terminal, 1310nm wavelength, single mode
■ Optical fiber video input: 12G-SDI 1 system (SD/HD/2K/4K automatic switching)
■ SDI video input: 12G-SDI 1 system (SD/HD/2K/4K automatic switching)
■ Optical fiber video loop through: 12G-SDI loop through 1 system
■ HDMI video output: 1 HDMI 2.0 connector (A type terminal). 2160p60 compatible
■ Analog audio output: 2 channels of professional balanced analog audio (XLR terminal) Right XLR can be set for timecode output
■ AES/EBU Audio Output: 4-channel professional 110Ω balanced digital audio (XLR terminal) Right XLR can be set for timecode output
■ Corresponding multi-rate: SD/HD/12G-SDI automatic detection
■ Updates and configurations: USB and Ethernet
■ Supports reclocking
■ Supported SD format
■ Compatible SD format: 525i59.94 NTSC, 625i50 PAL
■ Compatible HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
■ Compatible 2K formats: 1080p23.98, 1080p24, 1080p25, 1080PsF23.98, 1080PsF24, 1080PsF25
■ Compatible Ultra HD formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■ Compatible 4K formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
SDI standard: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 297M (optical fiber SDI), SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
■ SDI video rate: SDI video interface can be switched between SD, HD, Level B 3G-SDI, 6G-SDI and 12G-SDI
HDMI output format
■ Compatible SD format: 525i59.94 NTSC, 625i50 PAL
■ Compatible HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
■ Compatible 2K formats: 1080p23.98, 1080p24, 1080p25
■ Compatible Ultra HD formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■ Compatible 4K formats: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 60p
■ 140mmx170mmx44mm 580G
*Power cable is sold separately.
