Blackmagic Design / Teranex Mini - SDI to Audio 12G

Broadcast video audio converter

■ Broadcast Video Audio Converter
■ De-embed audio from SD, HD and Ultra HD SDI video

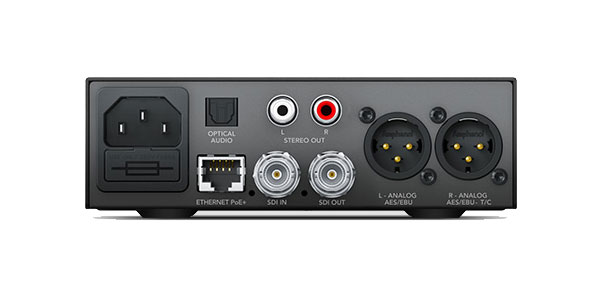

■ Outputs analog audio of channels to balanced XLR, optical/HiFi RCA,
■ Output up to 4 channels of AES/EBU digital audio
■ SDI video input: 12G-SDI x1 (SD/HD/2K/4K automatic switching)
■ SDI video output: 12G-SDI loop through x1
■ Embedded audio: 16 channels
■ Analog audio output: 2 channels of professional balanced analog audio (XLR terminals) or 2 channels of unbalanced analog line level (RCA terminals) XLR can be set for time code output
■ AES/EBU audio output: 4-channel professional 110Ω balanced digital audio (XLR terminal) Right XLR can be set for timecode output
■ Optical audio output: S/PDIF signal (TOSLINK terminal)
■ Supported multi-rate: SD/HD/2K/4K automatic switching
■ Update and configuration: USB or Ethernet
■ Supports reclocking
■ Compatible SD format: 525i59.94 NTSC, 625i50 PAL
■ Compatible HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50 , 1080i59.94, 1080i60
■ Compatible 2K formats: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
■ Compatible Ultra HD formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■ Compatible 4K format: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p
■ SDI video rate: The SDI video interface is automatically switched between SD-SDI, HD Level B 3G-SDI, 6G-SDI, and 12G-SDI.
■ 140x44x170mm 605g
*Power cable is sold separately.
