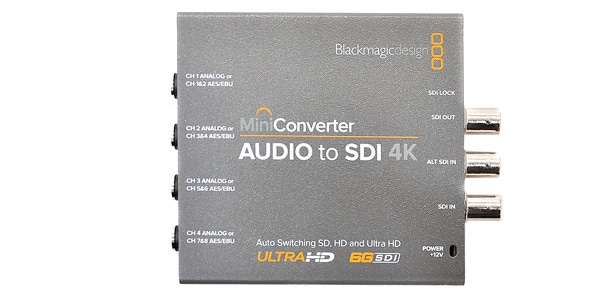

Blackmagic Design / Mini Converter - Audio to SDI 4K

Embed professional audio from your audio mixer or analog device into your SDI video connection. It can be used with SDI routers and decks, or add audio channels to a video converter.

Connections:

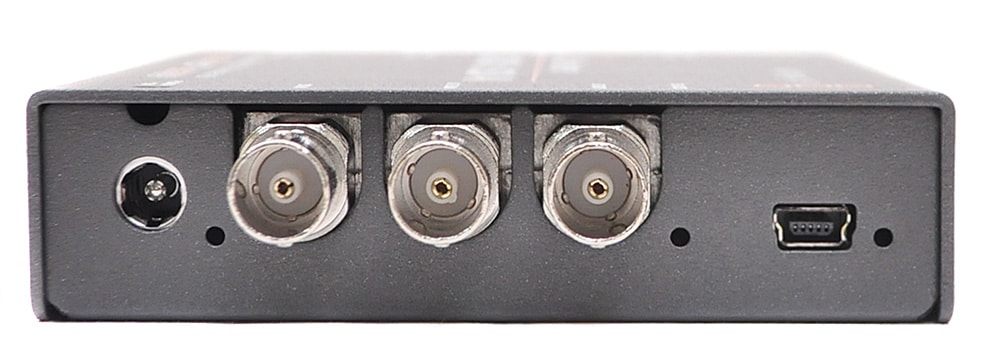

■ SDI video input: SD/HD/6G SDI x1, alternate SDI input x1 (automatically switches if a problem occurs with the main input)
■ SDI video output: Embedded SDI output x1

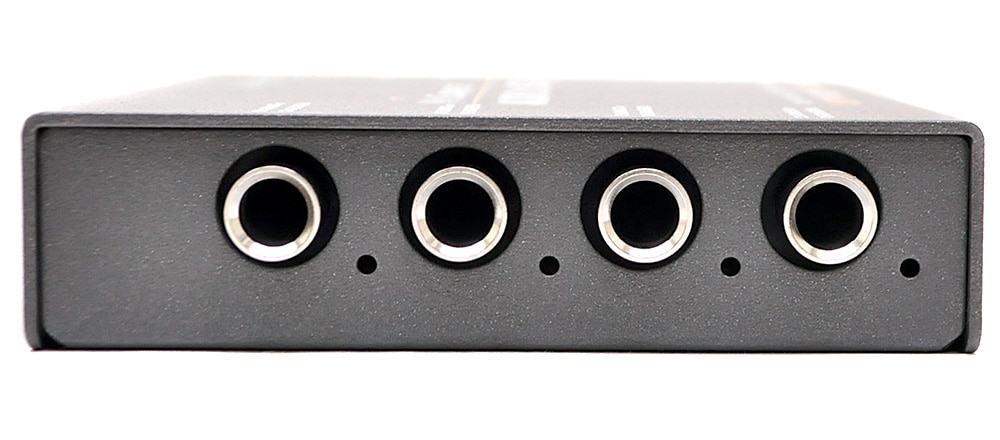

■ Analog audio input: 4ch professional balanced analog audio (standard 1/4 inch jack terminal)
■ Digital audio input: 8ch professional balanced digital audio (standard 1/4 inch jack terminal)
■ SDI Redundant Input: Automatically switch if main SDI input is lost
■ Corresponding multi-rate: SD/HD/6G SDI automatic detection
■ Update and configuration: Via high speed USB 2.0 (480Mb/s)
■ Reclocking: Yes

Format:
■ SD video format: 525i59.94 NTSC, 625i50 PAL
■ HD video format: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50 , 1080i59.94, 1080i60
■ 2K video format: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
■ Ultra HD video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
■ 4K video format: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
■ SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2036, SMPTE ST-2081, ITU R BT.656, ITU R BT.601
■ SDI video rate: SDI video interface can be switched between SD/HD
■ SDI video sampling: 4:2:2, 4:4:4
■ SDI audio sampling: TV standard sample rate (48kHz/24-bit)
■ SDI color accuracy: 4:2:2, 4:4:4
■ SDI color space: YUV, RGB
■ Automatic SDI switching: SD/HD/3G/6G SDI is automatically selected

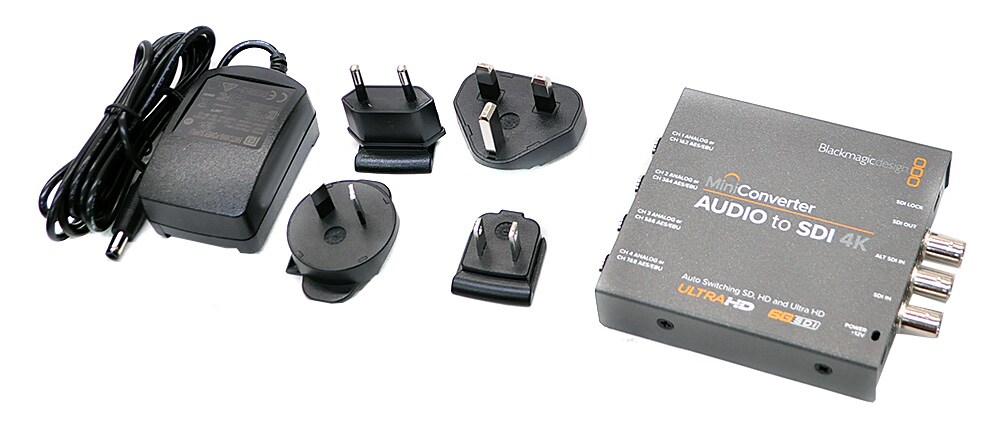

■ Power supply: +12V international power supply. Includes AC adapter that can be used all over the world. Cable tie points
■ SIZE: 115x92.27.x23mm 216g
