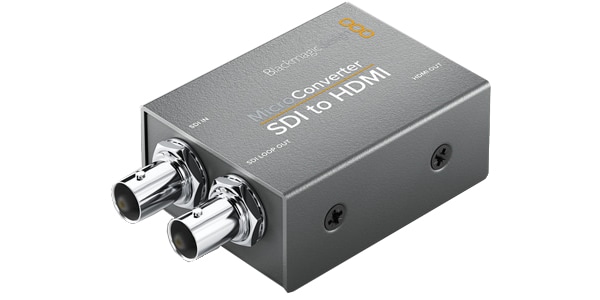

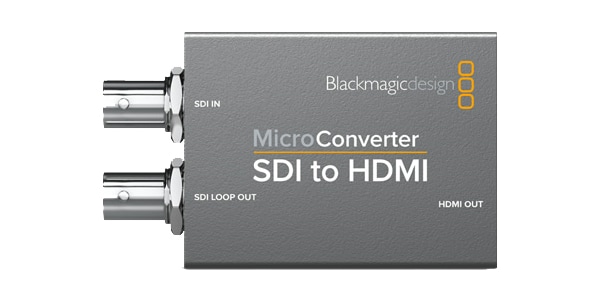

Blackmagic Design / Micro Converter - SDI to HDMI

Blackmagic Design's small broadcast quality video converter. The power is supplied via the micro USB port, and can be supplied from a screen TV or laptop computer.

■ SDI/HDMI converter (without power supply)
Connections:
■ SDI video input: 1 (SD/HD/3G-SDI)
■ SDI video output: SDI loop output x1
■ HDMI output: HDMI type A output
■Supported multi-rate: SD/HD automatic detection
■ Update, configuration, power supply, Micro USB
format
■ SDI video format: 525i59.94 NTSC, 625i50 PAL
■ HD video format: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
■ SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425
■ SDI video rate: SDI video connection can be switched between SD and HD Level A/Level B 3G-SDI
■ SDI color accuracy: 4:2:2
■ SDI color space: YUV
■ Automatic SDI switching: SD/HD/3G-SDI is automatically detected
■ HDMI video format: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
■ HDMI color accuracy: 4:2:2
■ HDMI color space: YUV
■ 76.5mm x 45.8mm 24.8mm 150g

9338716005196
