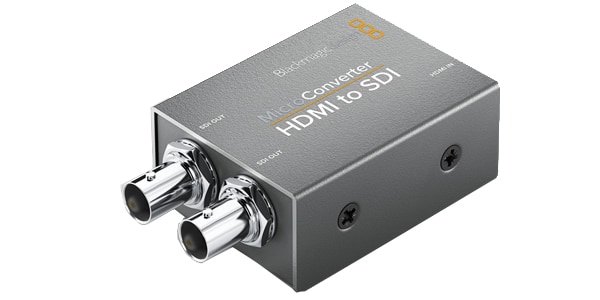

Blackmagic Design / Micro Converter - HDMI to SDI

Ultra-small broadcast quality video converter that can be powered from a screen TV or laptop computer by supplying power from the micro USB port. In addition to this HDMI to SDI converter, please consider Blackmagic Micro Converter SDI to HDMI which can convert SDI to HDMI.

■ HDMI/SDI converter (without power supply)
Connections:
■ SDI video output
SD/HD/3G-SDI HDMI video input auto matching

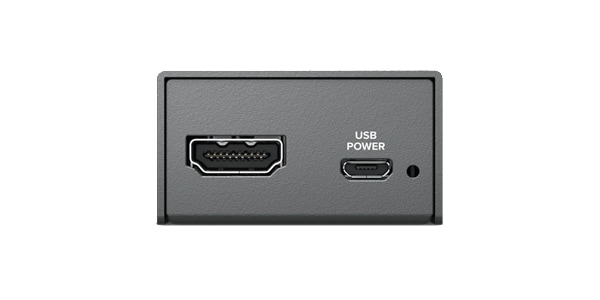

■ HDMI video input: HDMI type A input
■ Supported multi-rate: SD/HD automatic detection
■ Update, configuration, power supply: Micro USB
■ Reclocking: Supported
format
■ SDI video format: 525i59.94 NTSC, 625i50 PAL
■ HD video format: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
■ SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
■ SDI video rate: SDI video connection can be switched between SD/HD. Level A/Level B is user selectable with the Setup utility.
■ SDI color accuracy: 4:2:2
■ SDI color space: YUV
■Automatic SDI switching: Automatic detection of SD/HD/3G-SDI
■ HDMI video format: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
■ HDMI color accuracy: 4:2:2
■ HDMI color space: YUV
■ 76.5mm x 45.8mm 24.8mm 150g
■ For legal reasons, you cannot capture from a copyrighted HDMI source. Please confirm ownership of copyright before capturing/delivering content.

9338716005189
