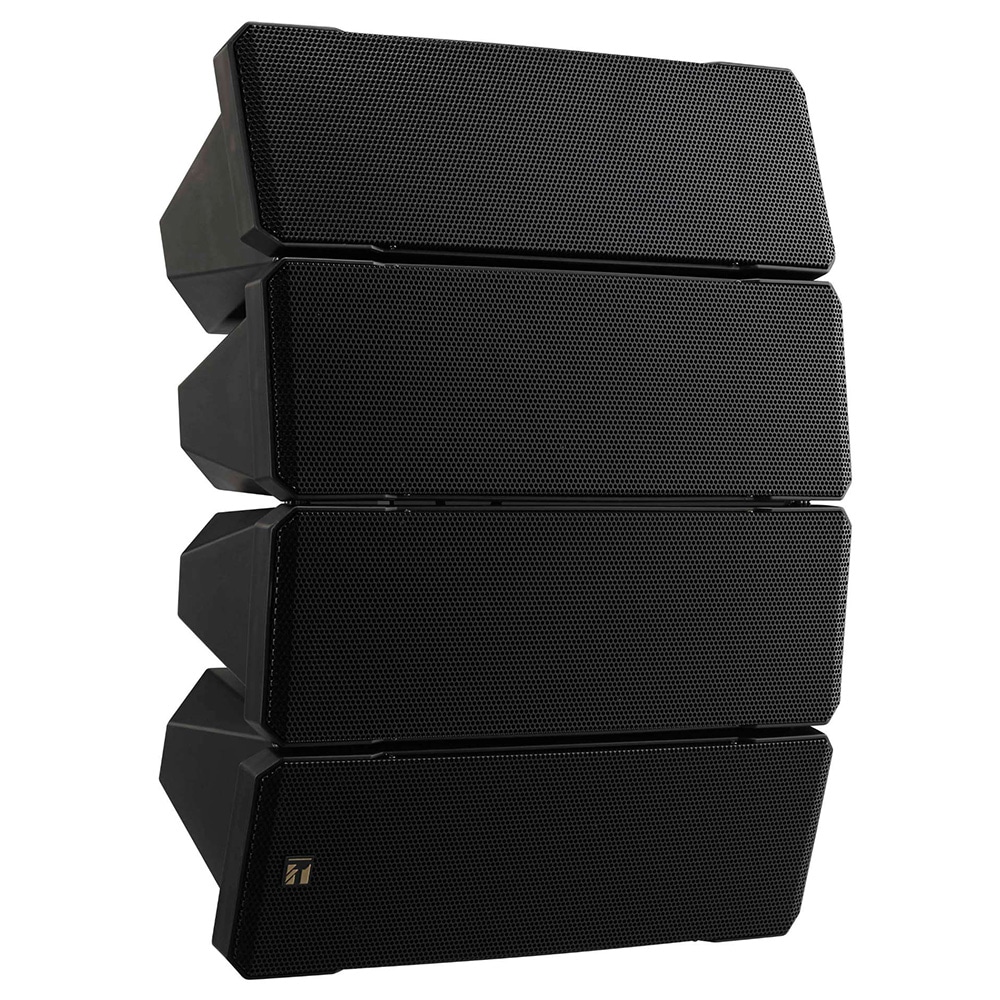

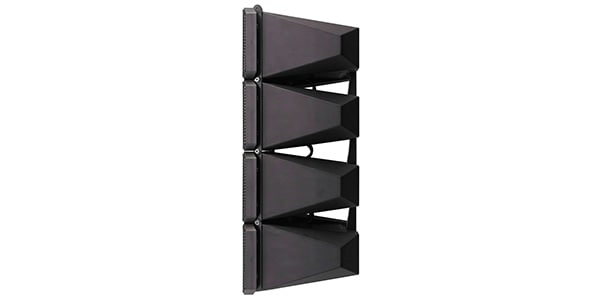

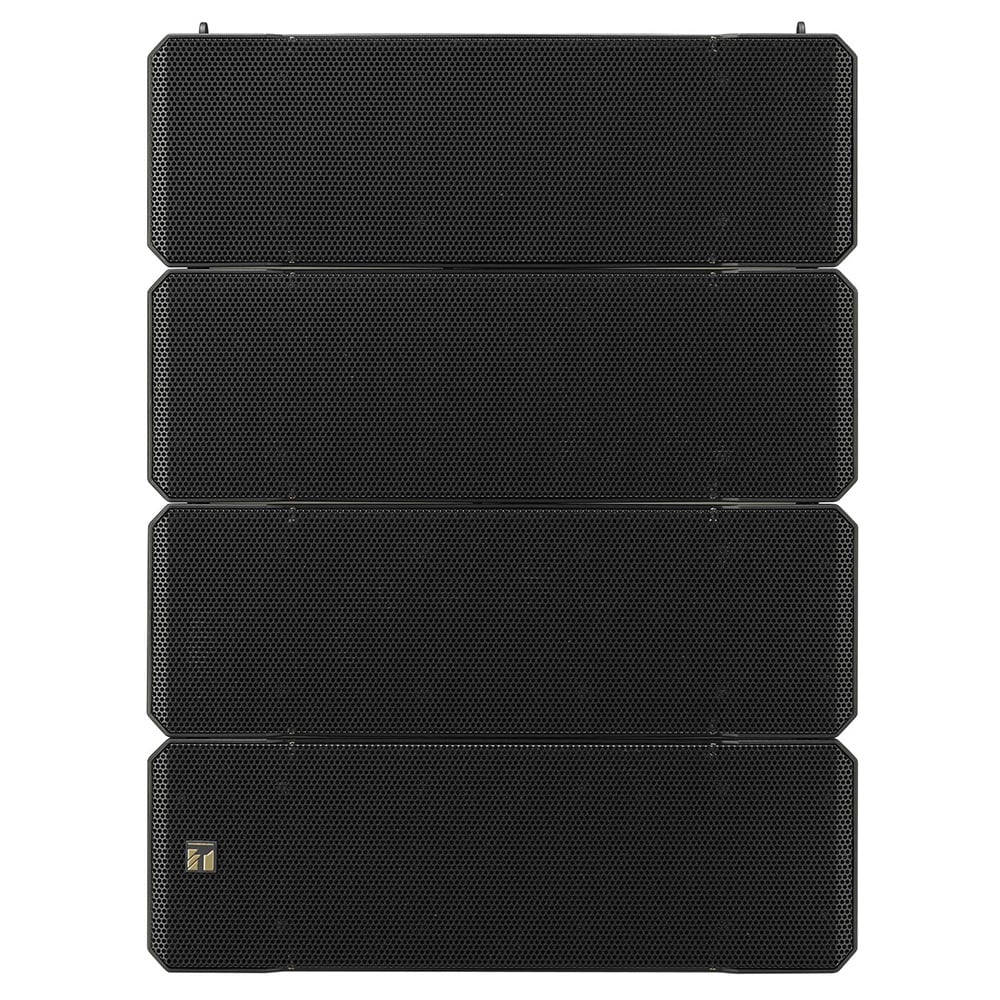

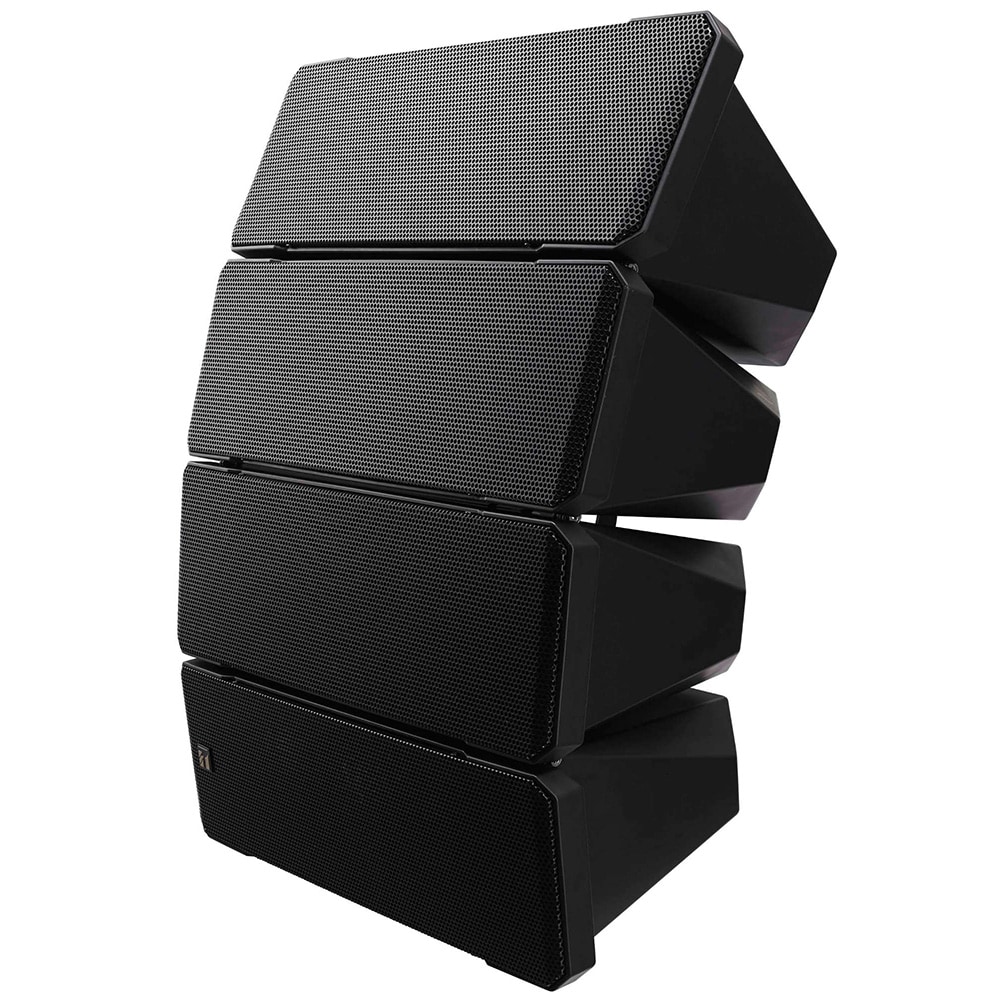

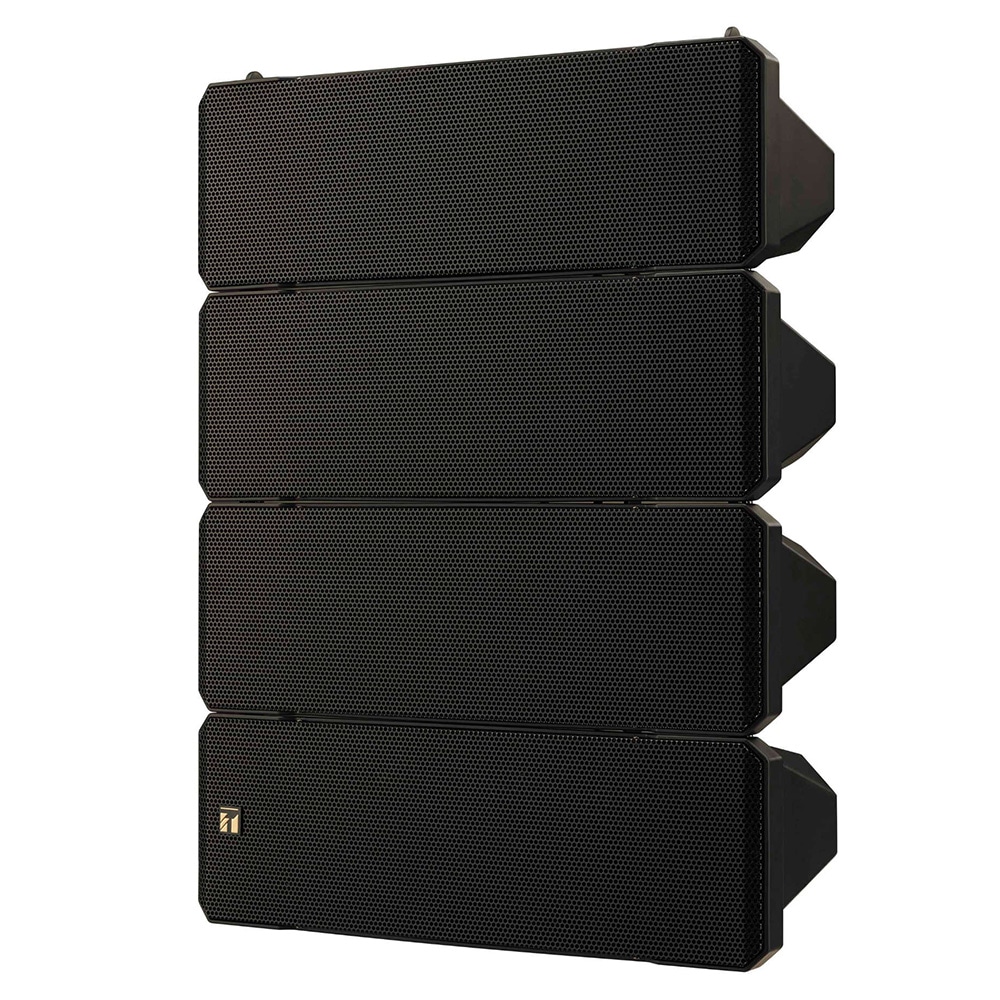

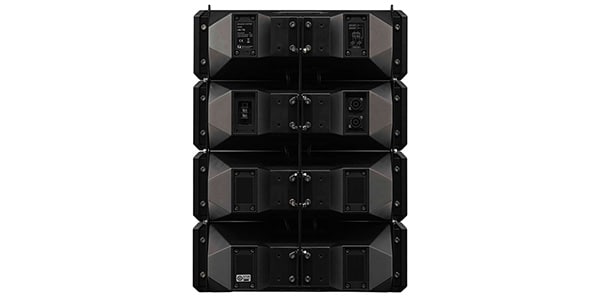

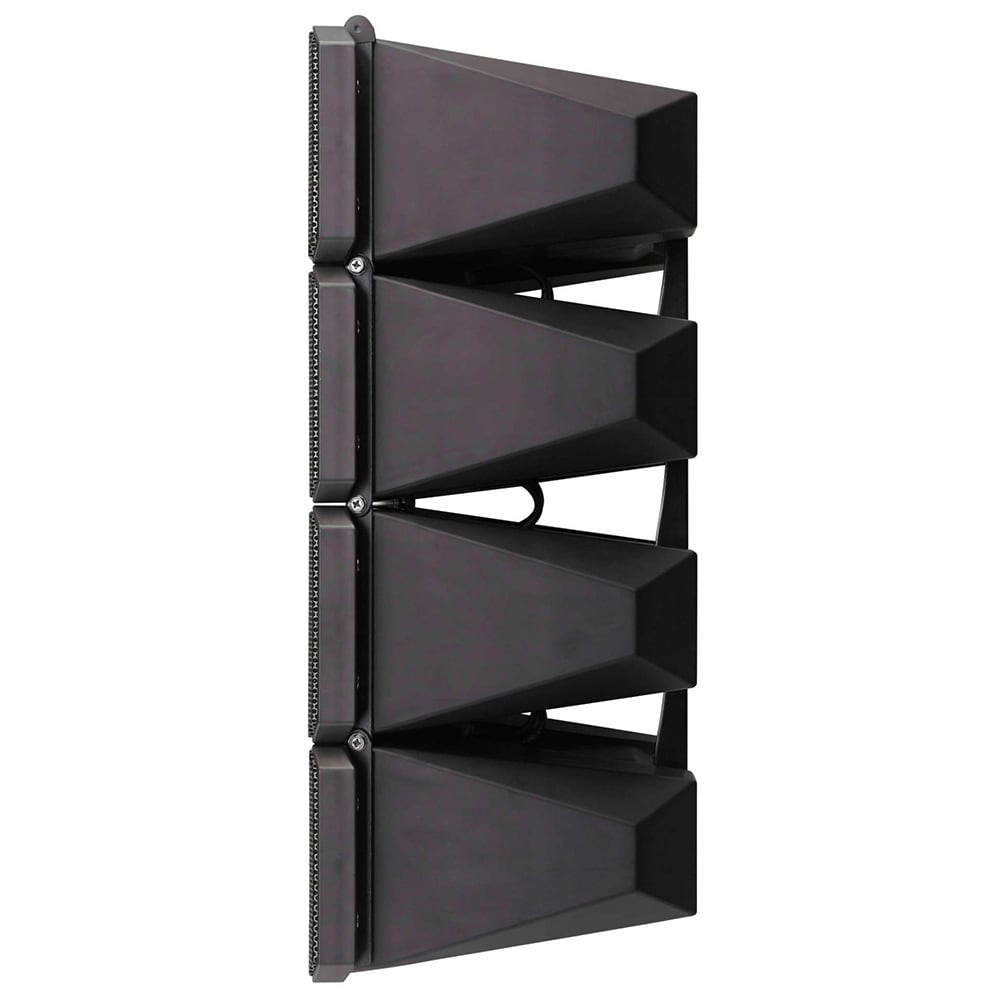

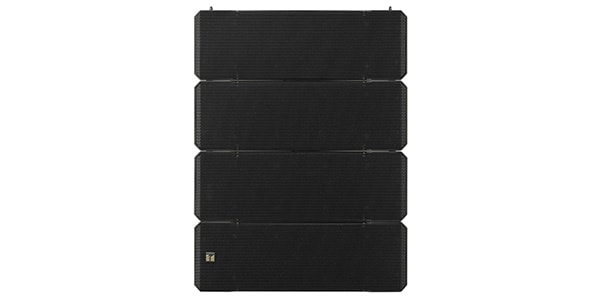

TOA / HX-7B-WP Line array speaker

HX-7B-WPは防滴型ラインアレイスピーカー。広帯域にわたる定指向性コントロールと垂直指向角の変更が可能。同位相波面制御技術を採用し、残響時間の長い空間や暗騒音レベルの高い場所などで、明瞭度の高い拡声を実現。

■ Line array speaker
■ 8Ω
■ 750W
■ Drip-proof type
■ Black
■ Enclosure type: Closed type
■ Allowable input: Continuous pink noise: 250 W, Continuous program: 750 W
■ Rated impedance: 8 Ω
■ Output sound pressure level: 100 dB (1 W, 1 m)
■ Frequency response: 105 Hz to 20 kHz
■ Crossover frequency: 1.7 kHz
■ Directional angle: Horizontal: 100 °

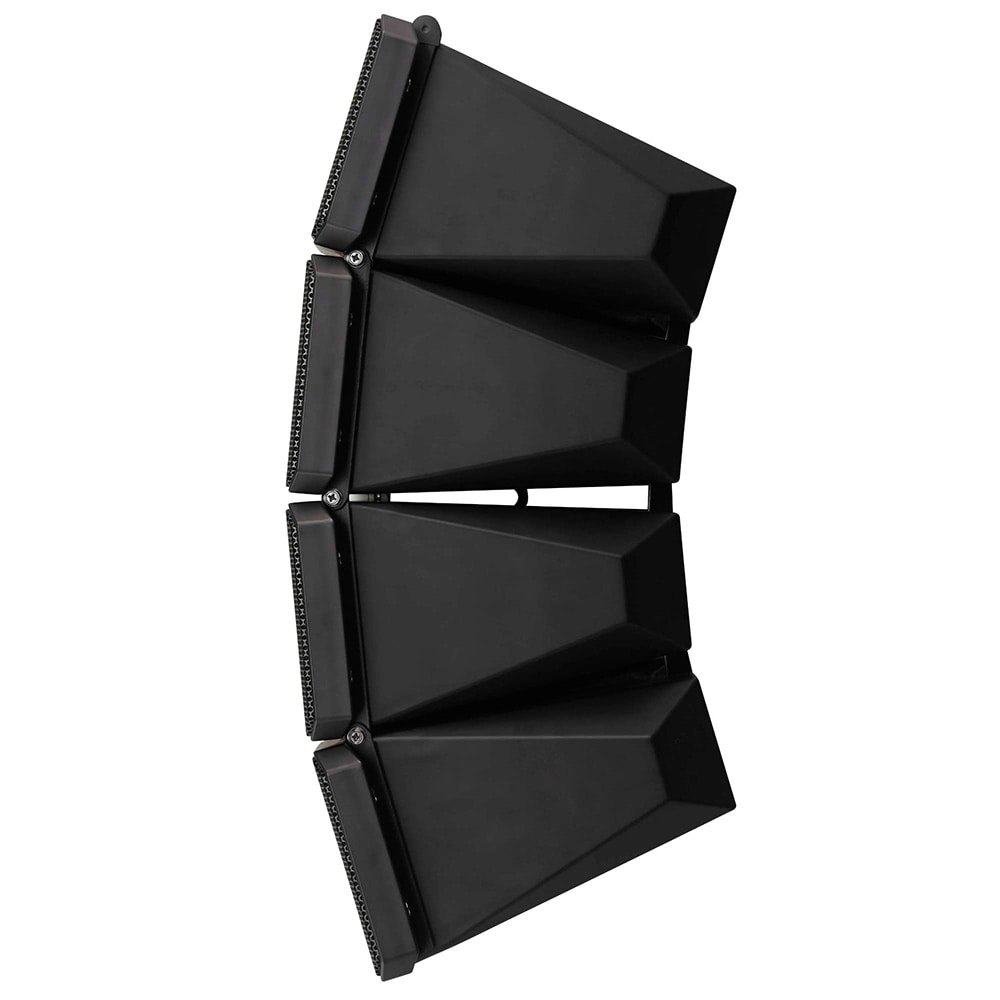

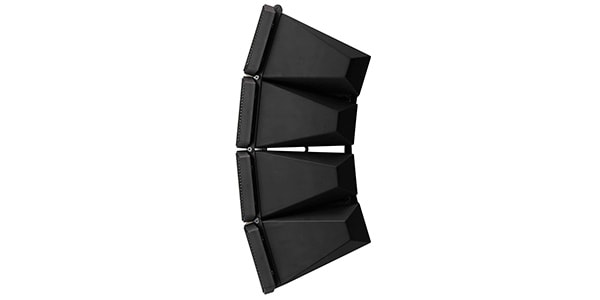

■ Vertical: Depends on the angle mode
■ Speaker used

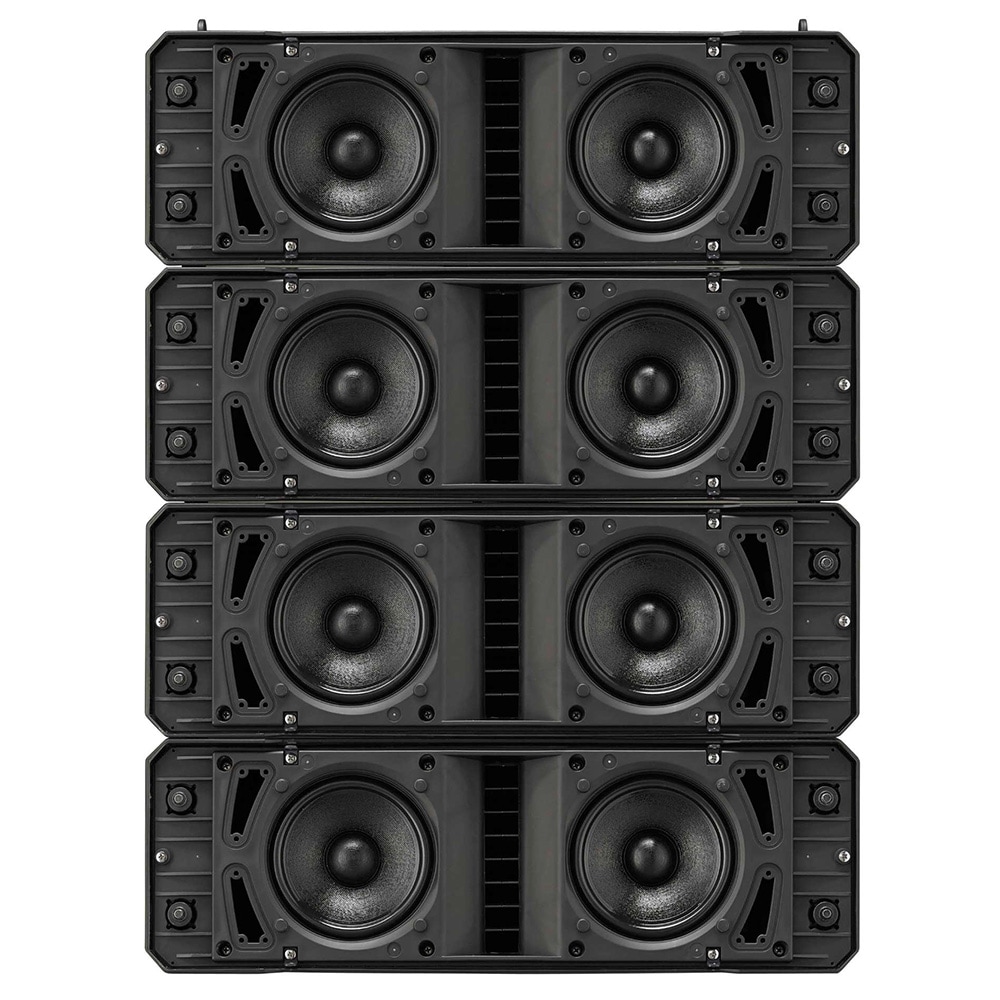

For low frequencies: 13 cm cone type x 8, high frequencies: Wavefront control horn + compression driver x 4

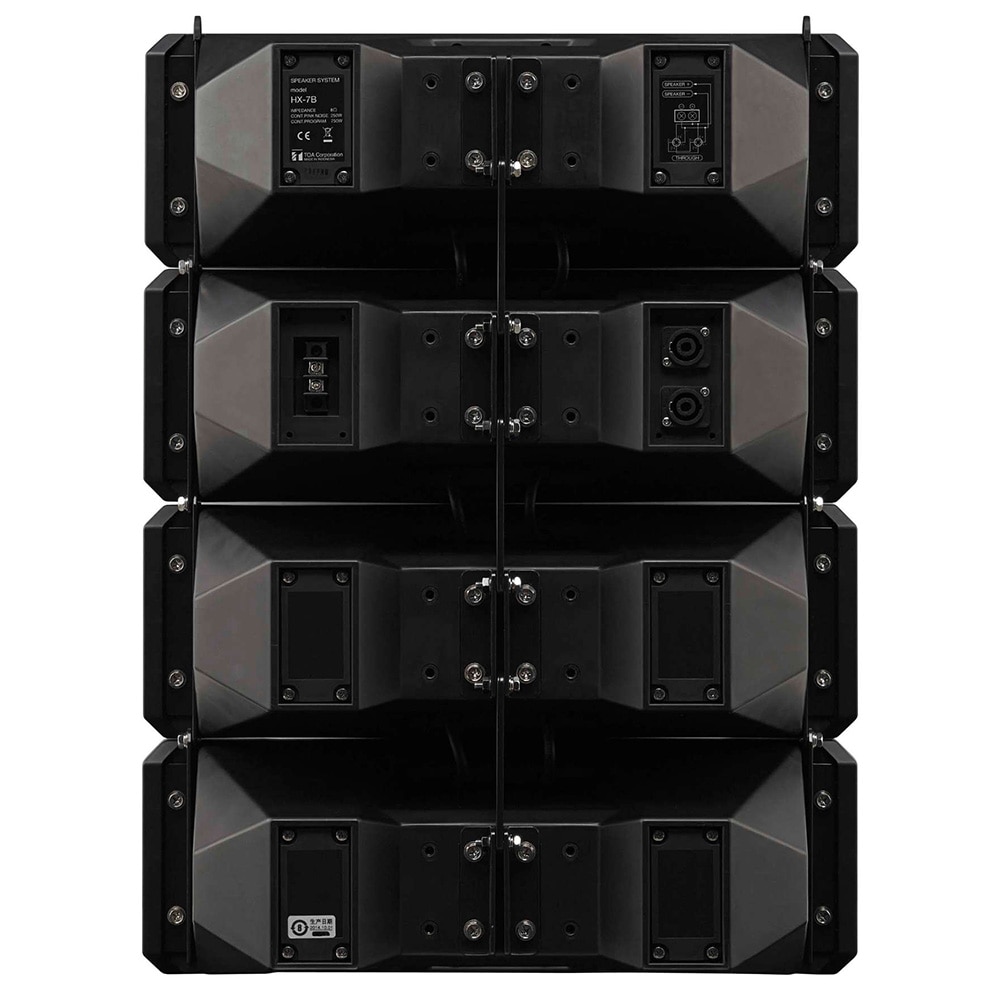

■ Input terminal: M4 screw terminal (with terminal cover), barrier interval 9 mm
■ Waterproof performance: IPX4 (However, install all speaker modules facing down)
■ Finish: Enclosure: Polypropylene black (Munsell N1.0 approximate color)
■ Punching net: Surface-treated steel plate, black (Munsell N1.0 approximate color), rust-proof coating
■ Size: 497 (W) x 664 (H) x 274 (D) mm
■ Weight: 30 kg
■ Accessories: Terminal cover, Terminal cover mounting screws x4, Rubber packing
■ Sold separately: Matching transformer: MT-200 *
■ Transformer mounting bracket: HY-MT7
■ Speaker mounting bracket: HY-TM7B-WP, HY-MS7B-WP, HY-60DB-WP, HY-CN7B-WP
