FOCUSRITE / PCIeR Card

FOCUSRITE のRedNet PCIeRカードは、極めて低いレイテンシーと冗長性イーサネット接続を備え、卓越した信頼性と高いシステムパフォーマンスを提供します。　安心のサウンドハウス3年保証付き！

■ Audio interface card

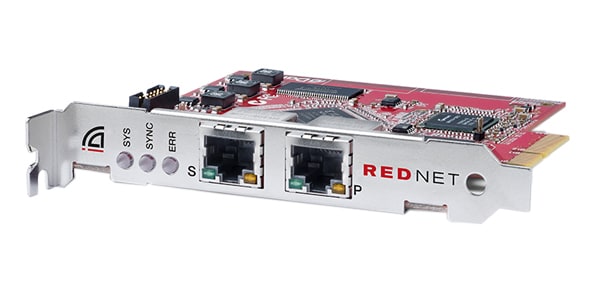

RedNet PCIe® cards combine extremely low latency and redundant Ethernet connections to provide exceptional reliability and high system performance. A card that can be installed in a standard PCIe slot for Windows or Mac provides up to 128 channels of input / output with a latency of only 3ms. The two RJ45 Gigabit Ethernet connectors automatically switch according to network conditions, maintaining the connection between the audio computer and the network.

■ Main features
・ Two Ethernet ports provide complete redundancy
・ Support 128 input / 128 output @ 96kHz
・ Supports 64 inputs / 64 outputs @ 176.4 / 192kHz
・ Dante network compatible
・ Supports up to 192kHz sample rate
・ Achieves 3ms AA round trip latency (DAW-Focusrite RedNet A-D / D-A)
Includes RedNet Control 2 software with powerful GUI and comprehensive remote control

* Overall latency varies depending on ASIO / Core Audio buffer size.
