audio technica / ATW-1101＋PRO35XcW

Variations

A wireless set that combines PRO35XcW, which has high thickness resistance and is suitable for brass instruments, with the ATW-1101 2.4 Ghz digital wireless system.

recommended item

CLASSIC PRO / CWS-24SS Wireless set for saxophone

限定特価 ¥23,800(incl. tax)

Digital wireless set for saxophone, stomp type, 2.4GHz

■ System specifications
・Operating radio band: 2.4GHz ISM band
・Audio dynamic range: 109dB
・Distortion rate: 0.05% or less
・Communication distance: 30m (when there is no interfering radio wave in line of sight)
・Operating temperature range: 0℃ to 40℃
・Audio frequency characteristics: 20-20,000Hz
・Audio sampling: 24bit/48kHz

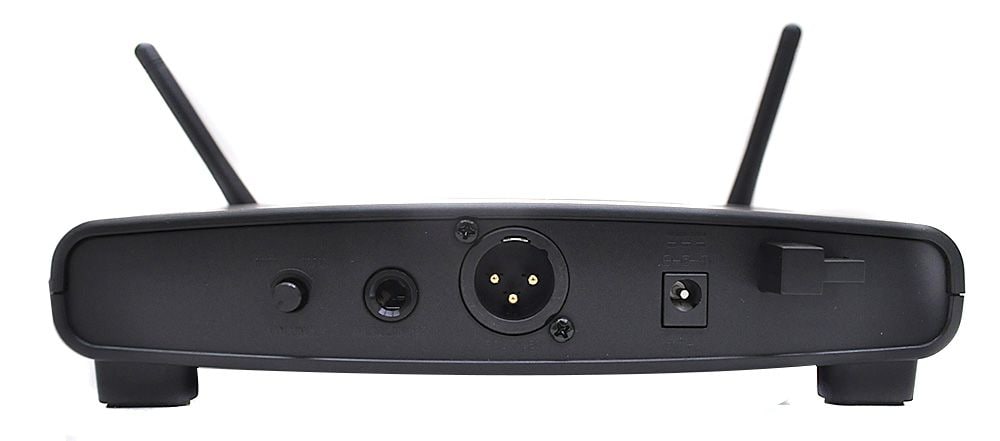

■ Receiver: ATW-R1100J
・Reception method: Automatic channel setting method
・RMaximum audio output level: 0 dBV (XLR 3-pin male, balanced), 6 dBV (φ6.3 mm monaural jack, unbalanced)
・Power: DC12V (use the included AC adapter, for domestic use only)
・External dimensions (excluding protrusions): Approx.H46.2 x W190 x D128.5mm
・Weight: About 290g

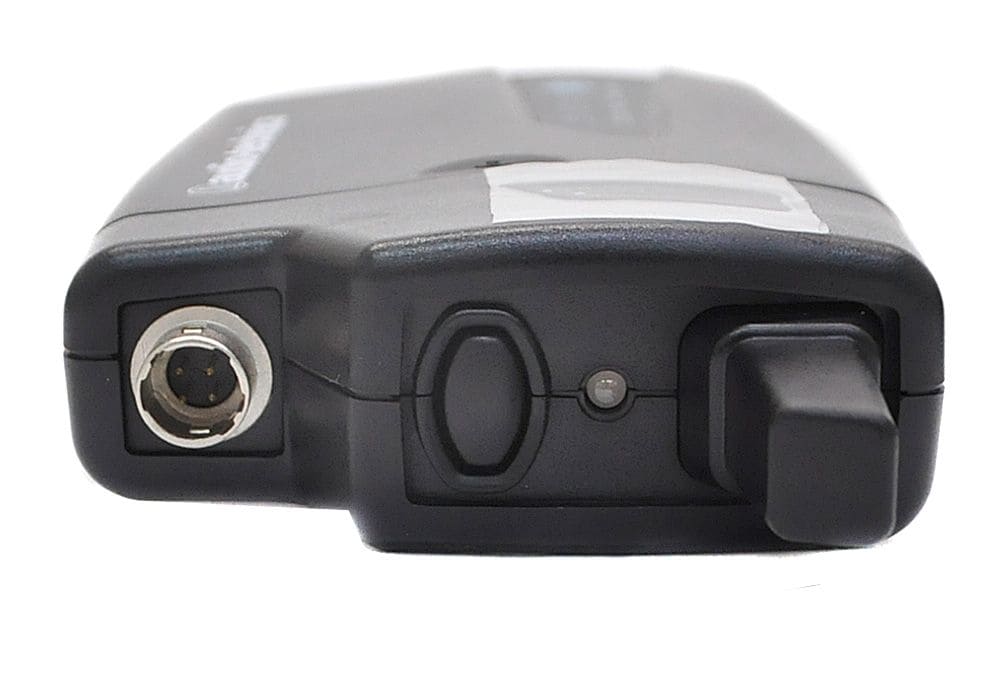

■ 2 piece type transmitter: ATW-T1001J
・Transmission output: 10mW
・Power supply: DC3V (AA alkaline batteries x 2 or AA nickel metal hydride batteries (1900mAh or more) x 2)
・Operating time: About 6 hours
*Operating time varies depending on the battery type and the ambient temperature.
・External dimensions (excluding protrusions): Approx.H107×W70.2×D24.9mm
・Weight (excluding batteries): Approx. 100 g

■ Accessories: AC adapter (for receiver)

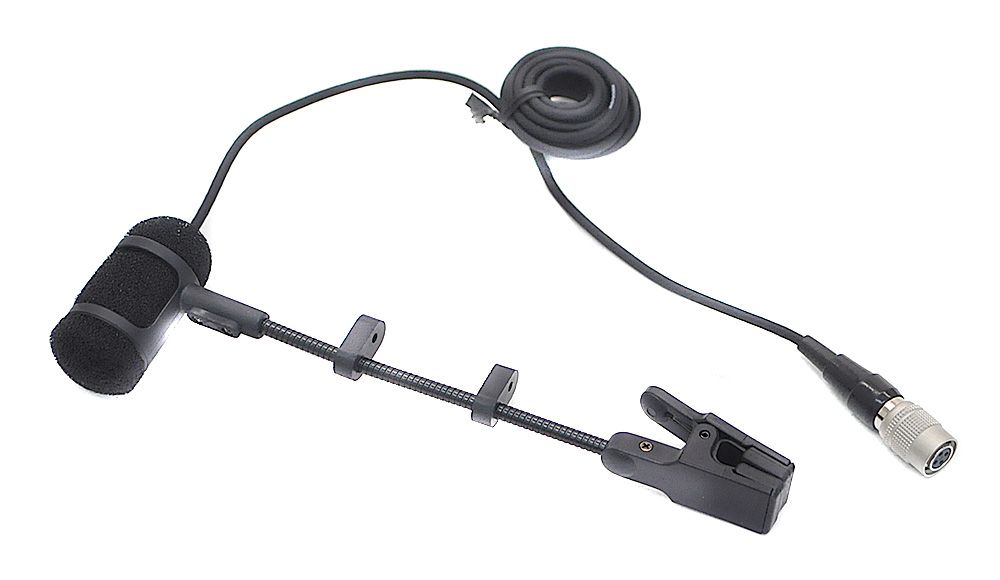

■ PRO35XcW
・Model: Back electret condenser type
・Directivity: Unidirectional
・Frequency response: 50 to 18,000Hz
・Sensitivity (0dB = 1V/Pa 1kHz): -54dB
・Maximum input sound pressure level (1kHz THD1%): 149dB S.P.L.
・SN ratio (1kHz 1Pa): 60dB or more
・Connector: HR10A-7P-4S
・Code: 1.4m
・Finish: Black matte baking finish
・Weight: 7.0g (microphone only)
・Accessories: Microphone holder (AT8418), windscreen, tie clip
