API / 3124V

This compact microphone preamplifier from API offers variable output level control and switchable 3:1 output transformer selection. The 3124V boasts a maximum gain of 65dB, allowing for amplification of low-level inputs such as guitars and basses without the need for transformers or direct box matching.

■ Microphone Preamplifier

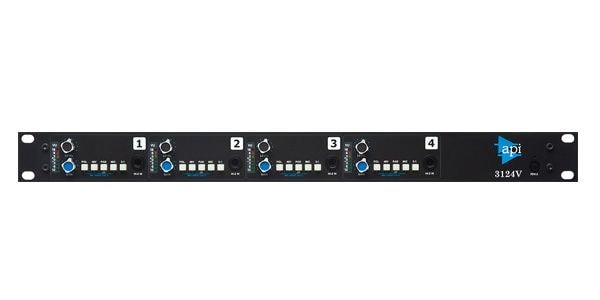

Like the API 3124+, the 3124V is a high-quality, compact 4-channel microphone preamplifier. It features the RE-115 K microphone input transformer and proprietary output transformer found in all API microphone preamps and the API product line. Furthermore, the 3124V offers variable output level control and switchable 3:1 output transformer selection. It is equipped with 48V phantom power and a -20dB pad switch that affects both microphone and Hi-Z inputs.

The 3124V boasts a maximum gain of 65dB. Additionally, the Hi-Z front panel inputs are directly connected to op-amps, allowing for amplification of low-level inputs such as guitars and basses without the need for transformers or direct box matching. These Hi-Z inputs can take on a high level of +20dBu, making them ideal for keyboards and other high-level devices.

■Main Features

? API 2520 Op-amp

? Microphone/Line Preamp

? 4 x XLR Microphone Inputs

? 3:1 Output Transformer Selection

? Variable Output Level Control

? 48V Phantom Power Switch

? Microphone/Line Switch

? Polarity Reversal Switch

? 20dB Pad on Front Panel

? 4 x 1/4-inch Unbalanced Phone Jacks (Hi-Z Compatible)
