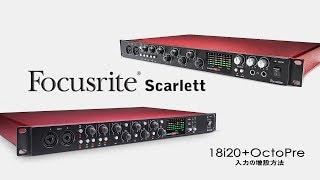

FOCUSRITE / Scarlett OctoPre

This is a high-quality mic preamplifier ideal for extending the input of an audio interface equipped with an ADAT terminal.

■ Microphone preamplifier

Scarlett OctoPre also has the function of eight extended inputs. This is the best choice for expanding the input channels of other ADAT-based interfaces, including the Focusrite Scarlett audio interface, and the best choice for creating an environment with easy connections.

■ Main features
◎ 8 second generation Scarlett preamps
The Scarlett OctoPre features 8 channels of 2nd generation Scarlett mic-to-balanced line inputs and supports 24-bit up to 192kHz conversion and 109dB dynamic range.

◎ Dual front panel instrument input
The Scarlett OctoPre handles high-powered guitar pickups with high headroom and has two front panel instrument inputs for easy access.

◎ Abundant headroom and input pad
All inputs of the Scarlett OctoPre have high headroom. In addition, each input channel is equipped with a PAD switch, making it possible to properly track any input such as guitar, keyboard, vocals and drums.

◎ Output corresponding to stand-alone
The eight balanced line outputs, which directly source the input, are also available for applications such as recording to a DAW via digital ADAT output while using the Scarlett OctoPre live.

・ What is ADAT?
ADAT is a simple and easy way to extend the analog input. ADAT transmits up to eight channels of audio using inexpensive optical cables. Just connect the "ADAT output" of OctoPre to the "ADAT input" of the audio interface and set the sample rate and clock source to expand the input / output of the audio interface. ADAT input is available on many Focusrite and third-party interfaces.

■ Specification
Supported sample rates
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

・ Microphone input
Frequency response: 20Hz-20kHz + 0.5 / -1.5dB
Dynamic range: 109dB (A weight)
THD + N: <0.001%
Noise EIN: -127 dBu
Maximum input level (no pad): + 8dBu
Maximum input level (with pad): + 16dBu
Gain range: 50dB
Input impedance: 3kΩ

・ Line input
Frequency response: 20Hz-20kHz + 0.5 / -1.5dB
Dynamic range: 109dB (A weight)
THD + N: <0.002%
Maximum input level: + 22dBu
Gain range: 50dB
Input impedance: 49kΩ

・ Instrument input
Frequency response: 20Hz-20kHz + 0.5 / -1.5dB
Dynamic range: 108 dB (A weight)
THD + N: <0.01%
Maximum input level: + 13dBu
Gain range: 50dB
Input impedance: 1MΩ

・ Line output
Maximum output level (0 dBFS): +16 dBu @ 0 dBFS, or ADAT output not used> 21 dBu
THD + N: <0.001%
Output impedance: 136Ω (balance)

・ Size
48.2 (W) x 28.6 (D) x 4.45 (H) cm

* Rack ears cannot be removed
