CLASSIC PRO / CWR242 wireless receiver

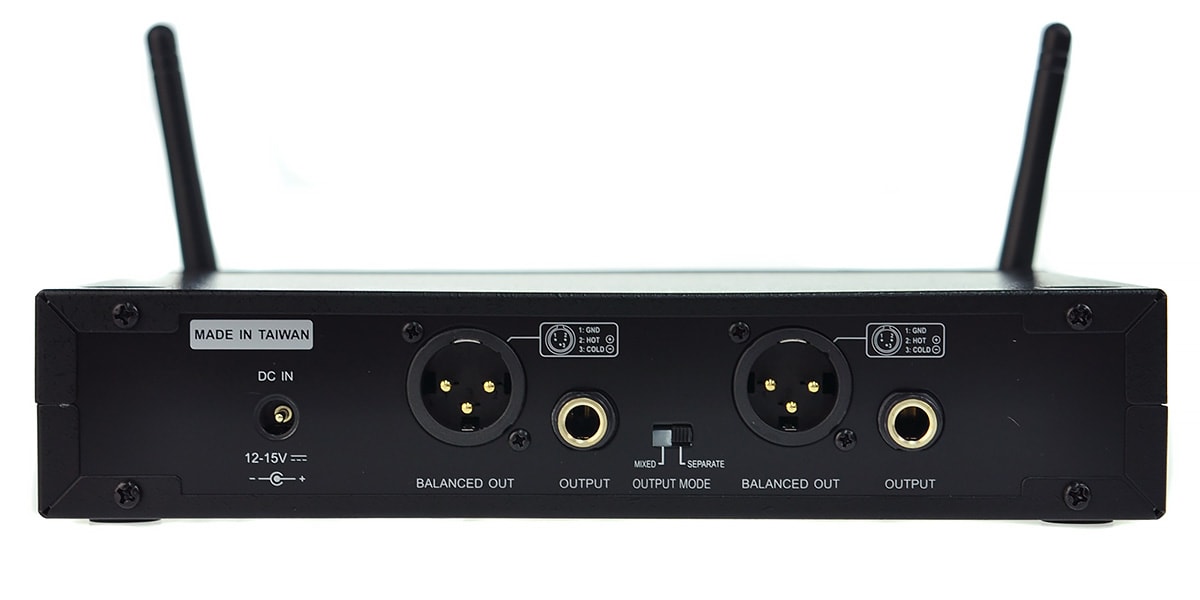

Dual channel receiver for Classic Pro 2.4Ghz digital wireless series. Equipped with balanced and unbalanced outputs. The output level can be adjusted from -10 to + 20dB.

■ Wireless receiver
・ Dual channel
・ Transmission frequency: 2.4GHz band ISM band
・ Display: Graphic OLED
・ Receive mode: True diversity
・ Frequency characteristics: 20-20KHz
・ Frequency stability: ± 0.005%
・ THD:> 0.1%, @ 1 kHz
・ Latency: 4.0ms
・ Sensitivity: -95 dBm
・ SN ratio: 115 dB (A)
・ Output level: -10 to +20 dB
・ Output terminal: XLR & 6.3 mm (1/4")
・ Antenna: 2 x 50 Ω (fixed type)
・ Adapter: 12-18V DC / 300mA
・ Dimensions: 210 × 180 × 44mm
・ Weight: 750 g

* The MIX output is valid only for the phone terminal.
