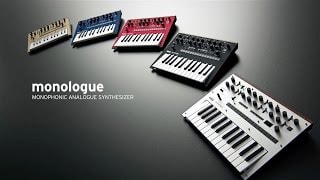

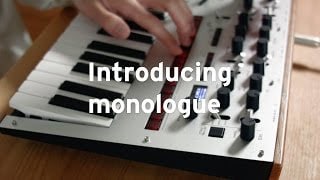

KORG / MONOLOGUE-BK　アナログシンセサイザー

A powerful monophonic synth with a beauty and madness that tried a new approach to the sound side while being based on the minilogue!

◎A monophonic analog synthesizer circuit redesigned based on the minilogue.
◎Fully programmable, 100 programs can be stored in memory.
◎A 16-step sequencer with dramatically improved motion sequences.
◎Micro tuning that creates the temperament uniquely.
◎Oscilloscope function that visually displays the waveform.
◎Battery-powered analog.
◎A tough and stylish body made of aluminum and wood.
◎You can session with other groove machines by syncing.

■ Keyboard: 25 keys (slim keyboard, velocity compatible)
■ Sound source: analog sound source
■ Program: 100 (80 preset programs and 20 user programs at factory shipment)
Each program includes micro tuning and sequence data settings
■ Main synth parameters
MASTER: DRIVE
VCO1: WAVE (SAW / TRIANGLE / SQUARE), SHAPE
VCO2: OCTAVE, WAVE (SAW / TRIANGLE / NOISE), SYNC/RING, PITCH, SHAPE
MIXER: VCO1, VCO2
FILTER: CUTOFF, RESONANCE
EG: TYPE (AD / AGD / G), ATTACK, DECAY, INT, TARGET (PITCH / PITCH 2 / CUTOFF)
LFO: WAVE (SAW / TRIANGLE / SQUARE), MODE (FAST / SLOW / 1-SHOT), RATE, INT, TARGET (PITCH / SHAPE / CUTOFF)
■ Sequencer: 16-step monophonic sequencer
Motion sequence of up to 4 parameters
■ Micro Tuning: 32 (20 preset tunings and 6 user scales, 6 user octaves)
Keys for each micro tuning can be set/tuned
■ Controls: 23 dedicated panel controls with instant access to parameters
A slider that changes different parameters for each program
■ Display: Organic EL display with oscilloscope function
■ Input/output terminal:
Headphone jack (stereo phone jack)
OUTPUT jack (monaural phone jack)
AUDIO IN terminal (monaural phone jack)
SYNC IN terminal (3.5mm mini jack)
SYNC OUT terminal (3.5mm mini jack)
MIDI IN connector
MIDI OUT terminal
USB B terminal
■ Power supply: 6 AA batteries (alkaline or nickel hydrogen) or AC adapter (DC9V) KA350 (sold separately)
Battery life: About 6 hours (when using AA alkaline batteries)
About 8 hours (when using AA Ni-MH battery (2000mAh))
■ Power consumption: 2.5 W
■ External dimensions: 350 (W) x 276 (D) x 76 (H) mm
■ Mass: 1.7 kg
■ Color: Black
■ Accessories: 6 AA alkaline batteries for operation check
■ Optional accessories: AC adapter KA-350, sink cable SQ-CABLE-6
