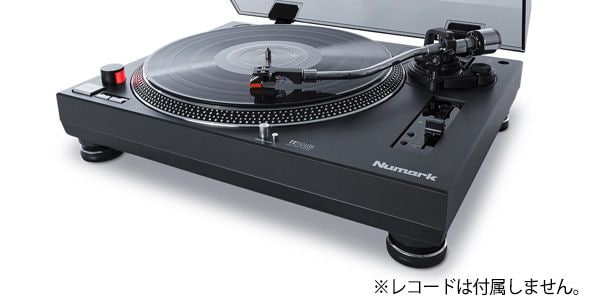

NUMARK / NU-TTS-015

Equipped with a quartz-controlled direct drive motor that delivers stable rotation accuracy and torque suitable for scratching, an S-shaped tonearm that provides excellent record groove tracking accuracy, and a ±10% pitch adjustment slider, this direct drive USB turntable delivers ample performance for DJing with vinyl records or playing with DVS using DJ software.

With a built-in phono equalizer, it can be directly connected to the line input terminal of your stereo system. The headshell and cartridge are pre-installed, so you can easily enjoy your vinyl records without any complicated adjustments.

■Turntable
■USB Output

■Features
・Quartz-controlled direct-drive motor
・Starting torque: 2.0 kg/cm
・High-precision, stable die-cast aluminum platter
・Wow and flutter: < 0.09%
・S-shaped tonearm for excellent record groove tracking accuracy
・Headshell and cartridge included
・Pitch adjustment fader and pitch bend control for versatile mixing
・Pitch adjustment range: ±10%
・Tonearm lift lever
・33-1/3 and 45-turn compatible
・USB terminal for digital output to a computer or iOS device
・3.5 mm fader start input terminal
・Direct-mounted stereo line output cable (RCA terminal)

■Specifications
[Tone Arm]
Type: 4-bearing S-shaped tonearm
Arm height adjustment range: 0-6mm
Cue system: Lifting lever, arm rest & clip
Counterweight: 115g (0.0-3.0g scale)
Effective length: 230mm
Overhang: 15.2mm
Offset angle: 22°
Vertical friction: 7mg
[Mechanism]
Motor: Quartz direct drive
Platter: Aluminum die-cast, diameter 332mm, 740g
RPM: 33-1/3, 45 rpm
Pitch Adjustment Range: ±10%
Rumble: -40dB (IEC 98A Unweighted), -55dB (IEC 98A Weighted)
Wow and Flutter: < 0.09%
Starting Torque: 2.0kg/cm
Constant Torque: 1.2kg/cm
Starting Time: < 0.7 seconds
Brake System: Electronic Brake
[General]
Power Consumption: 15W
Size: Approx. 450 x 152 x 352mm (W x H x D)
Weight: Approx. 7.5kg
*Specifications are subject to change without notice. Thank you for your understanding.
